Siemens 1FT6044-4AF71-3AB1 Servo Motor
Gebraucht
Auf Lager1 EinheitVersandbereit
SERVO MOTOR
Siemens 1FT6044-4AF71-3AB1 servo motor delivers 4.3 Nm rated torque and operates at 327 V with IP65 protection, ideal for precise and high-speed industrial motion systems.1FT6044-4AF71-3AB1327V7700AutomationControlDriveEncoderHigh-SpeedI-2048IndustrialIP65MotionmotorrpmServoSiemens
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

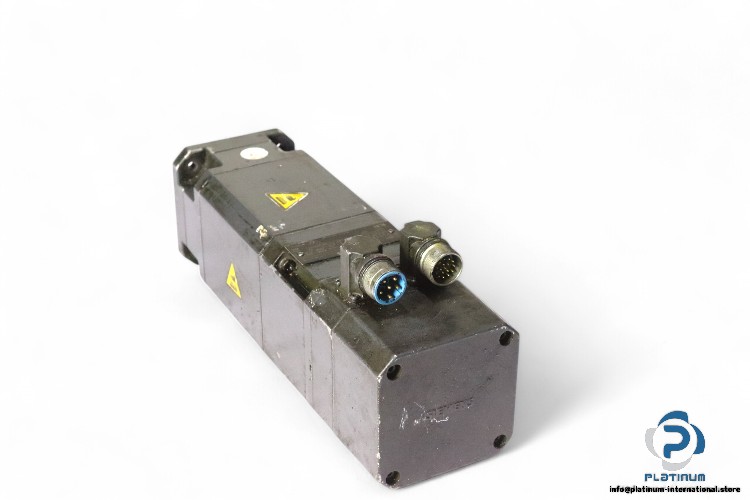

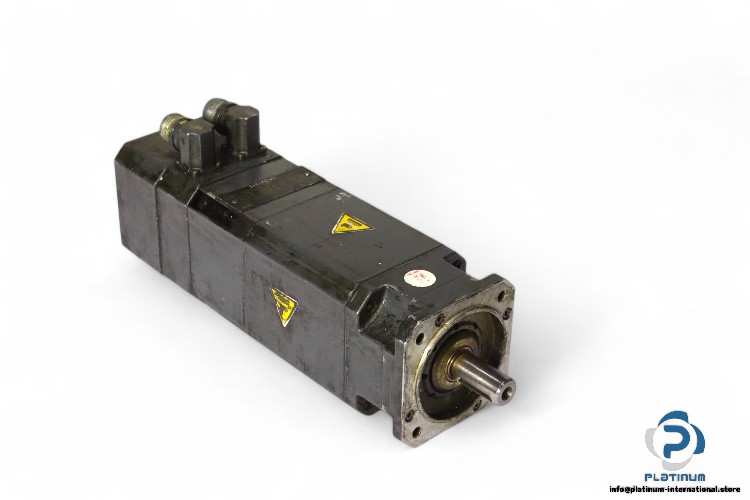

SIEMENS 1FT6044-4AF71-3AB1 SERVO MOTOR
The Siemens 1FT6044-4AF71-3AB1 is a high-performance servo motor designed for demanding industrial automation tasks. With a compact footprint and integrated encoder, it offers excellent speed and torque stability, making it ideal for precise motion control applications.

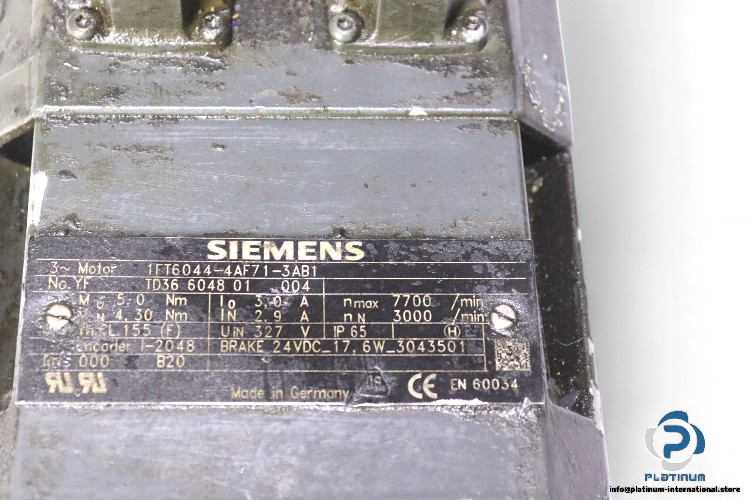

Manufacturer: SIEMENS
Type: Servo Motor
Model: 1FT6044-4AF71-3AB1
Part No.: TD36 6048 01 004
Technical Specifications
- Supply Voltage: 327 V
- Stall Torque: 5 Nm
- Rated Torque: 4.3 Nm
- Stall Current: 3 A
- Rated Current: 2.9 A
- Max. Speed: 7700 rpm
- Rated Speed: 3000 rpm
- Protection Class: IP 65
- Brake Voltage: 24 VDC
- Brake Power: 17.6 W
- Thermal Class: F
- Attached with: I-2048 ENCODER
