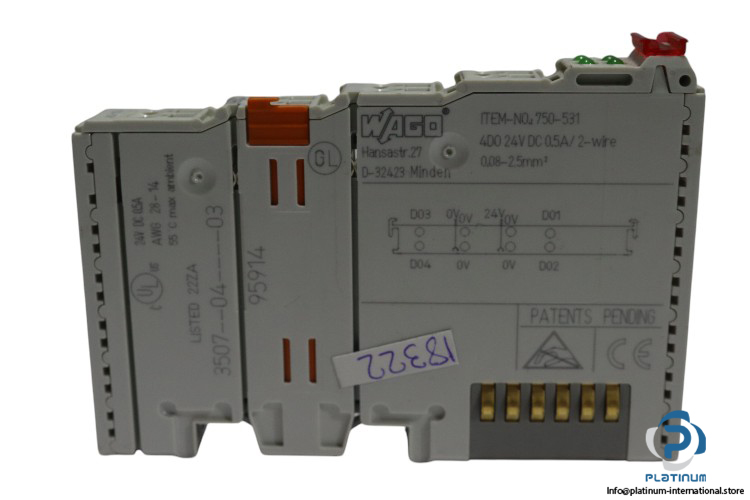

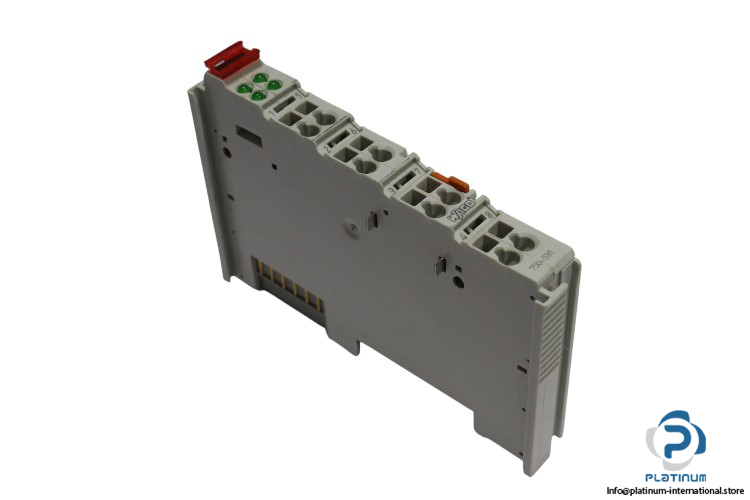

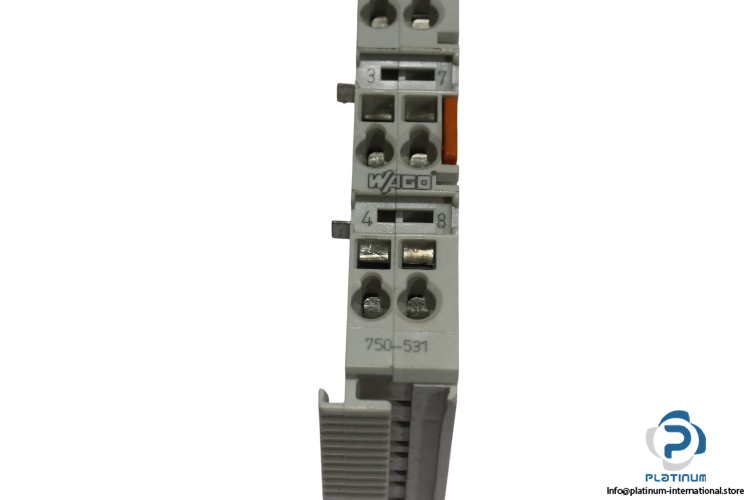

WAGO 750-531 Digital Output Module

The WAGO 750-531 is a 4-channel digital output module designed for precise and protected switching of DC loads in industrial automation systems. With high-side switching output and short-circuit protection, it supports resistive, inductive, and lamp loads. This compact module features 2-wire actuator connections and is ideal for integration into distributed I/O systems using a 5 VDC system supply.

• Manufacturer: WAGO
• Type: Digital Output Module
• Model: 750-531

Technical Specifications:

• Signal Type: Digital (24 VDC)
• Number of Digital Outputs: 4
• Total Channels: 4
• Isolation Voltage: 500 V
• Actuator Connection: 4 x (2-wire)
• Output Characteristic: High-side switching
• Output Current per Channel: 0.5 A
• Short-Circuit Current: 1.7 A (protected)
• Load Type: Resistive, inductive, lamp
• Supply Voltage (System): 5 VDC (via data contacts)
• Current Consumption (5 V System): 10 mA
• Color: Light gray
• Housing Material: Polycarbonate, Polyamide 6.6
• Protection Type: IP20
• Ambient Temperature (Operation): 0 / 55 °C
• Dimensions (H x W x D): 100 x 12 x 69.8 mm

Applications:

• PLC and automation systems
• Resistive and inductive load switching
• Factory automation panels
• Distributed control environments
