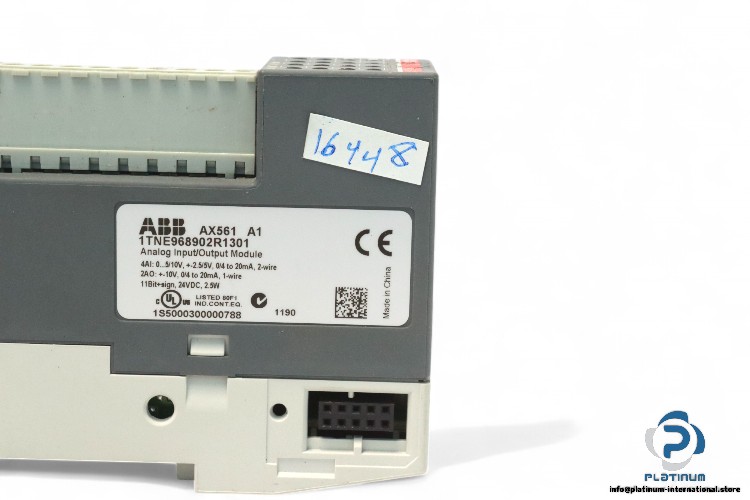

ABB AX561 Analog Input/Output Module
Fabricante: ABB Tipo: MÓDULO DE ENTRADA/SALIDA ANALÓGICA Modelo: AX561 Nº de pieza: 1TNE 968 902 R1301
Manufacturer: ABB
Type: ANALOG INPUT/OUTPUT MODULE
Model: AX561
Part no.: 1TNE 968 902 R1301
Connections: Terminal 19 for L+ (+24 V DC) and terminal 20 for M (0 V)
Wiring method: Spring/screw terminals
Rated voltage: 24 V DC
Degree of protection: IP 20
Current consumption: 0.14 A
power dissipation within the module Max.: 4.9 W
Number of channels per module (analog inputs): 4 individually configurable voltage or current inputs
Number of channels per module (analog outputs): 2 configurable voltage or current outputs
Mounting with screws: M4
Fastening torque: 1.2 Nm
Operation Temperature:
0 … 60 °C (horizontal mounting of modules)
0 … 40 °C (vertical mounting of modules)
