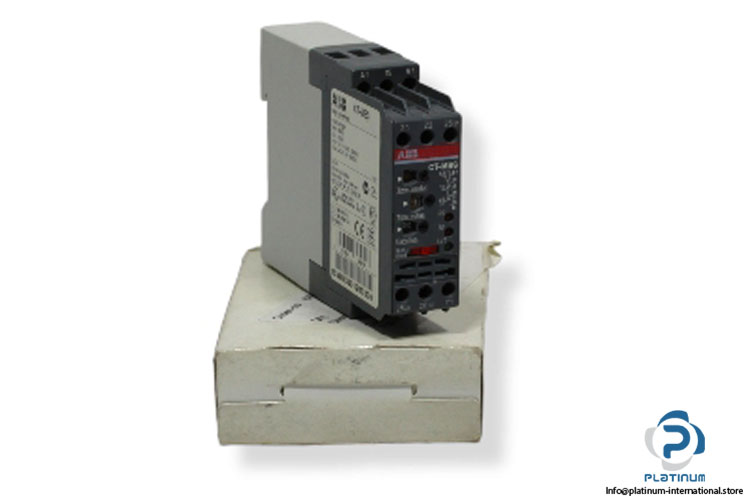

ABB CT-MBS Timer Relay
Nuevo
En stock1 unidadListo para enviar
Relé temporizador ABB CT-MBS multi-rango con amplio rango de tensión de entrada, rango de tiempo de 0,05 s a 300 h, contactos DPDT y protección IP20 para automatización industrial.
ABBAutomationContactControlCT-MBSDpdtIndustrialIP20MultiprogrammableProtectionRangeRelayTimevoltagewide
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

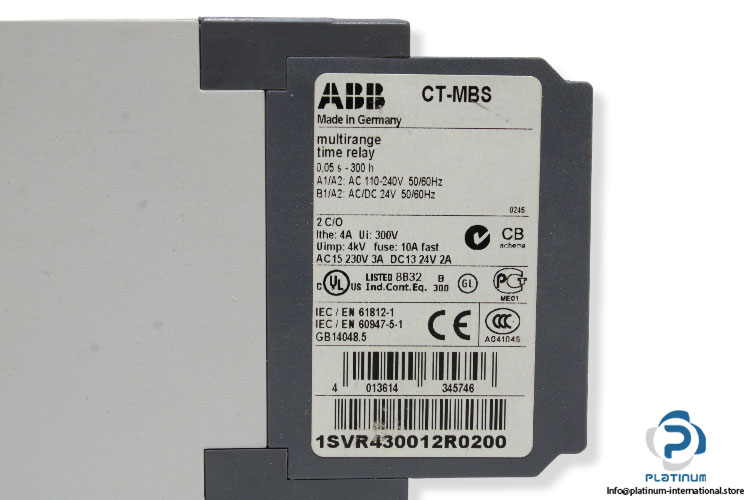

ABB CT-MBS Multi Range Time Relay
The ABB CTMBS is a high-quality multi range time relay engineered for precise control and reliable performance in industrial automation systems. Designed with wide voltage compatibility and durable construction, it offers flexibility and efficiency in timing applications.
Manufacturer: ABB
Type: Multi Range Time Relay
Model: CT-MBS
ID No.: 1SVR430012R0200
| Rated Supply Voltage | 24 / 240 V AC , 24 / 48 V DC |
| Rated Operational Current | (AC-15, 230 V) 3 A , (DC-13, 24 V) 2 A |
| Frequency | 50 / 60 Hz |
| Rated Impulse Voltage | 4 kV |
| Time Range | 0.05 s / 300 h |
| Contact | DPDT 2 Change Over (CO) |
| Protection Class | IP20 |
| Operating Temperature | -25 / 60 °C |
| Dimension | 85.6 x 22.5 x 103.7 mm |
