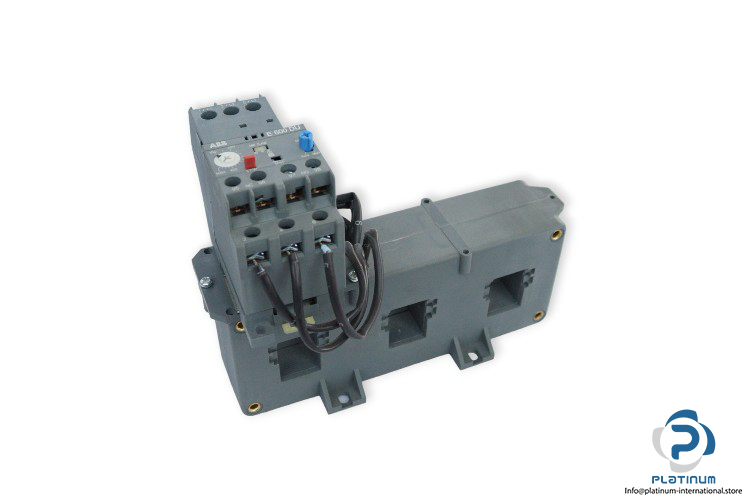

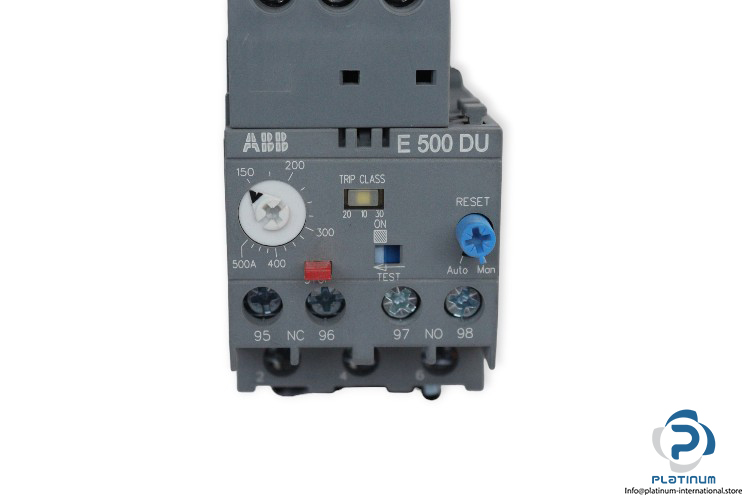

ABB E500DU-500 Overload Relay

Manufacturer: ABB
Type: Overload Relay
Model: E500DU500
Alternative Model: 1SAX711001R1101

Rated Operational Voltage: 600 V AC/DC
Rated Operational Current: 500 A
Frequency: 50 … 60 Hz
Sitting Range: 150 … 500 A
Rated Impulse Voltage (Uimp): 6/8 kV
Number of Poles: 3-Pole
Auxiliary Contact: 2-Pole 1 Normally Open (NO) + 1 Normally Closed (NC)
Protection Class: IP20
Ambient Temperature: -25 … 70 °C
Dimensions: 120 x 192 x 152.1 mm
