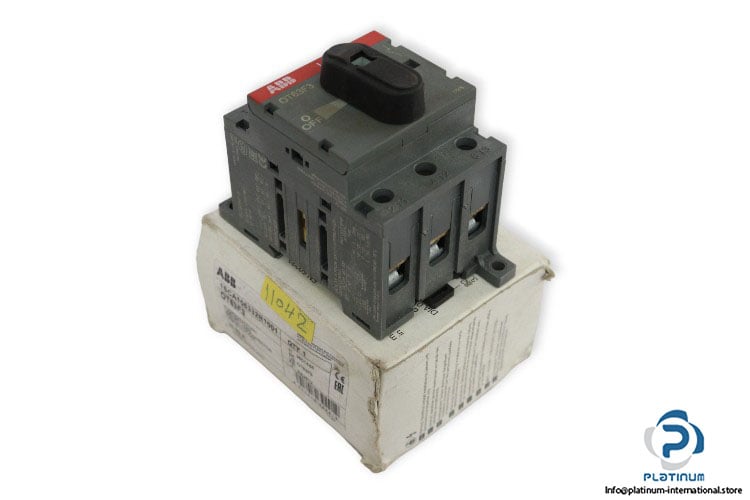

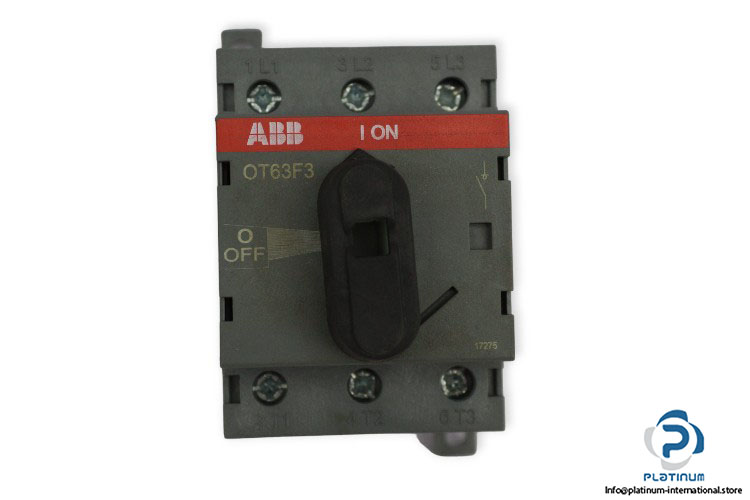

ABB OT63F3 Disconnector Switch

Manufacturer: Abb
Type: Disconnector Switch
Model: OT63F3

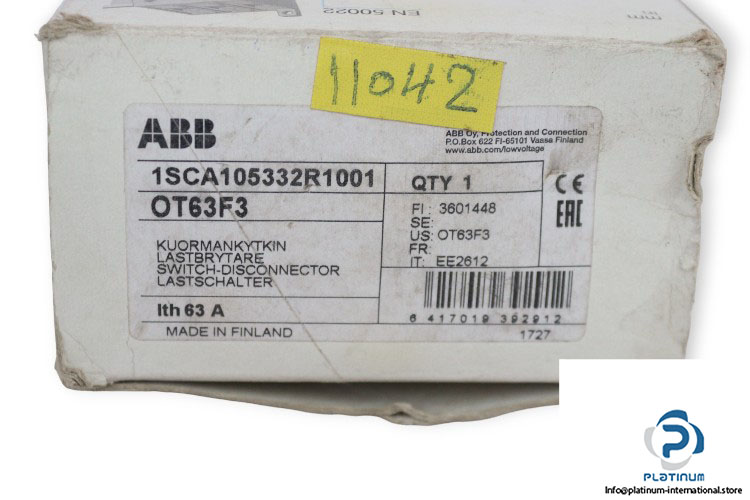

Product No.: 1SCA105332R1001

Rated Insulation Voltage (Ui): 750 V
Conventional Free-air Thermal Current (Ith): 63 A
Frequency: 50 … 60 Hz
Rated Impulse Withstand Voltage (Uimp): 8 Kv
Rated Operational Current AC-22A (Ie):
(415 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie):
(415 V) 63 A
(500 V) 45 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe):
(220 … 240 V) 11 kW
(400 … 415 V) 22 kW
(500 V) 22 kW
(690 V) 15 kW
Power Loss: at Rated Operating Conditions per Pole 2.8 W
Maximum Operating Voltage UL/CSA: 600 V AC
Current Rating: 60 A
Pollution Degree: 3

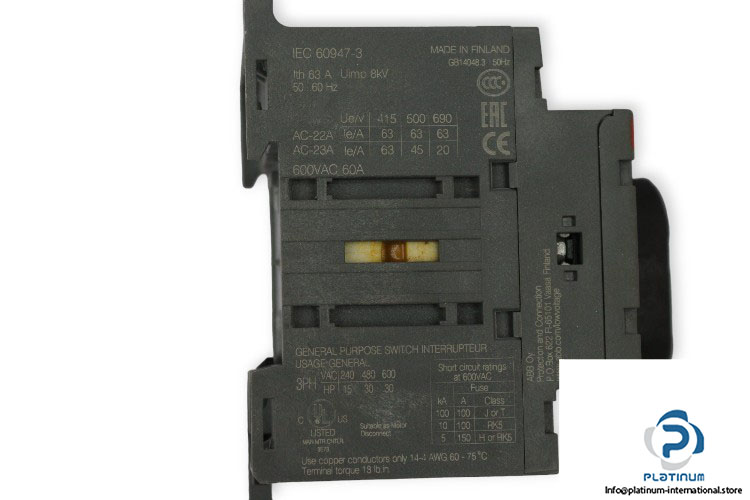

Standard: IEC 60947-3
No. of poles: 3
Degree of Protection: Front IP20
Mounting Type: Base mounting
Terminal Type: Screw Terminals
Dimensions: 52.5 x 91.5 x 72.5 mm
