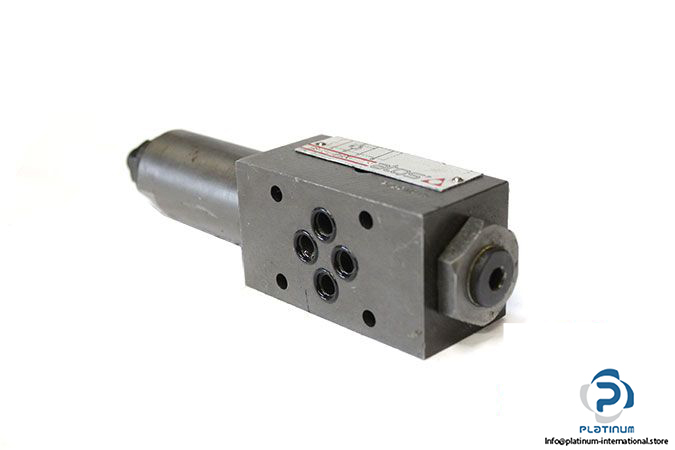

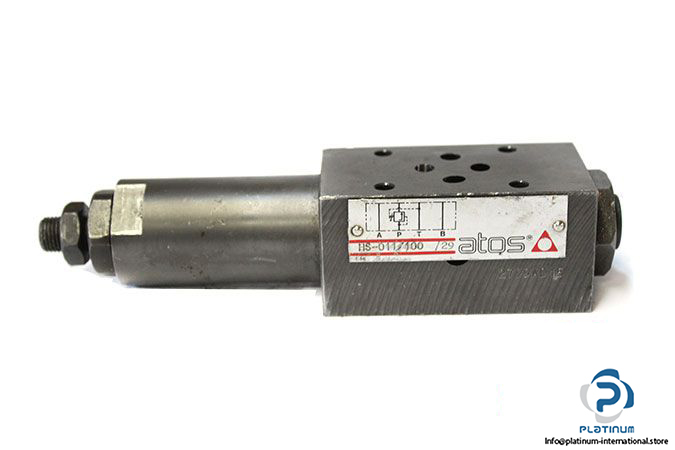

Atos HS-011/100 /29 Modular Sequence Valve

Manufacturer: ATOS

Type: Modular Sequence Valve

Model: HS-011/100 /29

Size: 06

Pressure Range: 20-100 bar

Ambient Temperature Range: –20 …. +70 ^oC

Maximum Inlet Pressure:350 bar

Maximum Pressure on Port T : 160 bar

Maximum Flow Rate: 40 l/min

Hydraulic Fluid Temperature Range: –20 …. +60 ^oC

Viscosity Range: 15 … 100 mm²/s

Connection: Sup-plate

Weight: 1.39 kg
