Balluff BTL127W Linear Position Sensor
Sensor de posición lineal magnetoestrictivo Balluff tipo varilla con resolución de 1 µm, interfaz SSI y carcasa de acero inoxidable. Diseñado para un retorno de posición preciso en la automatización industrial y sistemas hidráulicos. Recomendación: Ideal para aplicaciones de control de movimiento de alta precisión que requieren una medición de posición confiable y libre de mantenimiento.

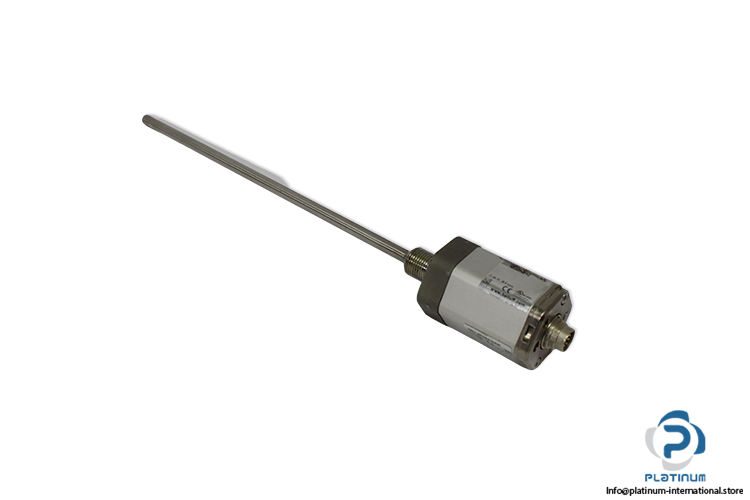

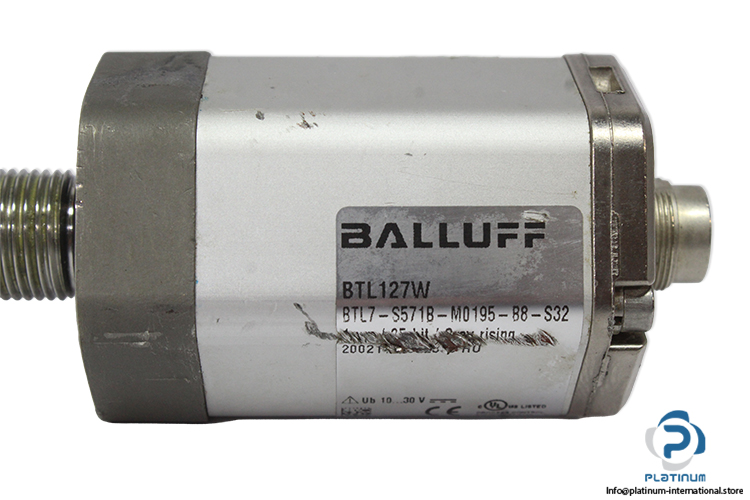

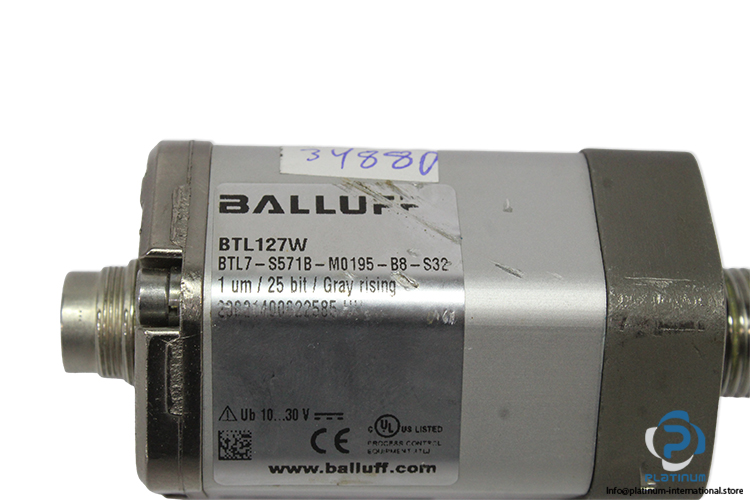

Balluff BTL7-S571B-M0195-B8-S32 Magnetostrictive Linear Position Sensor
The Balluff BTL7-S571B-M0195-B8-S32 is a high-precision magnetostrictive linear position sensor designed for accurate position measurement in demanding industrial automation systems. With micrometer-level resolution and a robust stainless-steel construction, this rod-style sensor provides reliable and repeatable position feedback for hydraulic cylinders, automation machinery, and motion control applications.
Manufacturer: Balluff
Type: Magnetostrictive Linear Position Sensor
MNR: BTL7-S571B-M0195-B8-S32
Model: BTL127W
Code: 20801400022585
| Operating Voltage | 10“30 V DC |
| Resolution | 1 µm |
| Signal Resolution | 25 bit |
| Measuring Length | 195 mm |
| Interface | SSI |

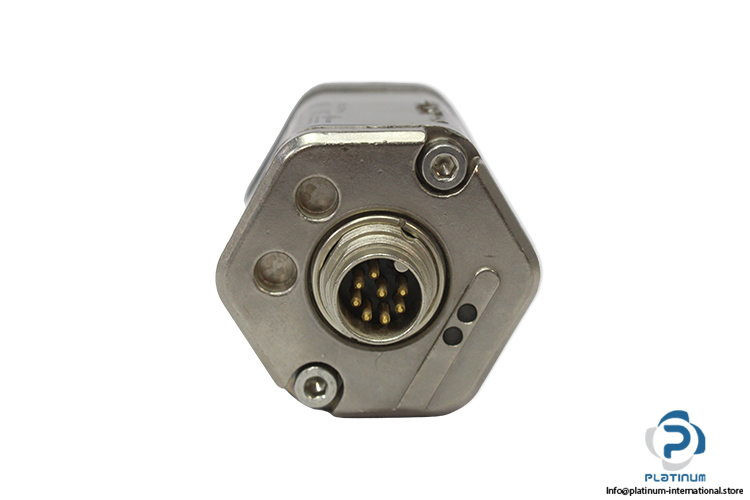

| Connector Type | 8-pin connector |
| Sensor Type | Rod-style linear sensor |
| Ambient Temperature | -40...85 °C |
| Mechanical Configuration | Fastening M18 threads |
| Housing Material | 1.4404 stainless steel |
| IP Rating | IP69K |
