Baumer GI341.Z07 REV.02 Incremental Encoder
Usado
En stock2 unidadesListo para enviar
299,99$
Incremental Encoder
IVO BAUMER GI341.Z07 REV.02 with solid shaft, synchro flange, 58 mm size, 14 mm shaft diameter, 1024 pulses per revolution, 5 VDC supply, IP54 protection, and max speed of 6,000 RPM.10245BaumerEncoderFlangeGI341GI341.Z07HighIncrementalIndustrialIP54IVOPPRREV.02SeriesshaftSolidSpeedSynchroVDC
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

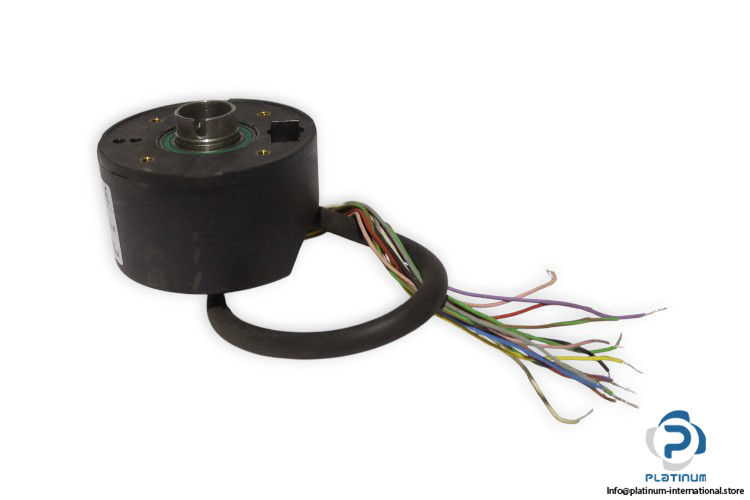

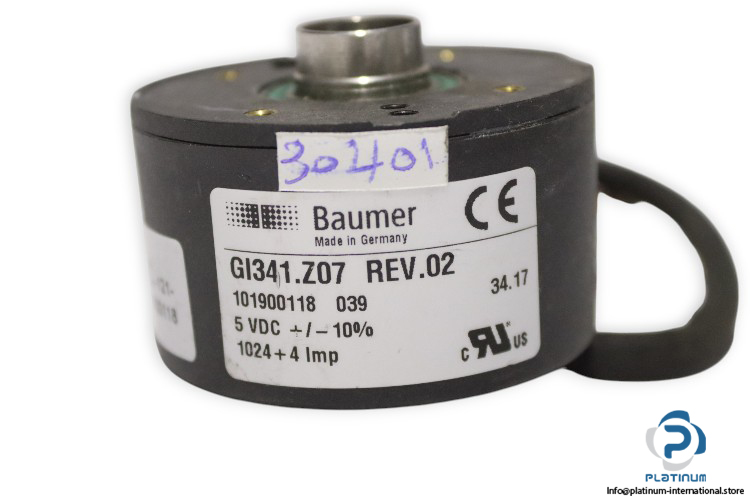

IVO BAUMER GI341.Z07 REV.02 Incremental Encoder
The IVO BAUMER GI341.Z07 REV.02 is a precision incremental encoder designed for industrial automation systems. With a solid shaft and synchro flange, it delivers accurate feedback, high reliability, and durable performance in demanding applications.
Manufacturer: IVO BAUMER
Type: Incremental Encoder
Model: GI341.Z07 REV.02
Part No.: 101900118 039 34.17
| Series | GI341 |
| Flange Type | Synchro Flange |
| Shaft Design | Solid Shaft |
| Size (Flange) | 58 mm |
| Shaft Diameter | 14 mm |
| Resolution | Max. 1024 Pulses Per Revolution |
| Voltage Supply | 5 VDC |
| Max. Output Current | 60 mA |
| Max. Speed | 6,000 RPM |
| Housing Material | Carbon-Fiber Reinforced Polyamide |
| Electrical Connection | Cable 1m, Axial |
| Protection Class | IP 54 |
| Operating Temperature | -20 / 80 °C |
