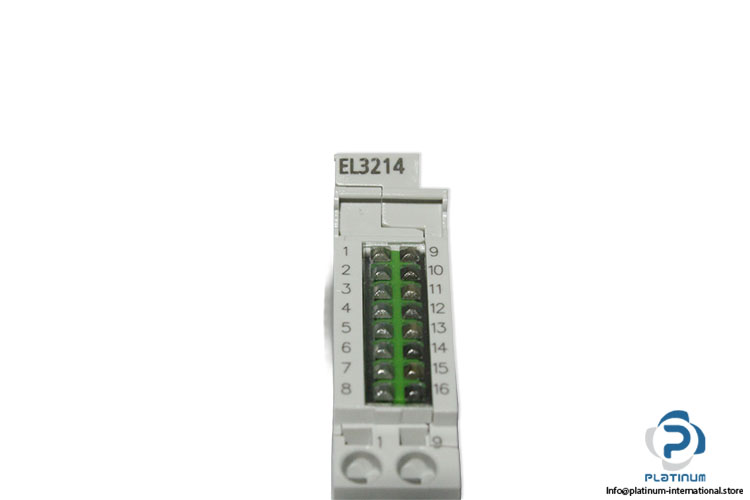

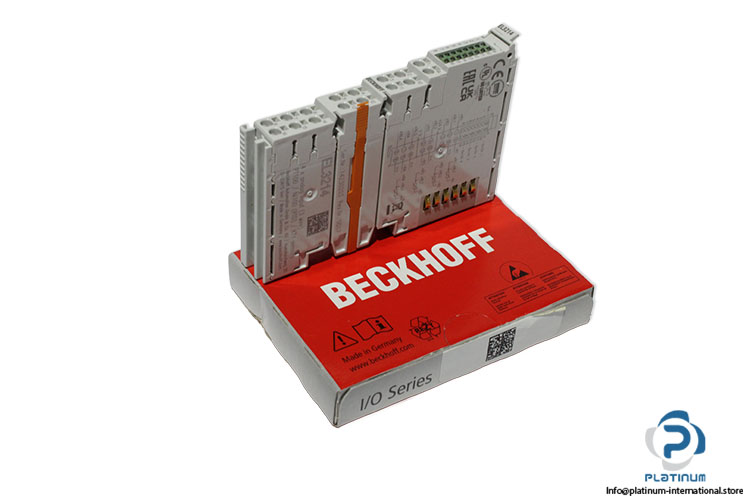

Beckhoff EL3214 Ethercat Terminal
Nuevo
En stock2 unidadesListo para enviar
139,99$
EtherCAT Terminal Beckhoff EL3214 EtherCAT terminal with 4 analog input channels, designed for accurate temperature measurement with PT100, Ni100, and KTY sensors in industrial control systems.
AnalogAutomationBeckhoffControlDINEL3214EtherCATI/OIndustrialInputKTYModulModuleNi100Pt100railRTDSensorSystemTemperatureterminal
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Serial No. | 14230203 |
| Rev. No. | 0017 |
| No. of analog input (AI) | 4 |
| Ground reference | single-ended (input) |
| Connection technology | 2/3-wire (default: 3-wire) |
| Nominal voltage | 24 V |
| Conversion time | approx. 170 ms default setting |
| Input filter limit frequency | typ. 1 kHz |
| Resolution | 0.1°C per digit |
| Protection degree | IP20 |
| Sensor types | PT100 / Ni100 (RTD) / KTY sensors |
| Measuring range | -200- 850°C (Pt sensors); -60-250°C (Ni sensors) |
| Measuring current | < 0.5 mA (load-dependent) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 140 mA |
| Material | Polycarbonate |
| Operating temperature | -25 to 60°C |
| Certificate | CE, EAC, UKCA, cULus |
| Design form | HD (High Density) housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Terminal No. | 10038901082122 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097579 |
| Weight | 0,06 |
