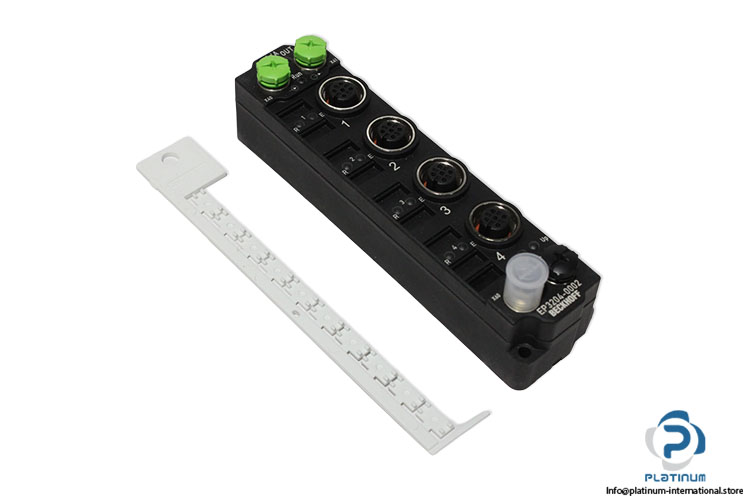

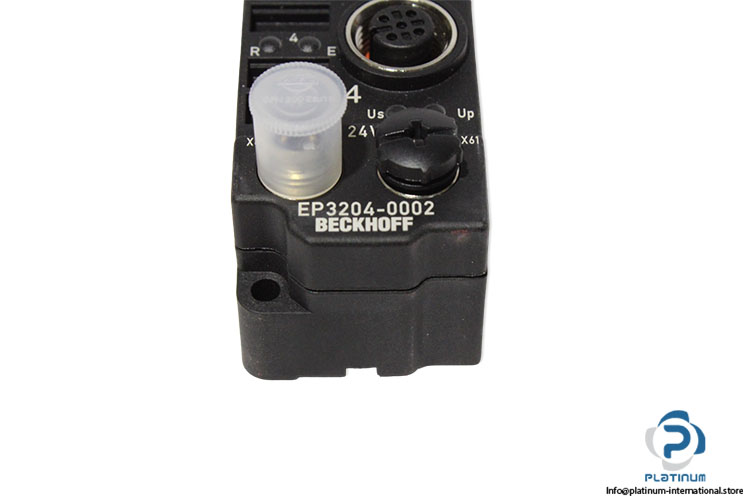

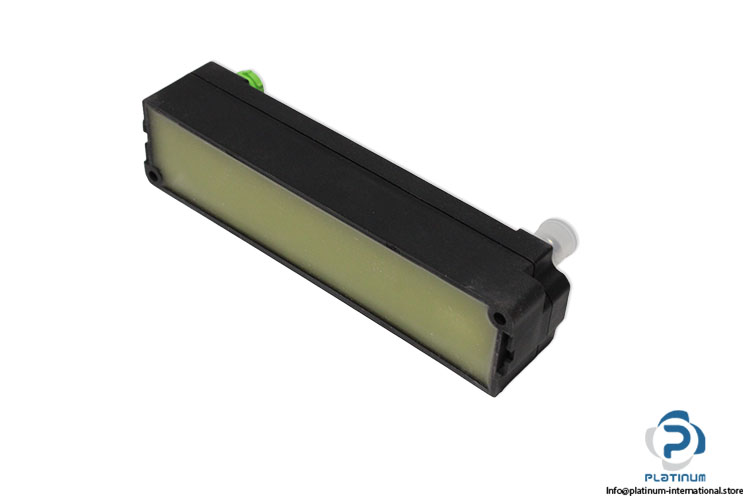

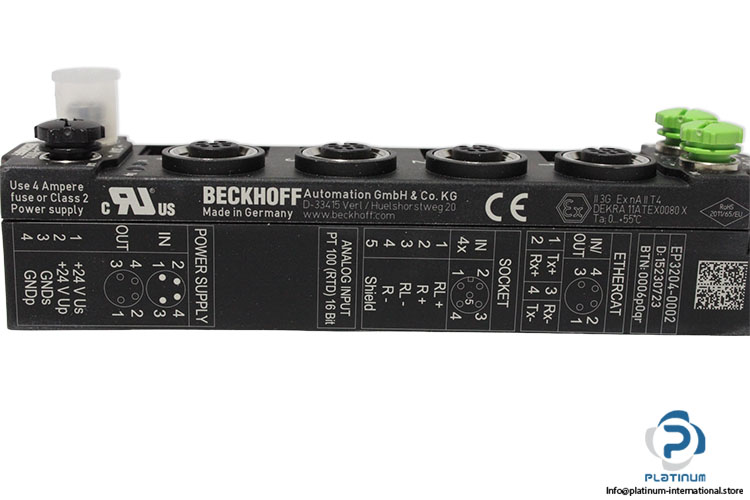

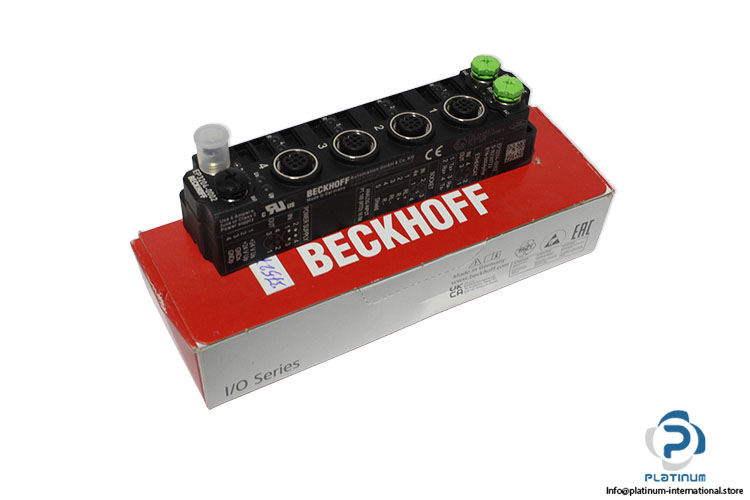

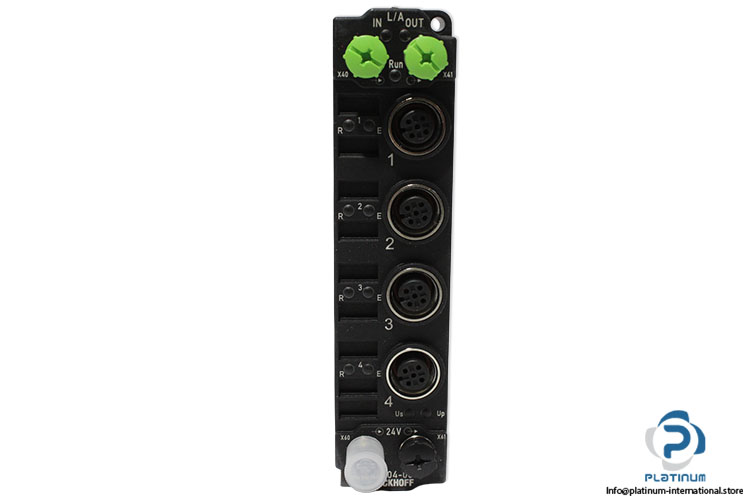

Beckhoff EP3204-0002 Ethercat BOX
Nuevo
En stock4 unidadesListo para enviar
EtherCAT Box BECKHOFF EP3204-0002 EtherCAT Box with four inputs, Pt100 signal support, EtherCAT communication, IP65/IP66/IP67 protection, and wide temperature measurement range for industrial automation applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Ref No | 15230723 |
| BTN | 0006p0qr |
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of inputs | 4 |
| Connection technology | M12 socket for 2-, 3- and 4-wire connections, presetting: 2-wire |
| Conversion time | 800 ms up to 2 ms, see documentation, default: approx. 85 ms |
| Resolution | 0.1°C per digit |
| Sensor types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 O…1.2/4 kO) |
| Signal type | Pt100 |
| Measuring range | -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) |
| Measurement error/uncertainty | ±0.5°C (Pt sensors in 4-wire connection) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Measuring current | typ. 0.5 mA |
| Current consumption from US | 120 mA |
| Power supply connection feed | 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | 500 V |
| Special features | open-circuit recognition |
| Operating temperature | -25…+60°C |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Ex marking | ATEX,II 3 G Ex ec IIC T4 Gc,II 3 D Ex tc IIIC T135 °C Dc |
| Housing data | 8 x M8, 4 x M12 |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099692 |
| Weight | 0,19 |
