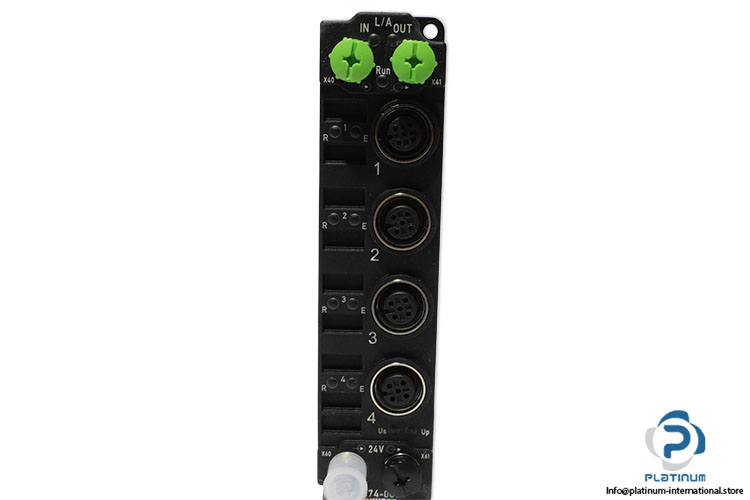

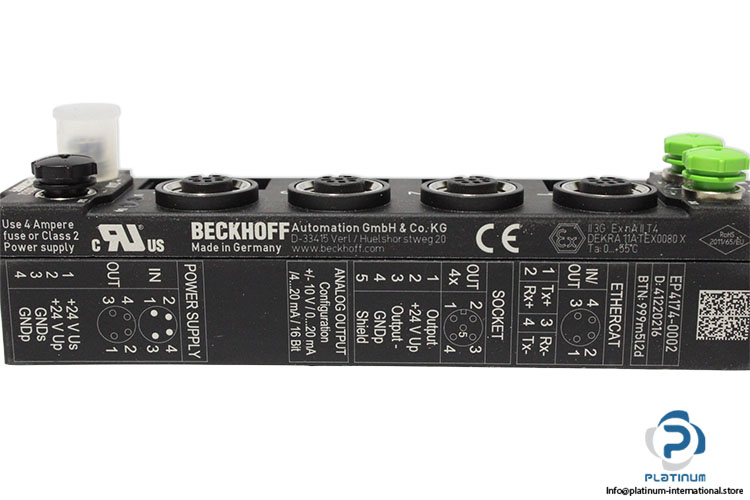

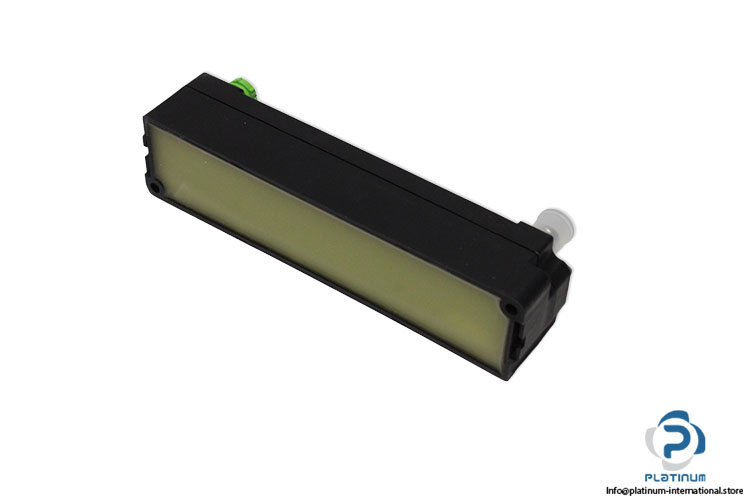

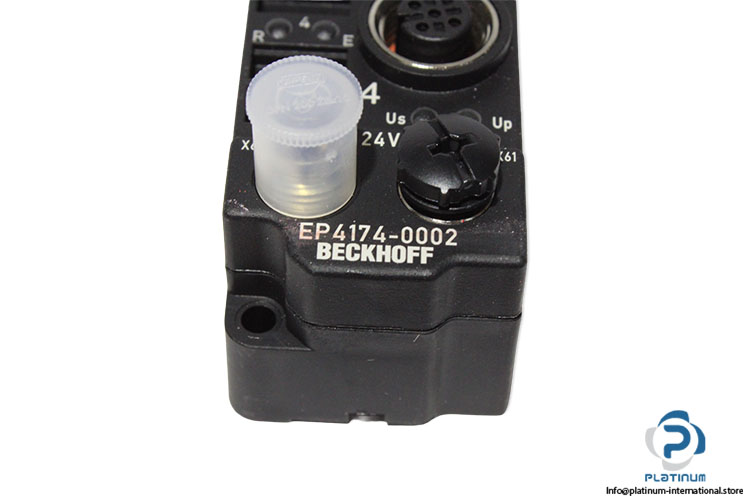

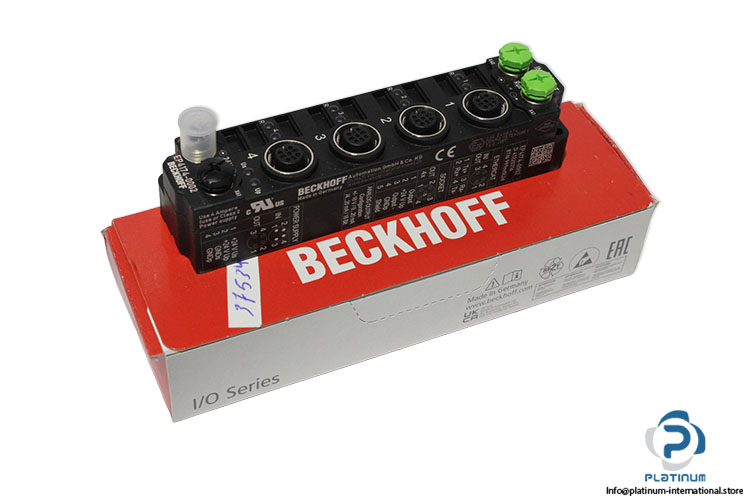

Beckhoff EP4174-0002 Ethercat BOX
Nuevo
En stock37 unidadesListo para enviar
EtherCAT Box BECKHOFF EP4174-0002 EtherCAT Box with four analog outputs, 16-bit resolution, configurable voltage and current signals, and IP65/IP66/IP67 protection for industrial automation applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Ref No | 41220216 |
| BTN | 999m512d |
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of channels | 4 analog outputs |
| Output connections | M12 x 1, 5-pin, a-coded |
| Signal type | -10/0…+10 V | -20/0/4…+20 mA, parameterizable per channel |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Load | 5 kO | < 500 O |
| Resolution | 16 bit |
| Conversion time | 40 µs |
| Measurement error/uncertainty | 0.1% (relative to full scale value) |
| Output error | 0.1% (relative to end value) |
| Actuator supply | from the auxiliary voltage UP |
| Power supply connection | feed, 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | 500 V |
| Current consumption from US | 120 mA |
| Special features | current or voltage parameterizable per channel |
| Operating temperature | -25…+60°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation | pos. IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Ex marking ATEX | /II 3 G Ex ec IIC T4 Gc/II 3 D Ex tc IIIC T135 °C Dc |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099699 |
| Weight | 0,19 |
