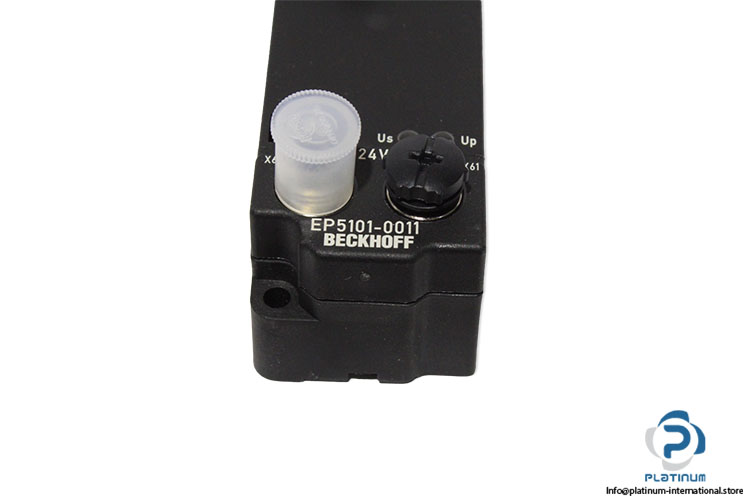

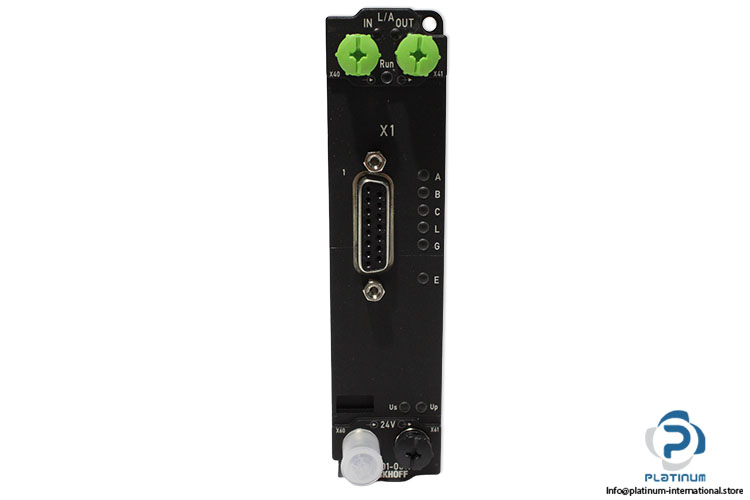

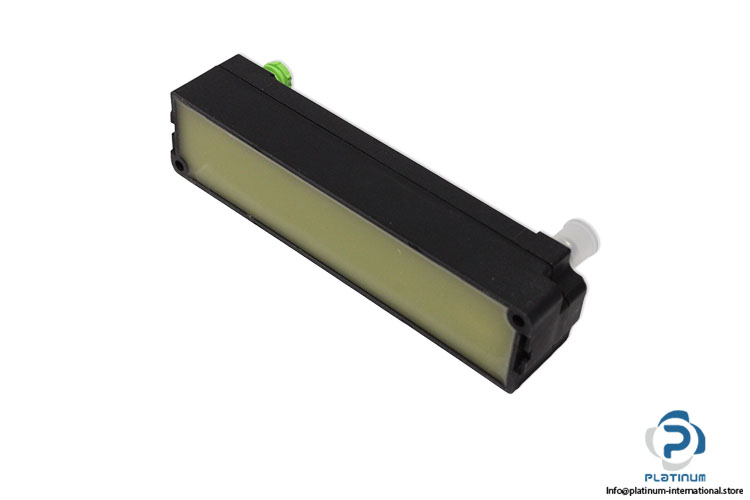

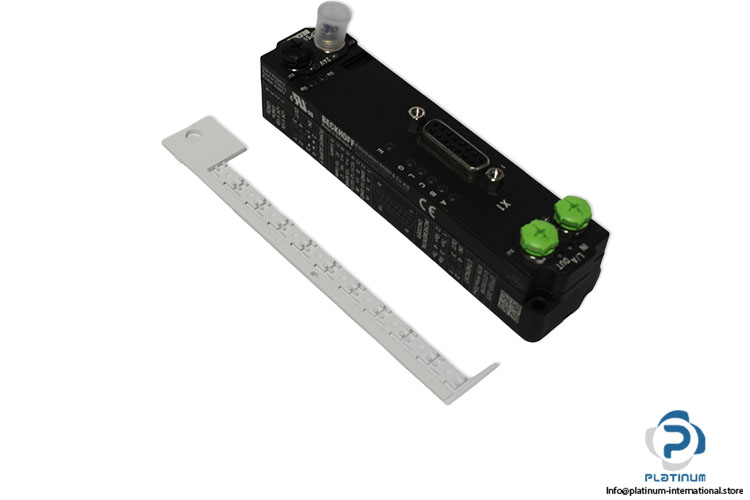

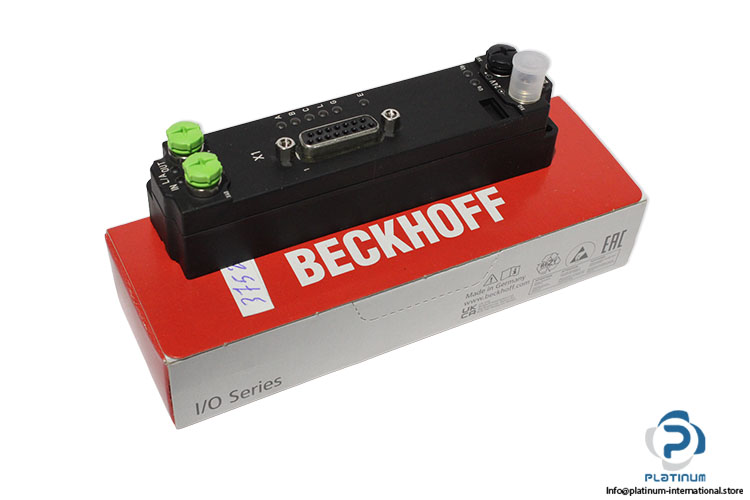

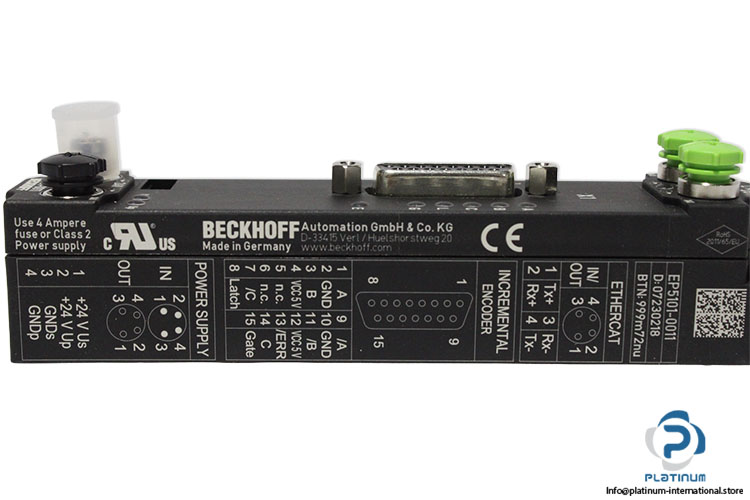

Beckhoff EP5101-0011 Ethercat BOX
Nuevo
En stock14 unidadesListo para enviar
EtherCAT Box BECKHOFF EP5101-0011 EtherCAT Box with one-channel RS422 incremental encoder interface, EtherCAT protocol, IP65/66/67 protection, and compact polyamide housing for industrial automation applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Rf No | 07230218 |
| BTN | 999m72nu |
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Connection technology | D-sub socket, 15-pin |
| Encoder type | incremental, differential (RS422) |
| Number of channels | 1 |
| Encoder connection | A, A (inv), B, B (inv), C,C (inv), differential inputs (RS422); status input 5 V DC; gate/latch input 24 V DC |
| Encoder operating voltage | 5 V DC/150 mA (generated from US) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Input signal | difference signal (RS422), single-ended possible |
| Counter | 1 x 16/32 bit switchable |
| Limit frequency | 4 million increments/s (with 4-fold evaluation), corresponding to 1 MHz |
| Quadrature decoder | 4-fold evaluation |
| Zero-pulse latch | 1 x 16/32 bit switchable |
| Commands | read, set, enable |
| Power supply connection | feed, 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Current consumption from US | typ. 130 mA + sensor supply |
| Electrical isolation | 500 V |
| Operating temperature | 0…55°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals/markings | CE, UL |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099694 |
| Weight | 0,19 |
