Beckhoff EP9576-1032 Ethercat BOX

Name: BECKHOFF EP9576-1032 ETHERCAT BOX
SKU: 1099690
Availability: LimitedAvailability

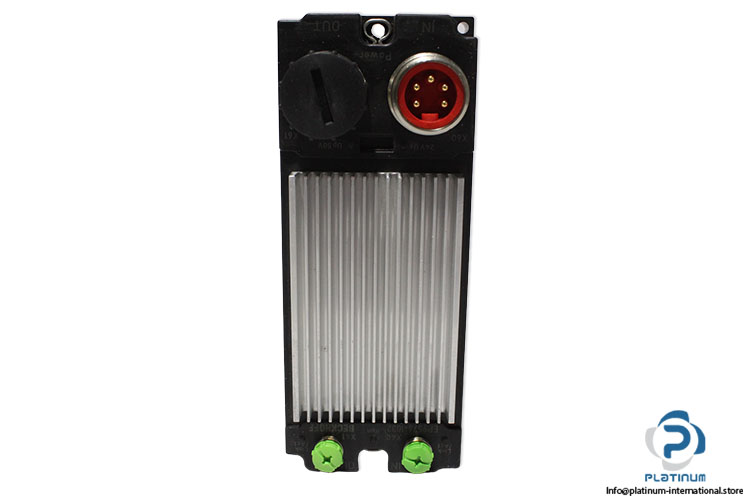

Beckhoff-EP9576-1032-ethercat-box(new)-1

Beckhoff-EP9576-1032-ethercat-box(new)-2

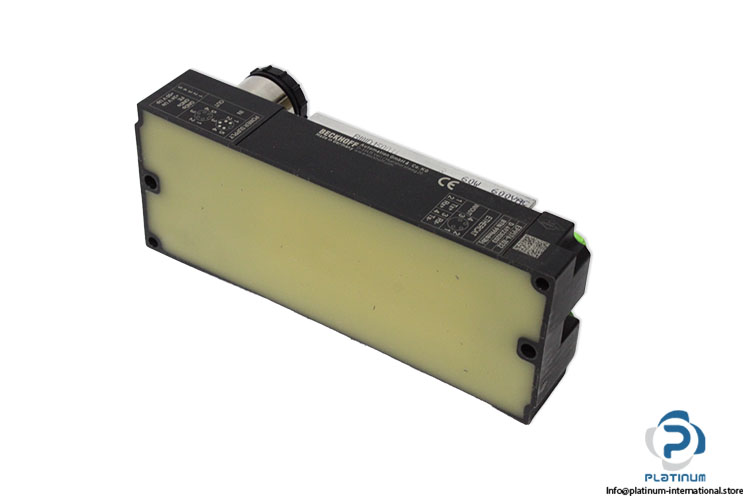

Beckhoff-EP9576-1032-ethercat-box(new)-3

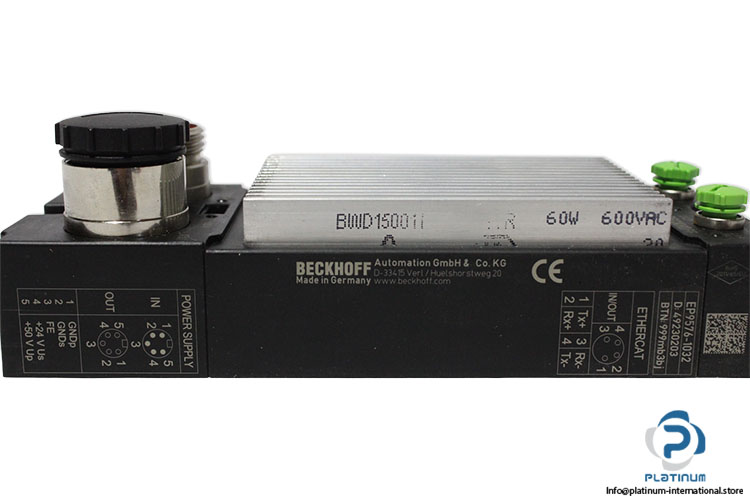

Beckhoff-EP9576-1032-ethercat-box(new)-4

Beckhoff-EP9576-1032-ethercat-box(new)-5

Nuevo

En stock8 unidadesListo para enviar

EtherCAT Box Brake Chopper Box BECKHOFF EP9576-1032 EtherCAT brake chopper box with integrated 11 O braking resistor, adjustable chopper voltage, 155 µF capacity, and IP65/66/67 protection for industrial drive and automation systems.

Fabricante

BECKHOFF

SKU

1099690

Categoría

Passive Junction Blocks

Condición

Nuevo

Inventario Masivo

Envío global

Soporte experto

Calidad Garantizada

Ref No	49230203
Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Technology	brake chopper
Task within EtherCAT system	braking resistor for the dissipation of drive-related overvoltages
Nominal voltage	arbitrary up to 72 V
Power supply connection	feed, 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin
Capacity	155 µF
Max. ripple current	10 A
Internal resistance	5 m ohm
Chopper voltage	adjustable
Braking resistor integrated	11 O, 60 W
Overvoltage control range	typ. 1 V, parameterizable by CoE data
Braking resistor clock rate	load-dependent, max. 100 µs, 2-point control
Electrical isolation	500 V
Diagnostics	temperature on board, over-/undervoltage
Special features	adjustable threshold
Operating temperature	-25…+60°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	60 mm x 150 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
Stock Key	JO-004
Condition	New
SKU	1099690
Weight	0,60
