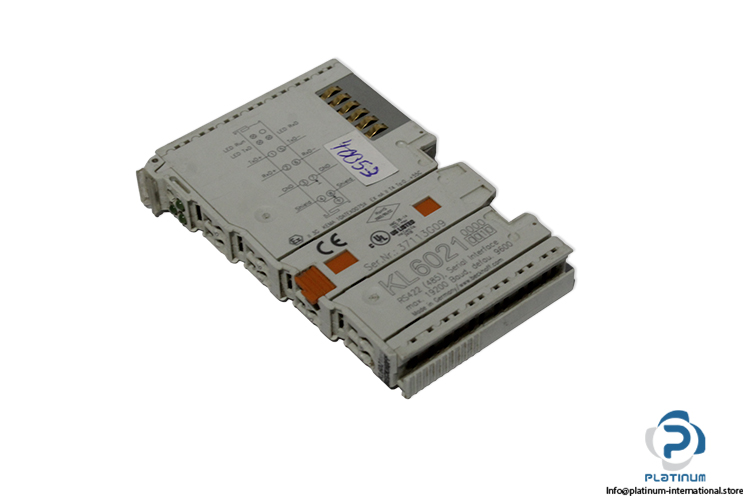

Beckhoff KL6021 BUS Terminal
Usado
En stock1 unidadListo para enviar
Bus Terminal The BECKHOFF KL6021 is an RS422/RS485 Bus Terminal designed for reliable serial communication and data transmission in industrial automation systems.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

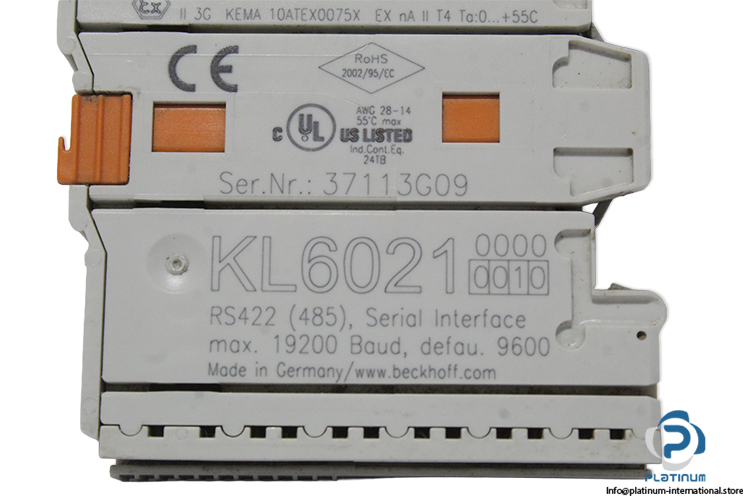

| Ser. No. | 37113G09 |
| Technology | RS422/RS485 |
| Data Transfer Channels | TxD and RxD, full/half duplex |
| Transmission Rate | 1200 … 19,200 Baud; default: 9600 Baud, 8 Data Bits, No Parity and One Stop Bit |
| Bit Transfer | With Differential Signal |
| Cable Impedance | 120 O |
| Cable Length | Approx. 1000 m Twisted Pair |
| Power Supply | Via the K-bus |
| Current Consumption K-bus | 65 mA |
| Electrical Isolation | 500 V (K-Bus/Signal Voltage) |
| Data Buffer | 128 Bytes Receive Buffer, 16 Bytes Transmit Buffer |
| Bit Width in the Process Image | Input/Output: 3 x 8 Bit User Data, 1 x 8 Bit Control/Status (Up To 5 x 8 Bit User Data Are Possible) |
| Configuration | No Address Setting, Configuration Via Bus Coupler Or Controller |
| Operating Temperature | 0 … 55 °C |
| Dimensions | 100 x 12 x 68 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1103855 |
| Weight | 0,05 |
