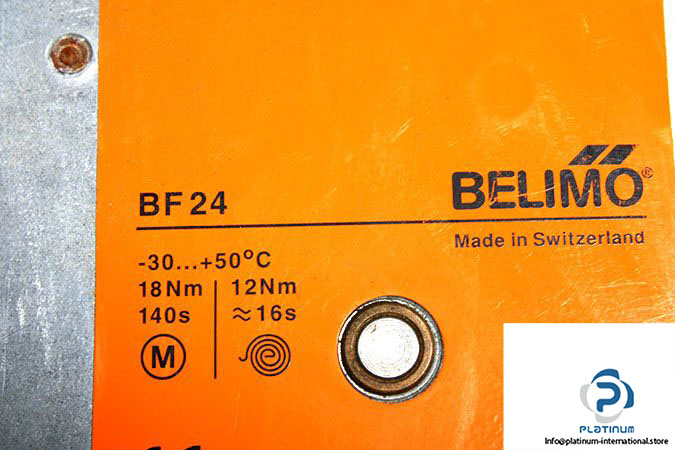

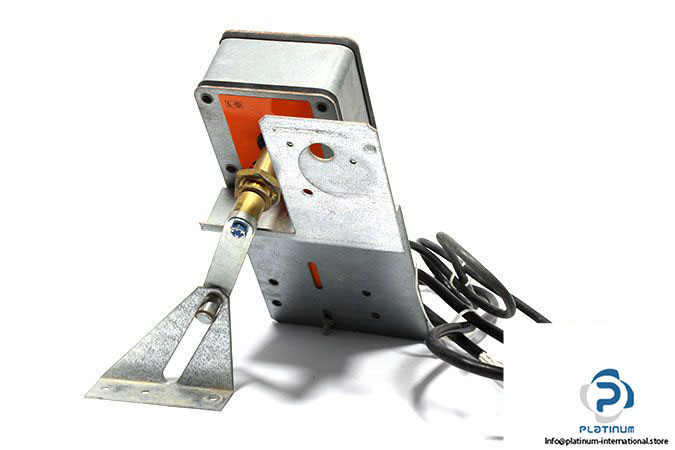

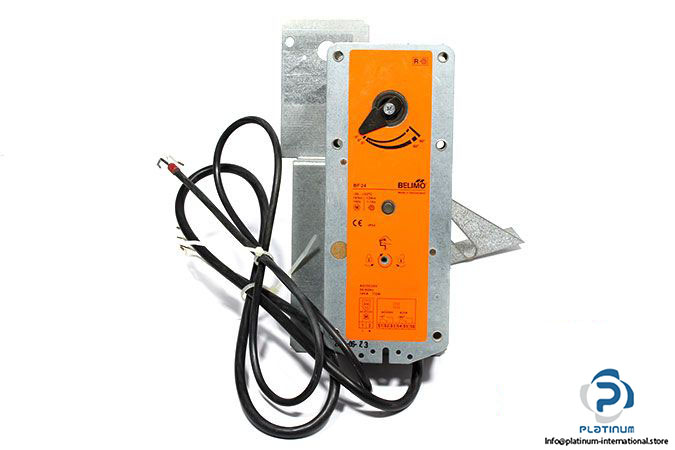

Belimo BF24 Spring-Return Actuator

Manufacturer: Belimo

Type: Spring-Return Actuator

Model: BF24

Spring-return actuator for fire and smoke dampers

Nominal Voltage: AC/DC 24 V

Line Frequency: 50/60 Hz

Power Consumption in Operation: 7 W

Switching Capacity auxiliary switch: 1 mA … 6A

Torque Motor: 18 Nm

Torque fail-safe: 12 Nm

Angle of rotation: Max. 95°

Weight: 2.6 kg
