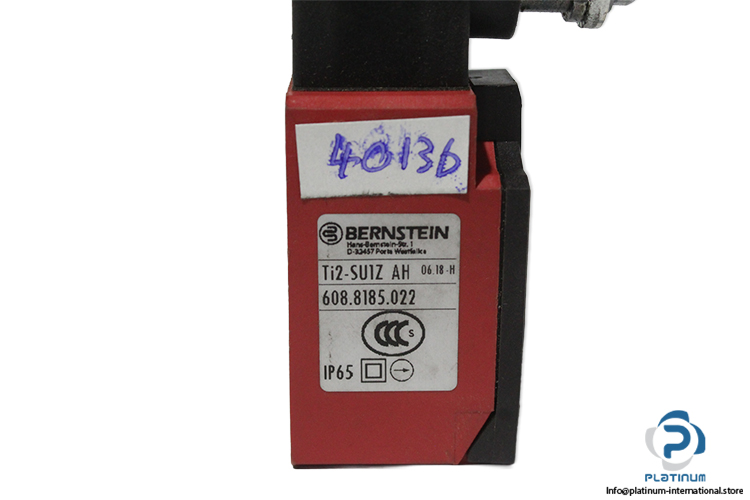

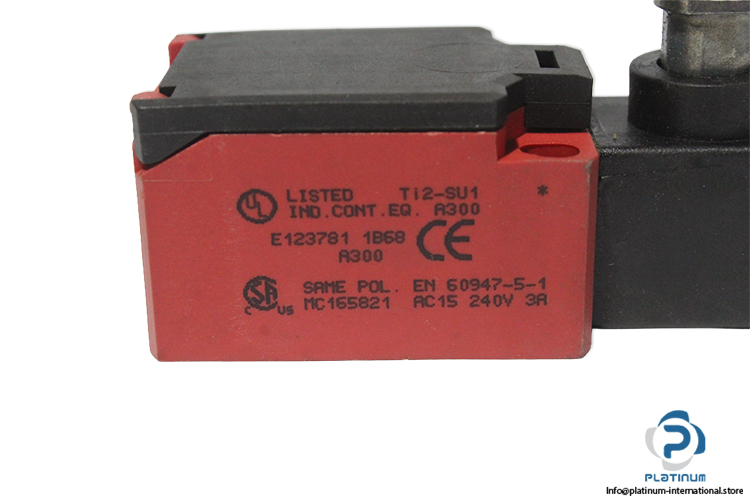

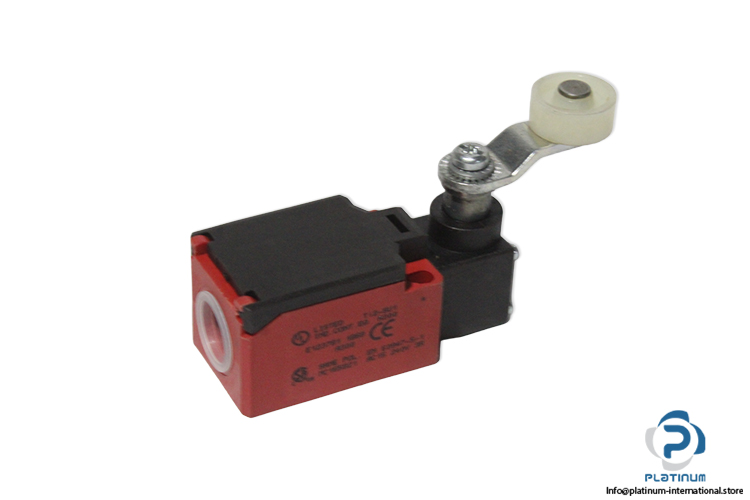

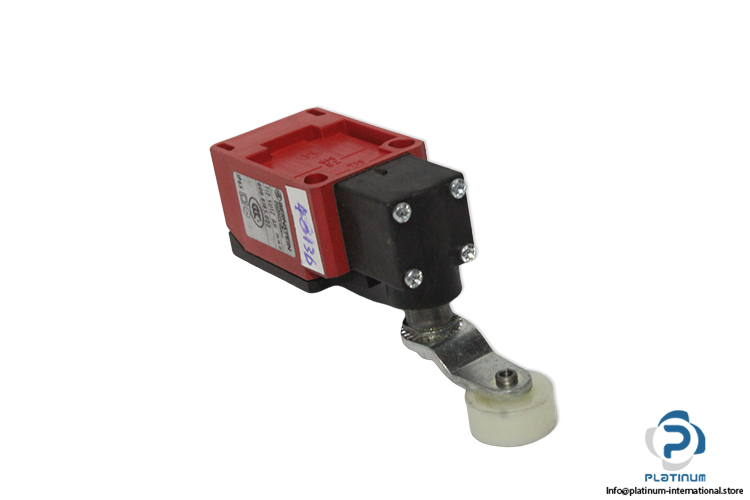

Bernstein TI2-SU1Z AH Roller Lever Limit Switch
Nuevo
En stock1 unidadListo para enviar
24,44$
Limit Switch The BERNSTEIN TI2-SU1Z AH is an IP65 industrial limit switch with NO + NC contacts and a turret head actuator for reliable position detection and control.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | 608.8185.022 |
| Series | TI2 |
| Rated Operational Voltage | 240 V AC / 250 V DC |
| Insulation Voltage | 250 V AC |
| Rated Thermal Current | 10 A |
| Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Actuator | Turret Head |
| Connection | 2 x M4 or 2 x M5 |
| Material | Thermoplastic, Glass Fiber Reinforced |
| Protection Class | IP65 |
| Ambient Temperature | -30 … 80 °C |
| Dimensions | 45 x 30 x 27 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103953 |
| Weight | 0,07 |
