B&R 3NC154.60-2 POSITIONING MODULE

Name: B&amp;R 3NC154.60-2 POSITIONING MODULE
SKU: 1043528
Price: 1888.88 USD
Availability: LimitedAvailability

b&r-3NC154.60-2-positioning-module-(used)

b&r-3NC154.60-2-positioning-module-(used)-1

b&r-3NC154.60-2-positioning-module-(used)-2

b&r-3NC154.60-2-positioning-module-(used)-3

Usado

Disponible bajo solicitud

1 888,88$

MÓDULO DE POSICIONAMIENTO B&R 3NC154602 proporciona control de 3 ejes con 5 entradas digitales, 1 salida analógica y alimentación de codificador de 24 V CC, diseñado para sistemas de automatización avanzados.

Fabricante

B&R

SKU

1043528

Categoría

PLC Modules

Condición

Usado

3NC154602 Automation B&R Control Controller Digital Encoder High Industrial IO Module Motion multi-axis Positioning Precision supply

Inventario Masivo

Envío global

Soporte experto

Calidad Garantizada

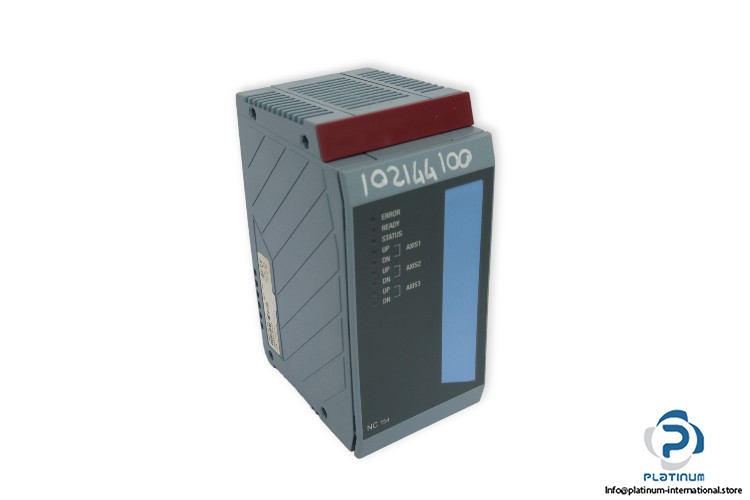

B&R 3NC154602 POSITIONING MODULE

The B&R 3NC154602 is a high-performance positioning module engineered for precise multi-axis motion control in industrial automation systems. With advanced digital and analog I/O capabilities, it is ideal for applications requiring reliable real-time feedback and positioning accuracy.

Manufacturer: B&R

Type: Positioning Module

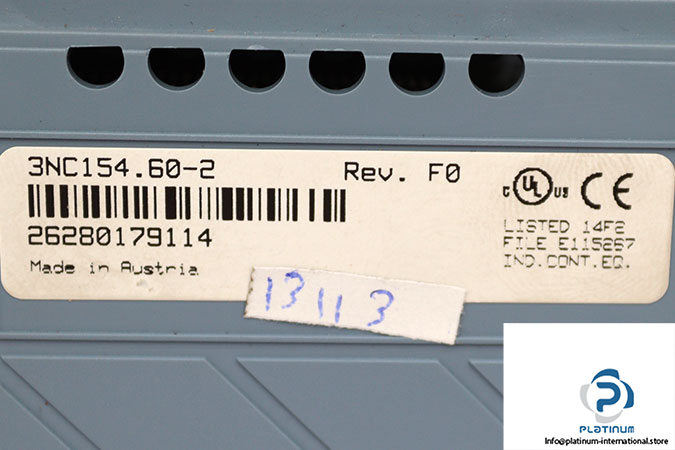

Model: 3NC154602

Ref No.: 26280179114

Revision: F0

Encoder Supply	24 V DC
Power Consumption	Max. 6 W
Input Frequency	150 KHz
Counter Size	32-bit
Output	1 Relay Output (24 V AC/DC, 1 A)
Analog Outputs (AO)	1 (+/- 10 V)
Digital Inputs (DI)	5
Digital Converter Resolution	12-bit
Number of Axis	3
Operating Temperature	0 / 55° C
