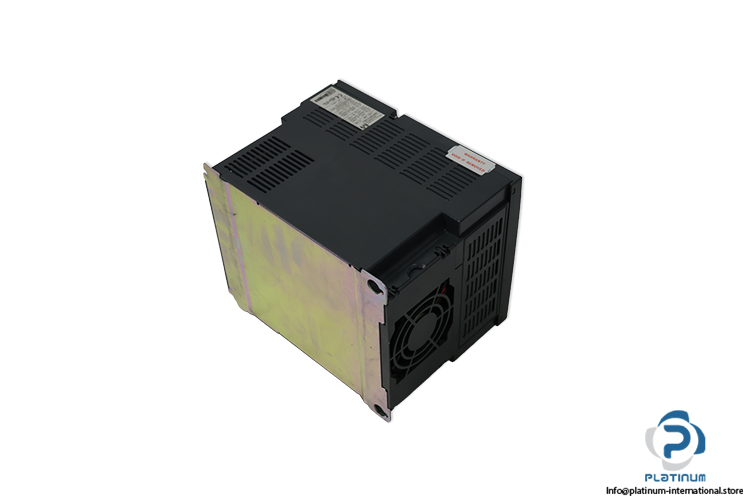

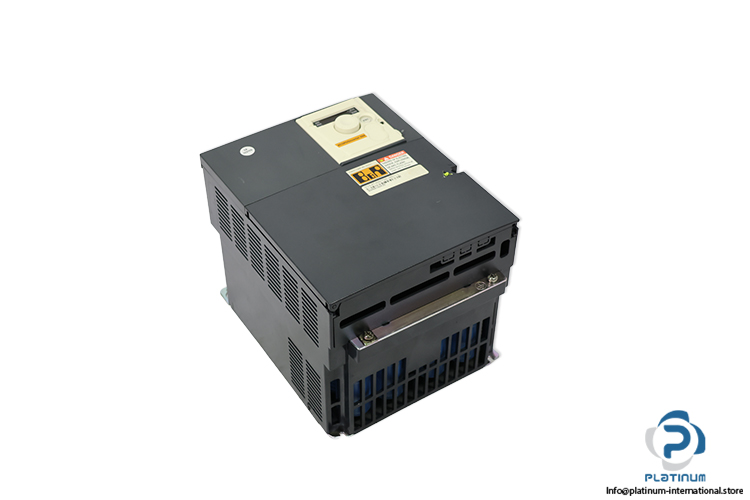

B&R 8I64T400750.000-1 INVERTER MODULE
Nuevo
En stock1 unidadListo para enviar
Inverter Module The B&R ACOPOSinverter X64 8I64T400750.000-1 is a 7.5 kW three-phase inverter module with 380–500 V input, 0.5–500 Hz output frequency, integrated EMC filter, brake chopper, and X2X Link interface for industrial motor control applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

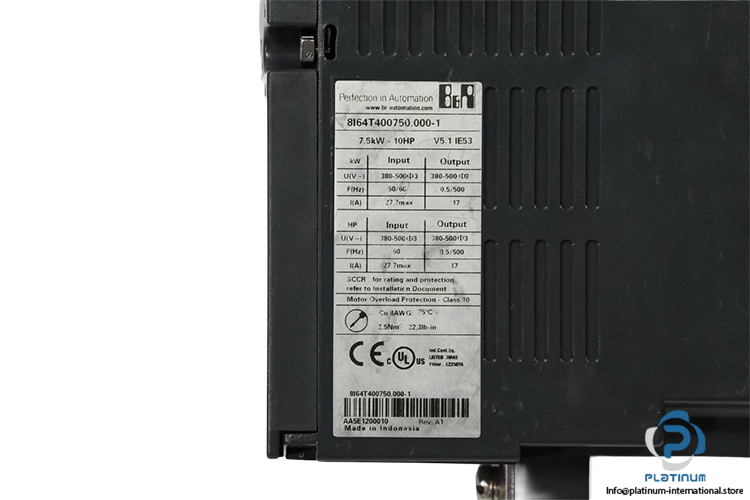

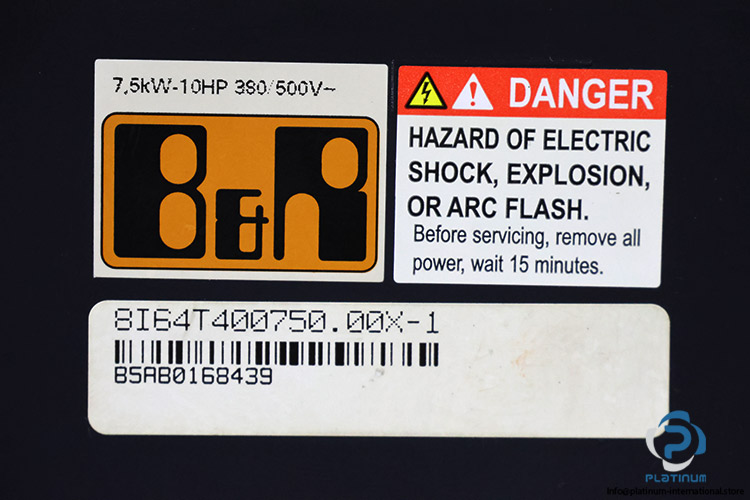

| Part No. | 8I64T400750.00X-1 |
| CODE | B5AB0168439 |

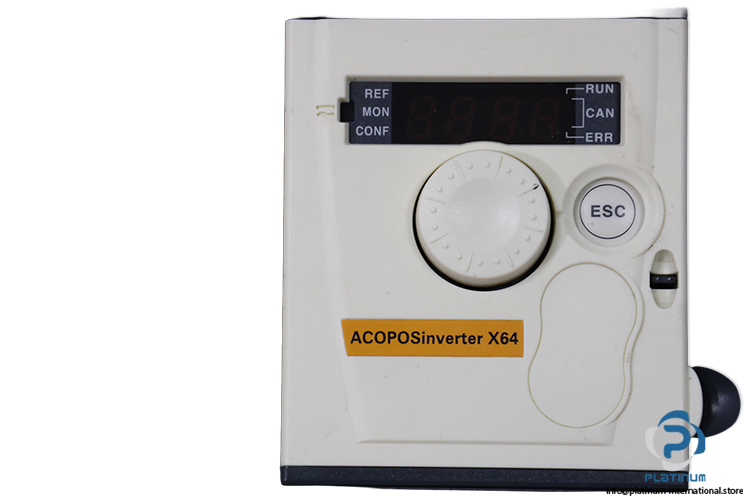

| Series | ACOPOSinverter X64 |
| Version | V5.1 IE53 |
| Power | 7.5 kw |
| Input Voltage | 380–500 V (3-phase) |
| Motor Overload Protection | Class 10 |
| Key Features | Integrated EMC filter and brake chopper, X2X Link interface |
| Max. mains current with optional mains choke ,At 380 VAC | 15.4 A |
| At 500 VAC | 12.1 A |
| Max. mains current ,At 380 VAC | 27.7 A |
| Mains input voltage | 3x 380 VAC -15% to 500 VAC +10% |
| Frequency | 50 to 60 Hz ±5% |
| Apparent power (at 500 VAC) | 18 kVA |
| Max. assumed short-circuit current (Isc),(short-circuit current at connection point) | 22 kA |
| Power dissipation at max. output current | 269 W |
| Max. continuous output current (In),At 500 VAC | 17 A |
| Nominal clock frequency Min. | 2 kHz |
| Max. motor cable length,Shielded cable | 50 m |
| Non-shielded cable | 100 m |
| Max. transient current for 60 s | 25.5 A |
| Output frequency range | 0.5 to 500 Hz |
| Nominal clock frequency | 4 kHz |
| Short-term overload torque (typical value) | 170 to 200% of the nominal motor torque |
| Stock key | EU002 |
| Condition | New |
| SKU | 1101400 |
| Weight | 4,8 |
