B&R X20 DI 6372 DIGITAL INPUT MODULE
Nuevo
En stock1 unidadListo para enviar
Módulo de entrada digital B&R X20DI6372 módulo de entrada digital industrial con 6 entradas digitales, operación de 24 V CC y indicadores de estado integrados para una integración fiable con PLC y sistemas de automatización.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

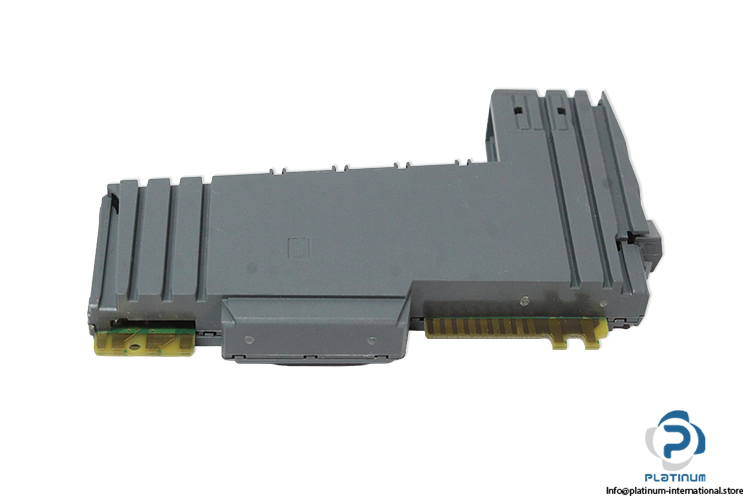

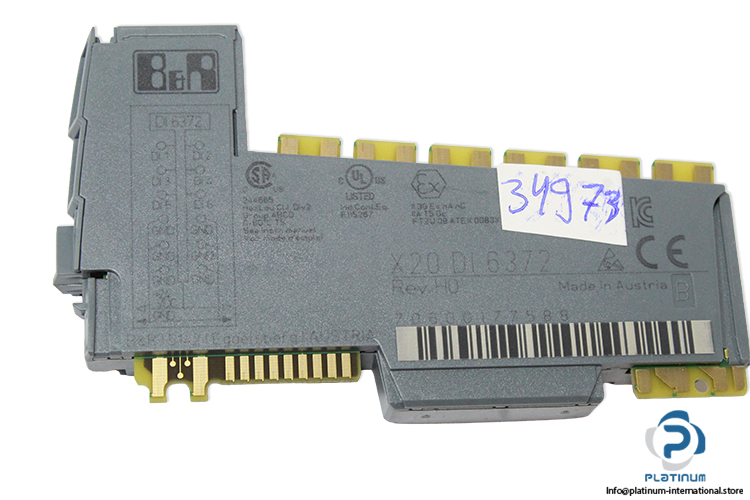

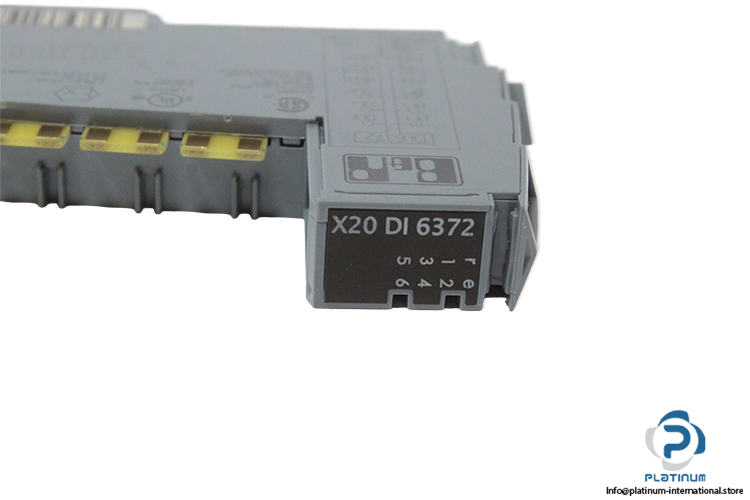

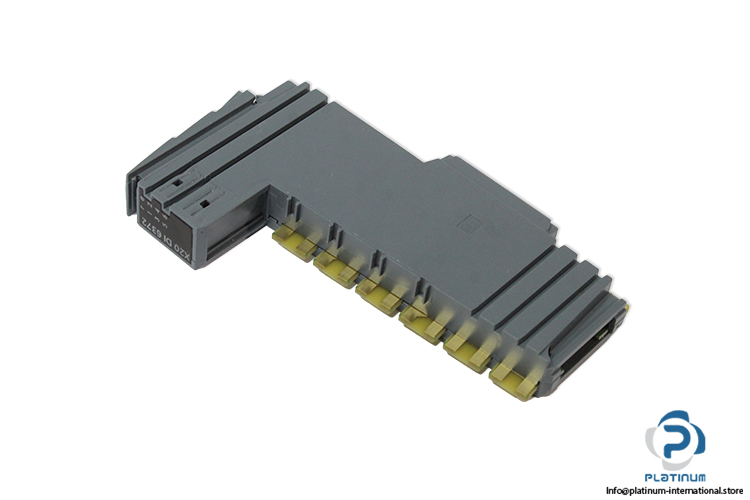

B&R X20DI6372 Digital Input Module
The B&R X20DI6372 Digital Input Module is a compact and reliable industrial I/O component designed for automation systems requiring precise digital signal acquisition. Built for stable performance in demanding industrial environments, this module provides efficient input processing and clear status indication for each channel.
Manufacturer: B&R
Type: Digital Input Module
Model: X20DI6372
Revision: H0
EAN No.: 20600177588
Power Consumption:
| Input Voltage | 24 V DC |
| Input Current (At 24 V DC) | Typ. 3.75 mA |
| Status Indicators | I/O Function Per Channel, Operating State, Module Status |
| Number Of Digital Inputs | 6 DI (For 1- Or 2-Wire Connections) |
| Bus | 0.15 W |
| Internal I/O | 0.88 W |
| Protection Degree | IP20 |
| Operation Temperature | -25 To 60°C |
| Recommendation | A high-performance digital input module ideal for PLC automation systems, offering reliable signal monitoring and easy integration into industrial control applications. |
