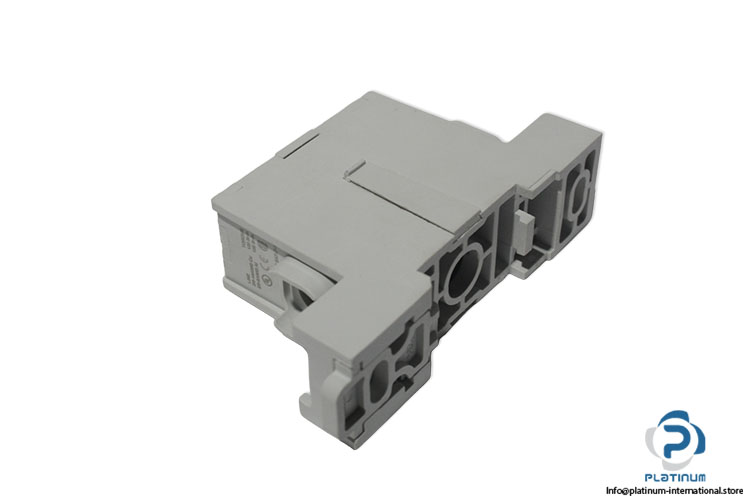

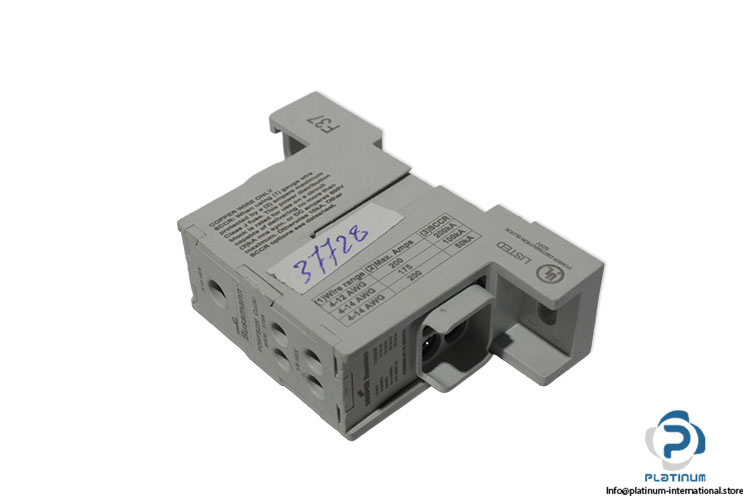

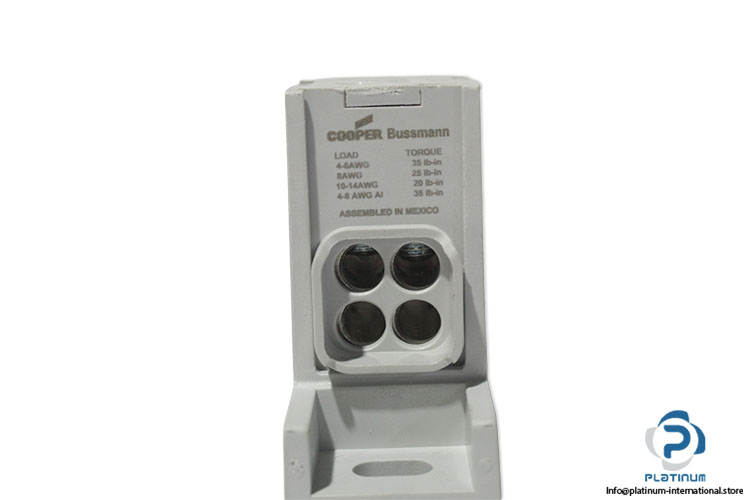

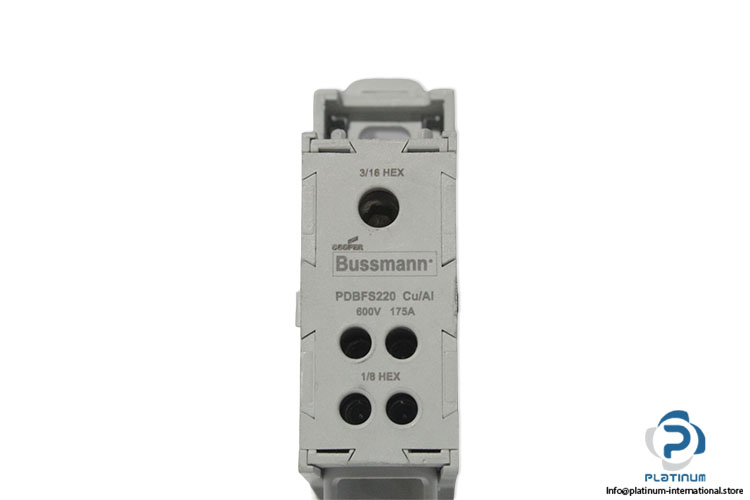

Bussmann PDBFS220 Power Distribution Block
Nuevo
En stock4 unidadesListo para enviar
The BUSSMANN PDBFS220 Power Distribution Block is designed for reliable industrial power distribution with a 175 A current rating, 600 V AC/DC operating voltage, tin-plated aluminum connectors, and a high short-circuit rating for safe electrical installations.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Series | PDBFS |
| Voltage | 600V AC/DC |
| Current | 175A |

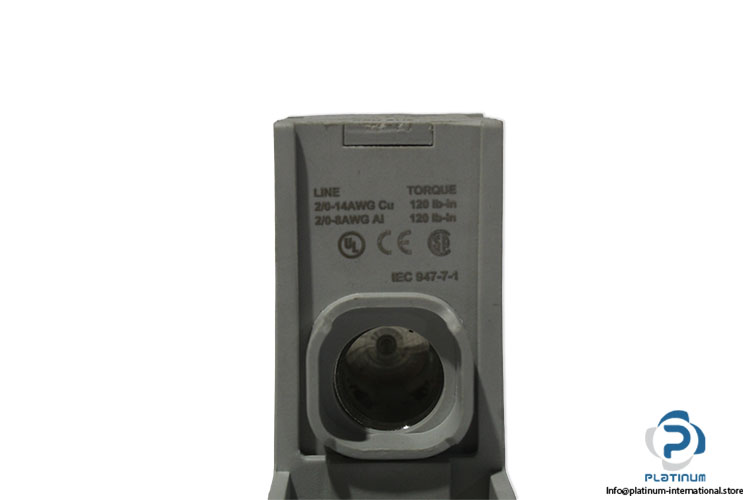

| Line/Torque | (2/0-14AWG Cu, 2/0-8AWG AI)/120 lb-in |

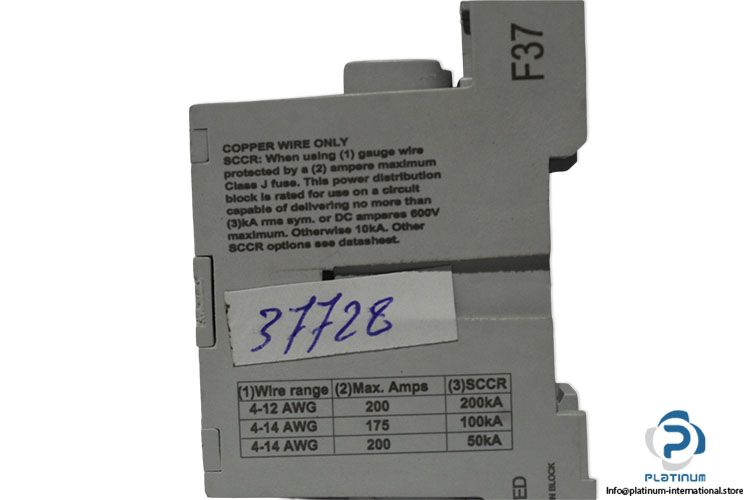

| Short-Circuit Rating Sccr | 200 kAIC (4-12 AWG), 100 kAIC (4-14 AWG) |
| Material | Tin plated aluminum connectors |
| Standard | IEC 947-7-1 |
| Length/Depth | 94 mm |
| Height | 54,61 mm |
| Width | 25,14 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093455 |
| Weight | 0,1 |
