Cella PCA2M3 Pressure Switch
En stock1 unidadListo para enviar
COMPACT PRESSURE SWITCH
Durable and precise pressure switch with diaphragm seal for fluid systems up to 40 bar. Suitable for extreme temperatures and harsh industrial environments. Built with aluminum housing and IP65 protection.½AluminumCellaCompactconnectionControlDiaphragmfilledFluidGHighHousingIndustrialIP65ModeloilPCA2M3PressureSealSensorSiliconeSwitchTemperature
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

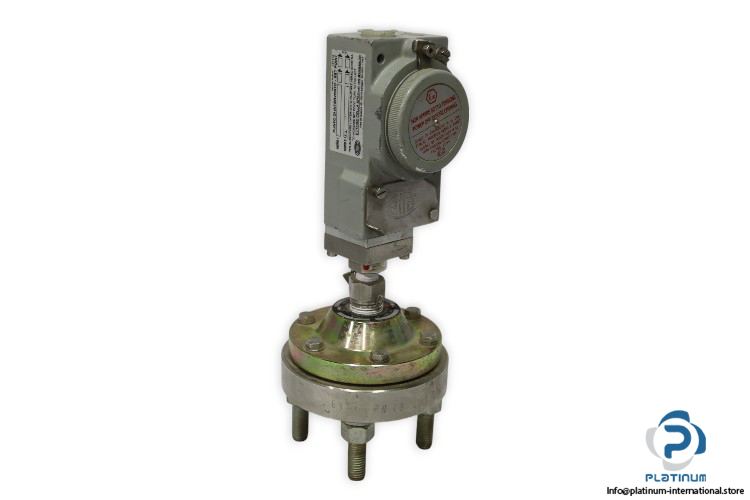

CELLA PCA2M3 COMPACT PRESSURE SWITCH
Reliable and rugged pressure switch designed for industrial applications requiring high durability, accurate control, and long temperature range. Includes CELLA S96LI diaphragm seal for extended performance in demanding conditions.

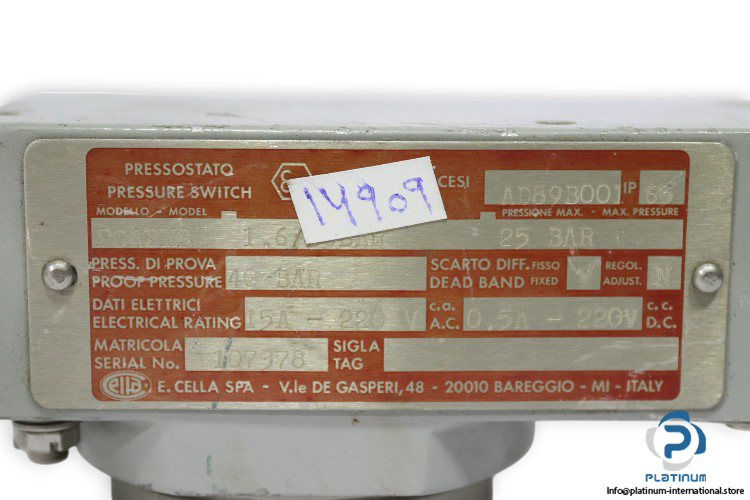

Manufacturer: Cella
Type: Compact Pressure Switch
Model: PCA2M3
Serial No.: 107978
Ref. Code: AD89300

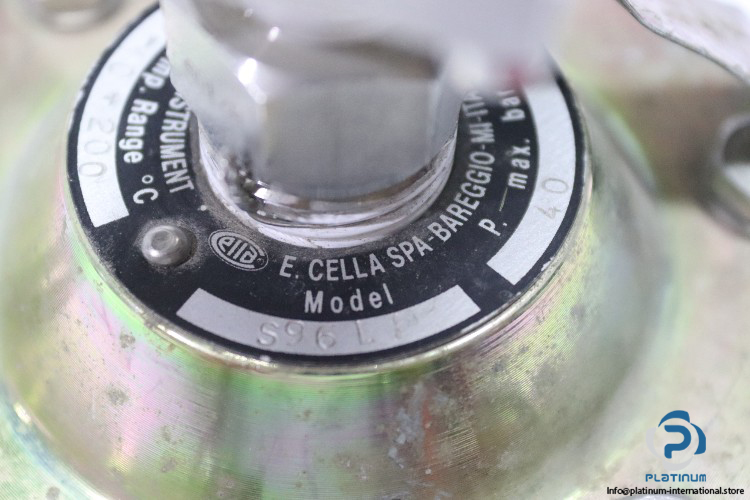

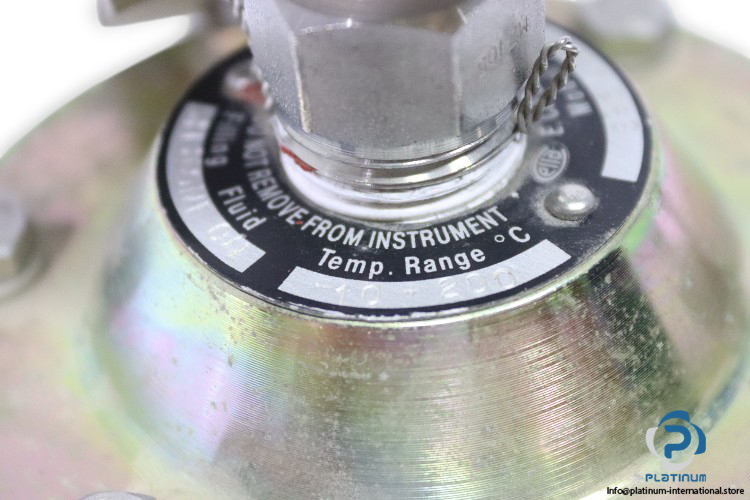

Attachment “ CELLA S96LI Diaphragm Seal
| Max. Pressure | 25 bar |
| Burst Pressure | 40 bar |
| Connection | G ½ |
| Electrical Rating | 15 A, 220 V AC / 0.5 A, 220 V DC |
| Protection Degree | IP65 |
| Material | Aluminum |
| Ambient Temperature | -40 to 85°C |
| Fluid | OIL |
| Temperature Range | -10 to 200°C |
| Pressure | Max. 40 bar |

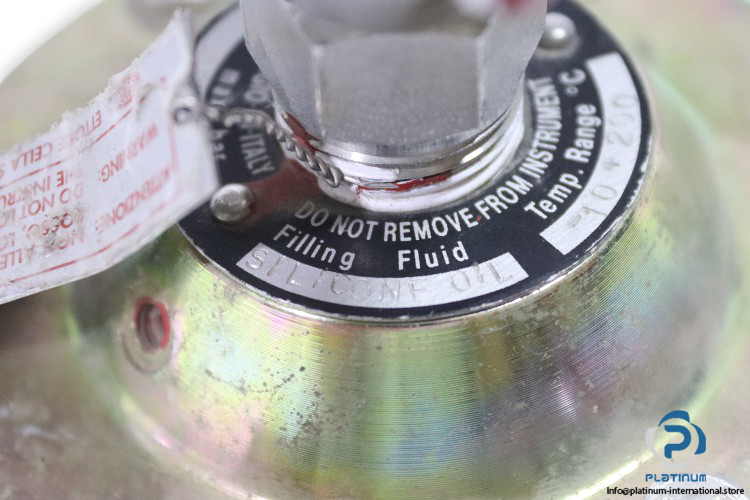

| Filling | Silicone |
