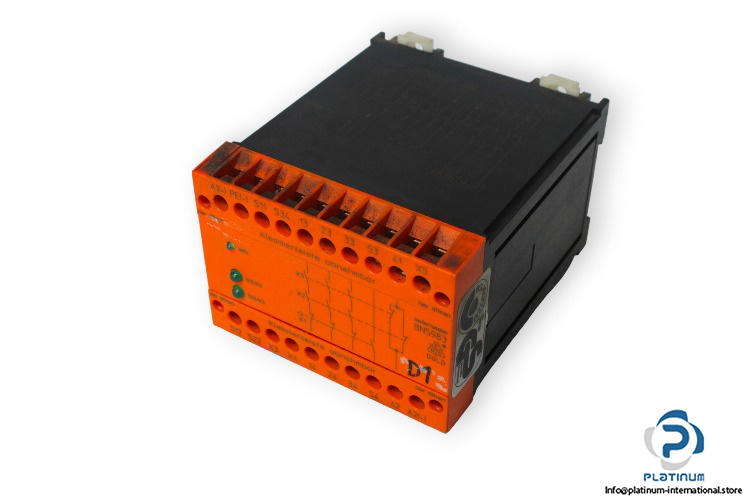

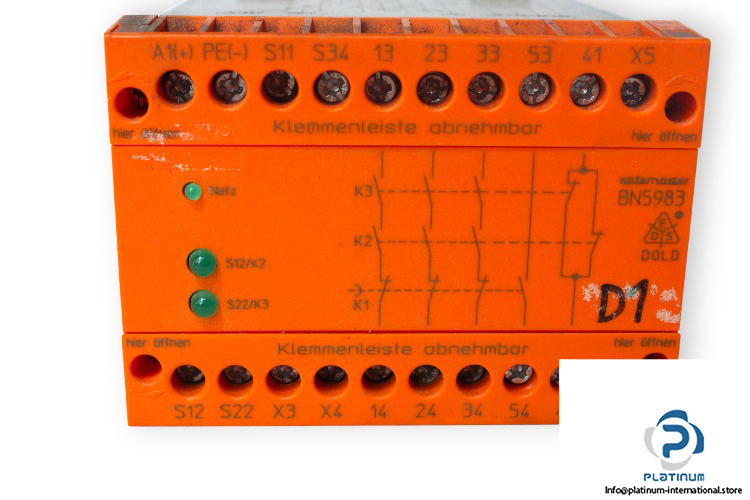

Dold BN 5983.53 Emergency Stop Module
Usado
En stock2 unidadesListo para enviar
Emergency Stop Module DOLD emergency stop module operating at 24 VDC with 3 NO and 1 NC positively-driven relay contacts, designed for machine safety circuits and safety gate monitoring.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Art-No | 0031885 |
| Application | Emergency-stop circuits on machines / Monitoring of safety gates |
| Nominal Voltage | 24 VDC |
| Nominal Consumption | 5 VA ± 30 % |
| Control Current | max. DC 100 Ma |
| Output Contacts | 3 NO, 1 NC |
| Nominal Output Voltage | 400 VAC / 230 VDC |
| Contact Type | Relay, positively-driven |
| Wire Fixing | Flat terminals with self-lifting |
| Temperature Range | – 15 … + 55°C |
| Degree of Protection Housing / Terminals | IP 40 / IP 20 |
| Dimensions | 100 X 74 X 121 mm |
| Condition | Used |
| SKU | 1008155 |
| Weight | 0,66 |
