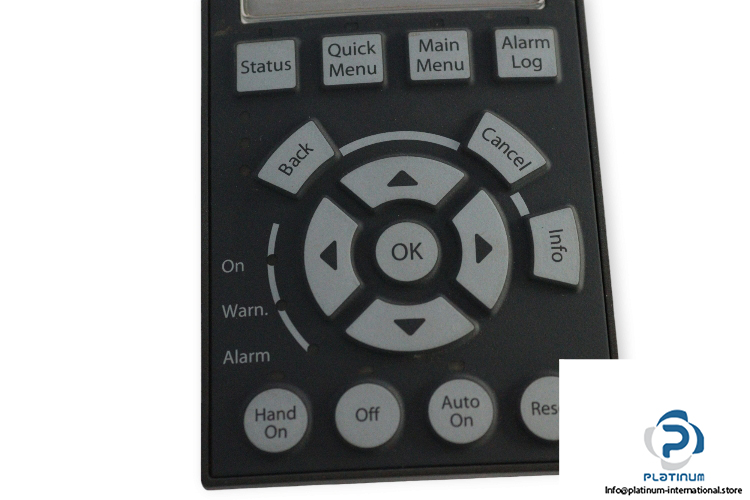

Danfoss 4X/IP66 Control Panel LCP 102

Manufacturer: Danfoss
Type: Control Panel LCP 102
Code No.: 130B1107
Model: 4X/IP66

Electrical Rating: 5 V, 120 mA
Programmable digital inputs: 6
Logic: PNP or NPN
Voltage level: 0–24 V DC
Analogue inputs: 2
Voltage level: -10 … 10 V (scaleable)
Current level: 0/4 to 20 mA (scaleable)
Programmable pulse inputs: 2
Voltage level: 0–24 VDC (PNP positive logic)
Pulse input accuracy: (0.1–110 kHz)
Programmable analogue outputs: 1
Current range at analogue output: 0/4 … 20 mA
Programmable relay outputs: 2 (240 VAC, 2 A and 400 V AC, 2 A)
Electrical Connection: 9 Pins
Operating Temperature: 50 °C
Dimensions: 481 X 242 X 260 mm
