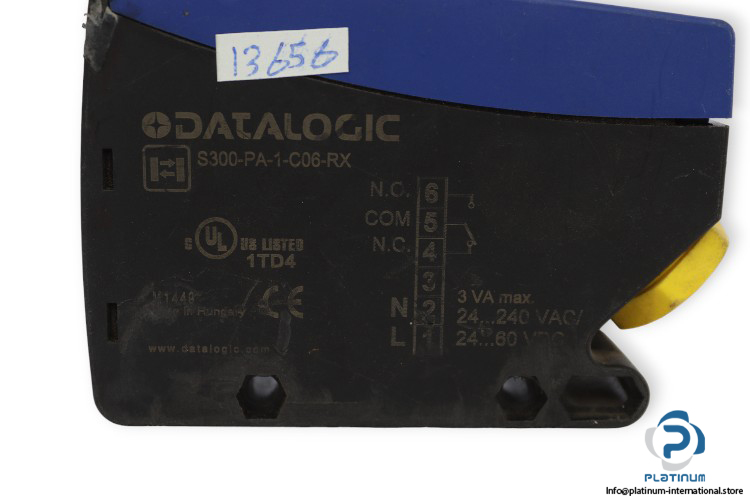

Datalogic S300-PA-1-C06-RX Diffuse Proximity Sensor
Sensor de proximidad difusa industrial con un rango de detección de 0,05-2m, emisión de LED infrarroja, salida de relé y protección IP67. Diseñado para la detección de objetos a alta velocidad en aplicaciones de automatización.
Datalogic / Datasensor S300PA1C06RX Diffuse Proximity Maxi Advanced Multivoltine Sensor
The Datalogic / Datasensor S300PA1C06RX is a high-performance Diffuse Proximity Maxi Advanced Multivoltine Sensor, designed for precise object detection across industrial automation applications. With an advanced IR LED system, reliable relay output, and a rugged IP67-rated enclosure, this sensor ensures efficient and accurate detection even in harsh environments.
Key Product Details:
Manufacturer: Datalogic / Datasensor
Type: Diffuse Proximity Maxi Advanced Multivoltine Sensor
Model: S300PA1C06RX
Designed for industrial automation, this sensor provides long-range object detection, high-speed response, and reliable performance in challenging environments.
| Optic Function | Diffused Proximity |
| Operating Distance | 0.05 to 2 m |
| Response Time | 25 ms max |
| Power Supply | 24 to 240 V AC / 24 to 60 V DC |
| Setting | Timing and Sensitivity Trimmers, D/L Dip-Switch |
| Consumption | 3 VA max |
| Light Emission | IR LED 940 nm |
| Output Type | Relay |
| Output Current | 3 A max |
| Switching Frequency | 20 Hz max |
| Connection | VAC “ Terminal Block |
| Protection Degree | IP67 |
| Housing Material | PBT |
| Operating Temperature | -25 to +55 °C |
| Dimensions | 25 x 100 x 70 mm |
