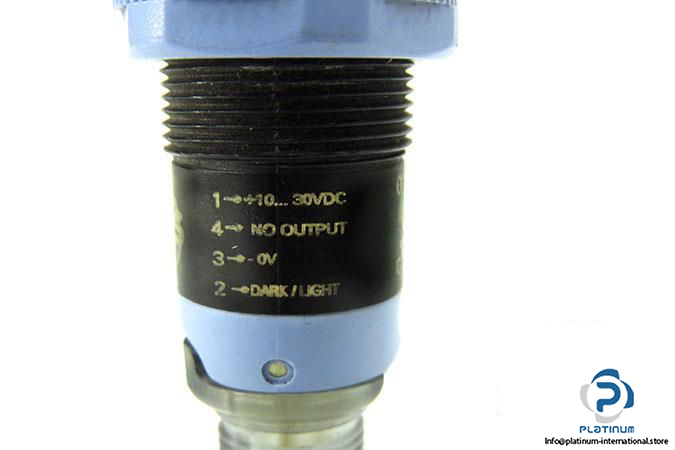

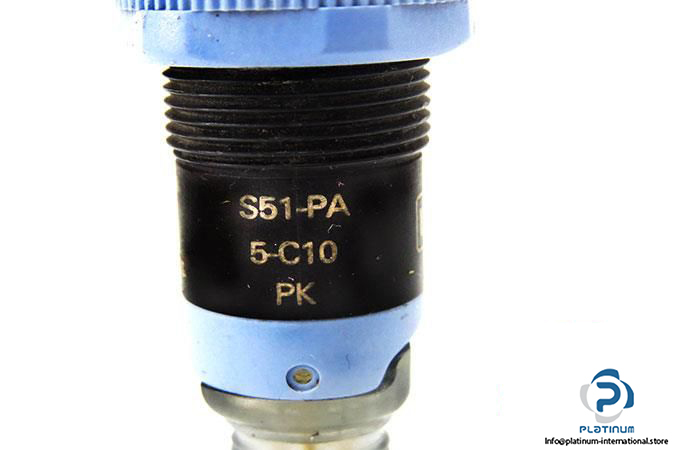

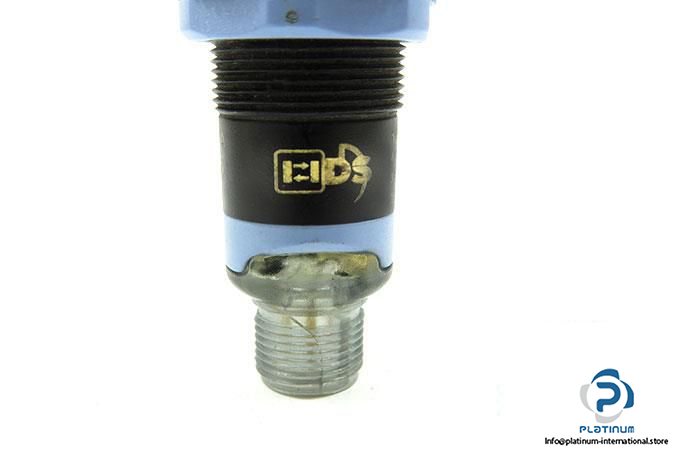

Datasensor S51-PA-5-C10-PK Short Diffuse Proximity Sensor

Manufacturer: DATASENSOR

Type: PHOTOELECTRIC SHORT DIFFUSE PROXIMITY SENSOR

Model: S51-PA-5-C10-PK

MRN: 014839

Optic: Axial

Operating Distance: 0 … 10 cm

Operating Mode: Dark/Light selectable

Power Supply: 10 … 30 VDC

Ripple: ≤ 2 Vpp

Current Draw: ≤ 35 mA

Light Emission: Infrared LED 880 nm

Output: NO

Output Current: ≤ 100Ma

Response Time: 1ms

Switching Frequency: ≤ 500Hz

Connection: M12 4-Pole Connector

Electrical Protection: Class 2

Mechanical Protection: IP67

Operating Temperature: -25 … +55 °C

Condition: Used
