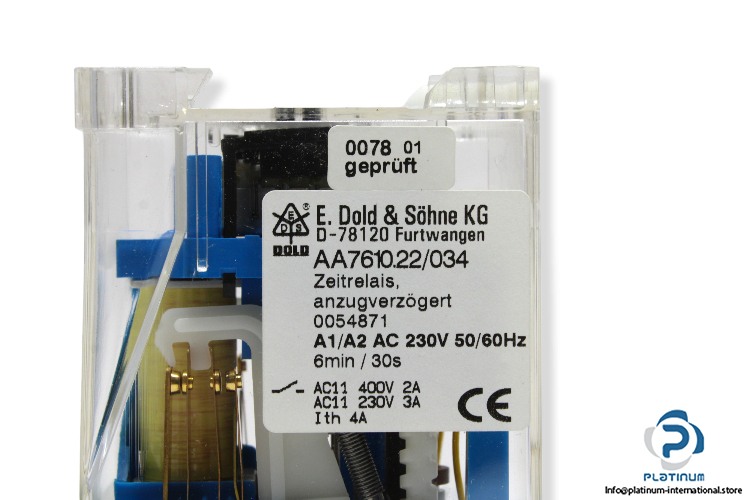

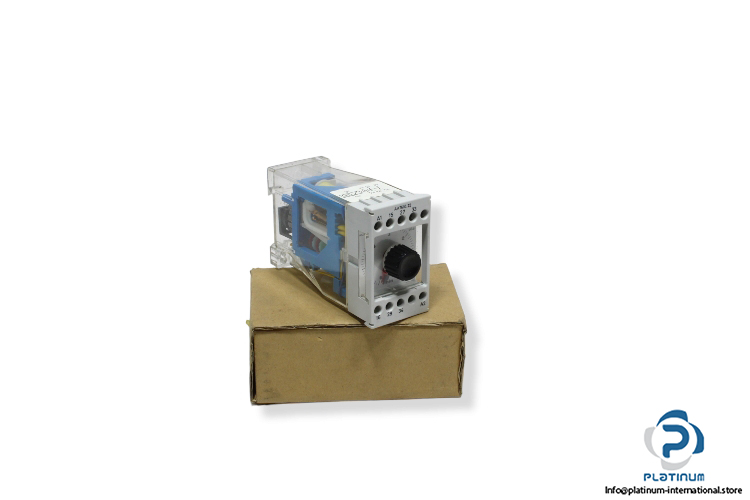

Dold AA7610.22/034 Timer Relay

Manufacturer: DOLD

Type: Timer Relay

Model: AA7610.22/034

Part No.: 0054871

Applications: Time dependent controls

Nominal Voltage: 230 V AC

Rated Operational Current : (AC-11, 400 V) 2 A , (DC-11, 230 V) 3 A, (I-th) 4 A

Time range: 6 min … 30 S

Contacts: 1 NC contact, delayed / 1 NO contact, delayed / 1 NO contact, instantaneous

Contact material: AgNi + 0.2 μm Au

Frequency: 50 … 60 Hz

Flush mounting: 2 clamps with screws

Degree of protection (terminal): IP20

Operation Temperature: – 20 … +55 °C

Dimension: 45 x 77 x 125 mm
