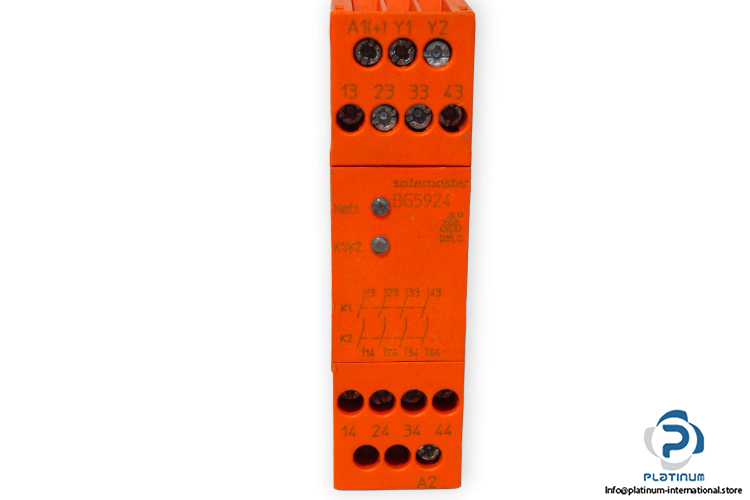

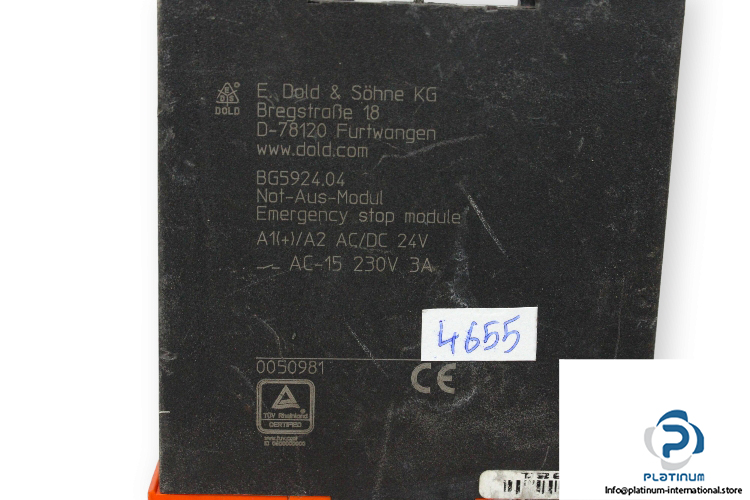

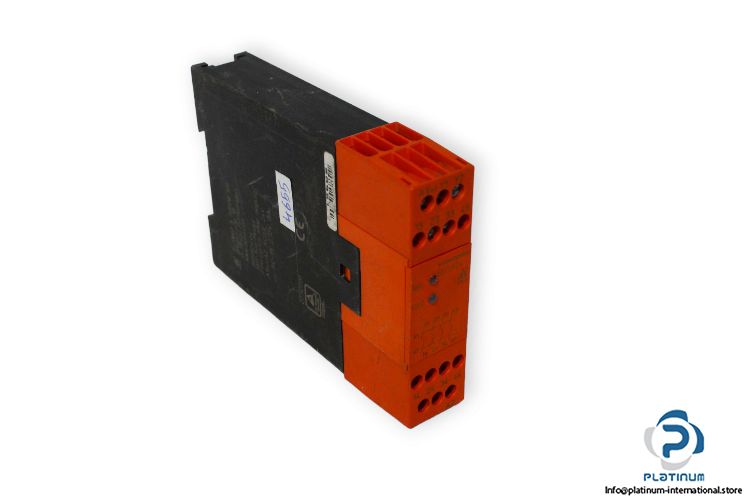

Dold BG5924.04 Emergency Stop Module
Manufacture: Dold
Type: Emergency Stop Module
Model: BG5924.04
Art. No.: 0050981
Nominal voltage UN: 24 V AC/DC
Nominal frequency of UN: 50/60 Hz
Nominal consumption: 1,4 W/ 3 VA
Contact rating: 4 NO
Switching capacity- AC-15: 230 V AC,3 A
Operation temperature: -25 … 55°C
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Dimensions: 22.5 x 84 x 121 mm
