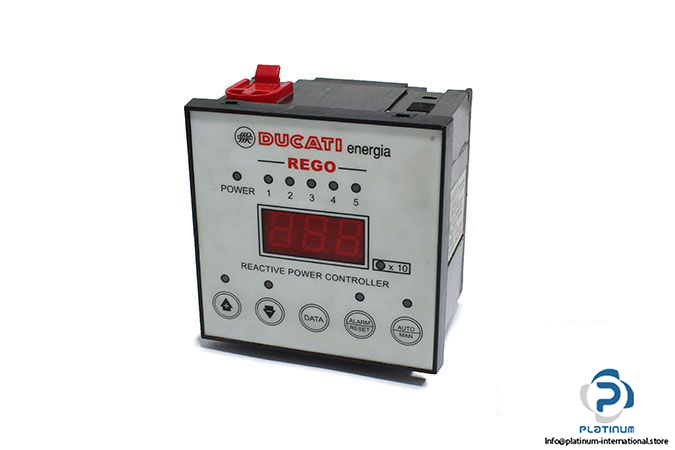

Ducati Rego 5 Reactive Power Controller

Manufactures: DUCATI

Type: Reactive Power Controller

Model: REGO 5

Part No.: 315.98.5040

Voltage: 230 … 400 VAC

Frequency: 50/60 Hz

Input:

Rated Current: 5 A

Operating Current Range: 0.2 … 5 A

Consumption: max. 0.5 VA

Input power: max. 8 VA

Outputs:

Number of Outputs: 5/7/12

Contact Status: N/O

Nominal Contact Capacity: 5 A, 250 V

Voltage Rating: 250 VAC

Terminal Type: screw terminal

Protection Rating: IP40

Operating Temperature: 0…+60°C

Dimensions: 96 X 96 X 75mm

Weight: 0.6 Kg
