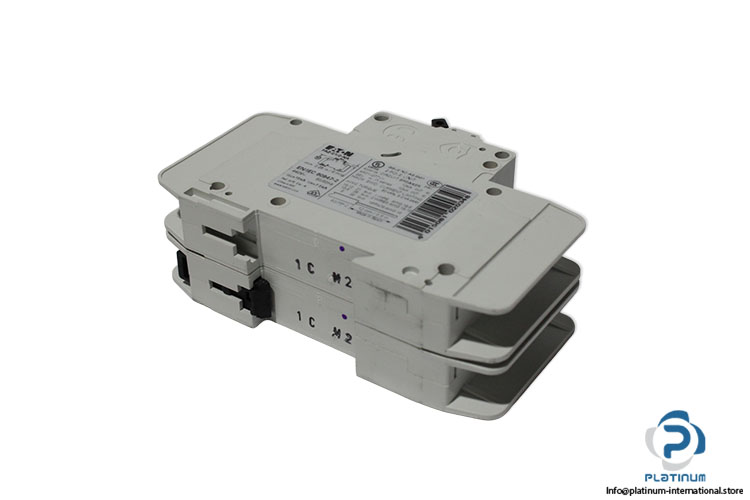

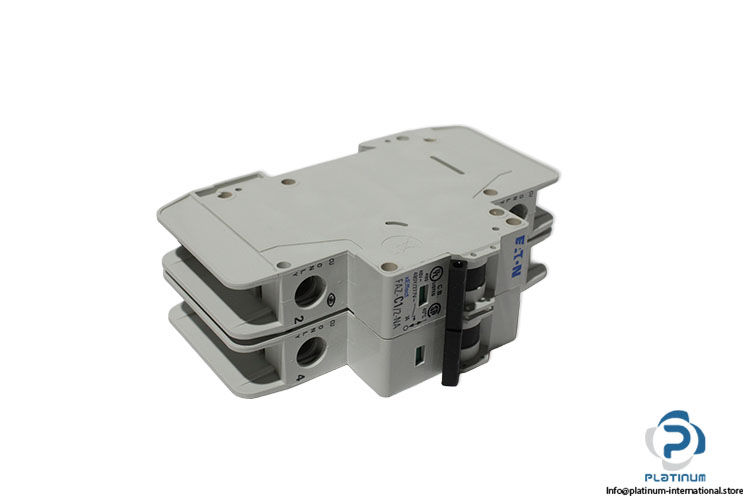

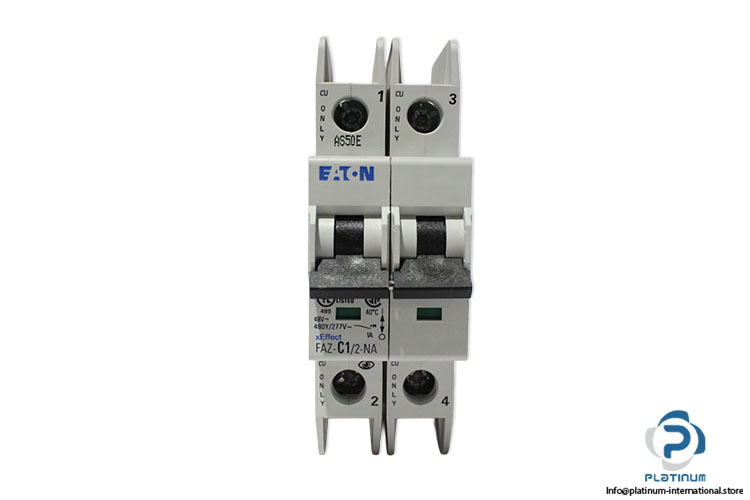

Eaton FAZ-C1/2-NA Miniature Circuit Breaker
Nuevo
En stock1 unidadListo para enviar
Miniature Circuit Breaker 2-pole EATON miniature circuit breaker with C tripping characteristic, 1 A rated current, and 15 kA switching capacity, designed for industrial electrical circuit protection.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | 102158 |
| Number of poles | 2 |
| Tripping characteristic | C |
| Rated current | 1 A |
| Rated operational voltage | 60V DC, 440V AC |
| Rated insulation voltage | 440V |
| Rated switching capacity (Icu) | 15 kA |
| Short-circuit breaking capacity (Ics) | 7,5 kA |
| Rated short-circuit breaking capacity Icn at 400 V | 0 kA |
| Product range | FAZ-NA |
| Tightening torque | max. 2,4 N/m |
| Frequency | 50 – 60 Hz |
| Terminals top and bottom | Twin-purpose terminals |
| Mounting width per pole | 17,7 mm |
| Enclosure height | 105 mm |
| Degree of Protection | IP20, IP40 |
| Operating ambient temperature | -25 to 75 °C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093857 |
| Weight | 0,26 |
