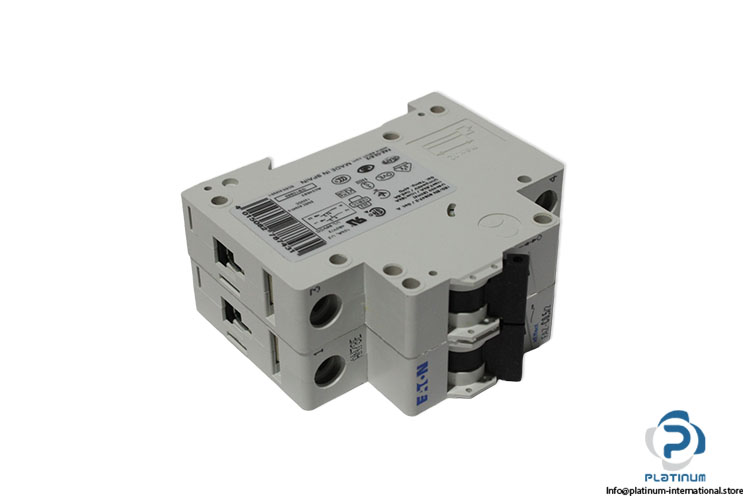

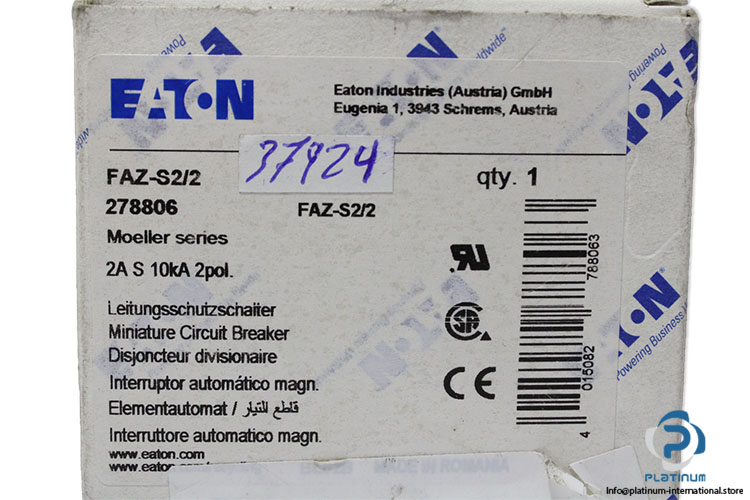

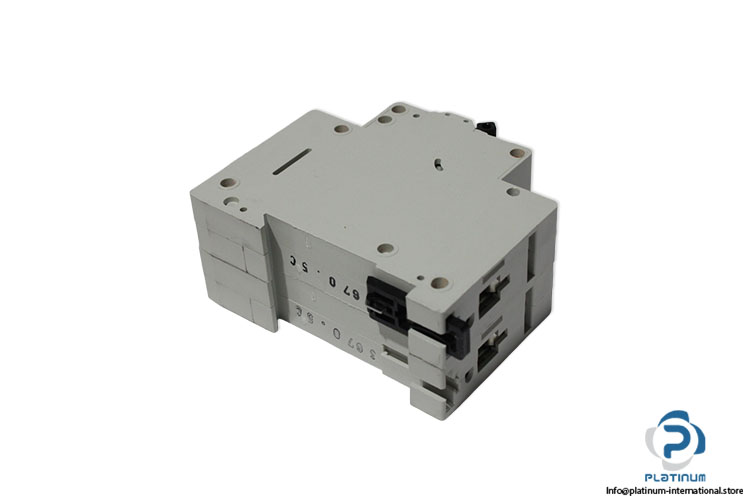

Eaton FAZ-S2/2 Miniature Circuit Breaker
Nuevo
En stock1 unidadListo para enviar
Miniature Circuit Breaker EATON 2-pole miniature circuit breaker with 2 A rated current, S tripping characteristic, and 10 kA rated switching capacity, designed for industrial electrical circuit protection.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | 278806 |
| Number of poles | 2 |
| Tripping characteristic | S |
| Rated current | 2 A |
| Rated operational voltage | 60V DC, 240-415 V AC |
| Rated insulation voltage | 440V |
| Rated switching capacity (Icu) | 10 kA |
| Short-circuit breaking capacity (Ics) | 5 kA |
| Rated short-circuit breaking capacity Icn at 400 V | 0 kA |
| Product range | FAZ |
| Frequency | 50 – 60 Hz |
| Terminals top and bottom | Twin-purpose terminals |
| Mounting width per pole | 17,5 mm |
| Enclosure height | 80 mm |
| Degree of Protection | IP20, IP40 |
| Operating ambient temperature | -40 to 75 °C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093858 |
| Weight | 0,24 |
