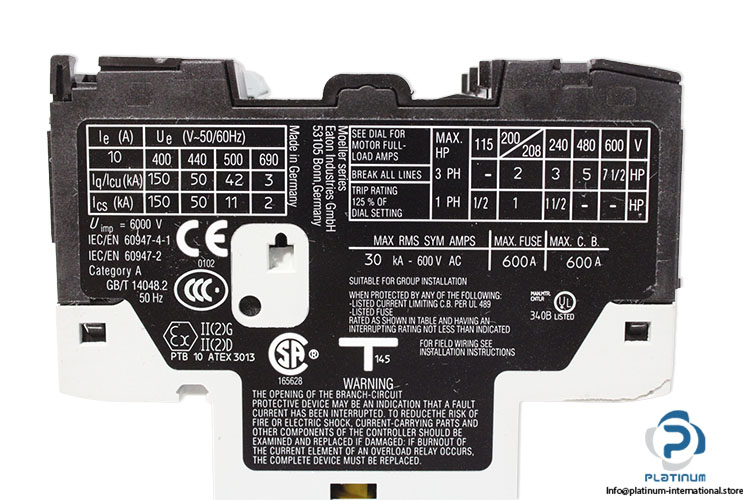

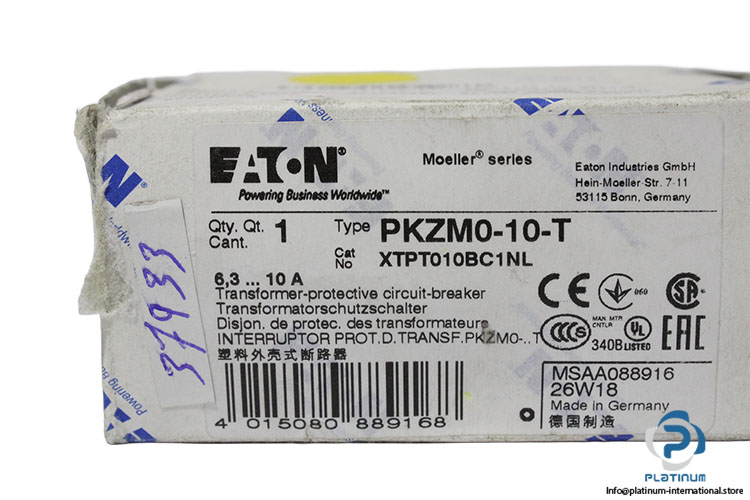

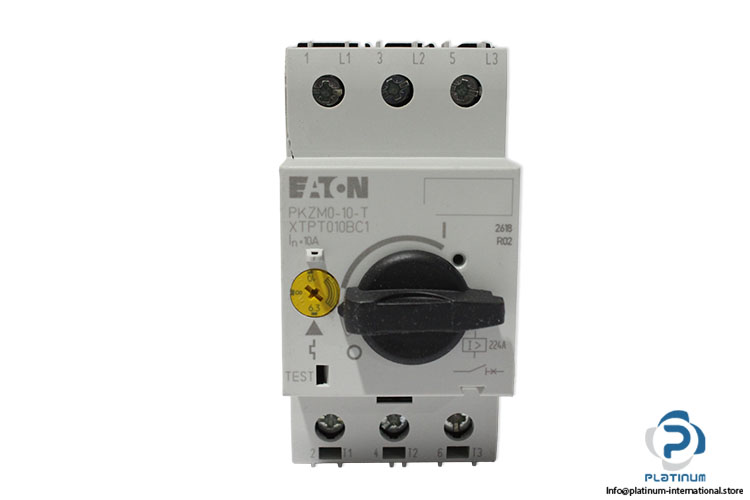

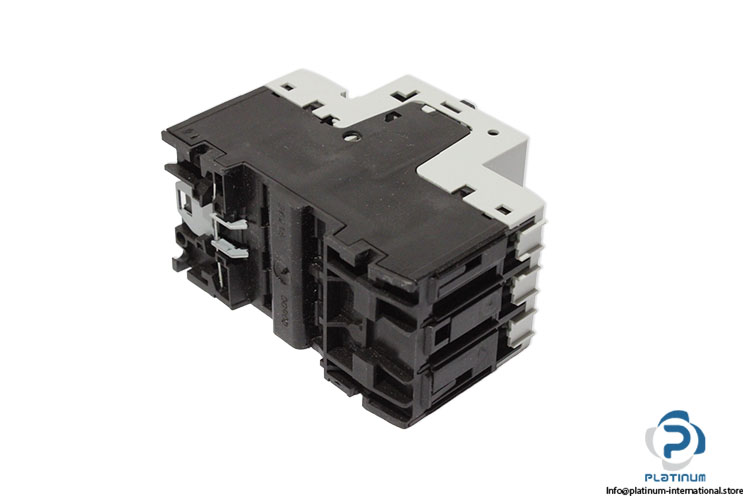

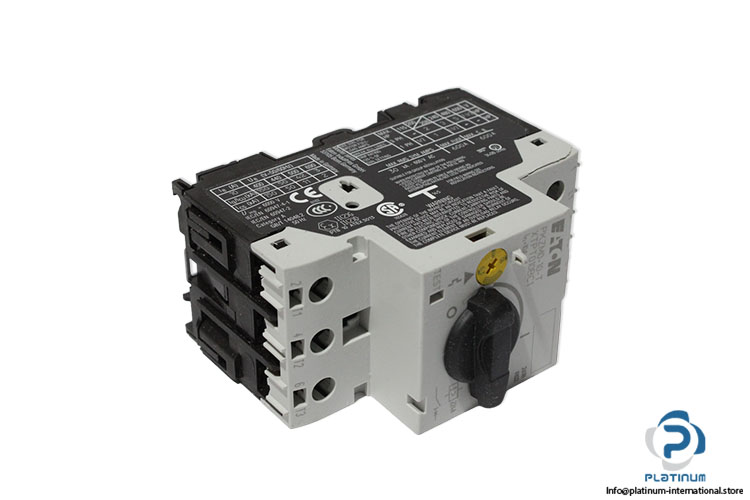

Eaton PKZM0-10-T Transformer-Protective Circuit-Breaker
Nuevo
En stock1 unidadListo para enviar
Transformer-Protective Circuit-Breaker 3-pole EATON transformer-protective circuit-breaker with 6.3 to 10 A adjustable current range, 690 V operational voltage, and high short-circuit breaking capacity for industrial electrical protection applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Rated Operational Voltage (Ue) | 690 V |
| Rated Operational Current | 10 A (6,3 to 10 A) |
| Frequency | 50 … 60 Hz |
| Rated Impulse withstand Voltage (Uimp) | 6000 V AC |
| Rated Operational Power AC-3 | (380/400 V: 4 kW) |
| Rated short-circuit breaking capacity (Ics) | (400V AC: 150 kA), (440V AC: 50 kA) |
| Breaking Switching Capacity (Icu) | (400V AC: 150 kA), (440V AC: 50 kA) |
| No. of Poles | 3-Pole |
| Protection Class | IP20 |
| Connection | Screw terminals |
| Ambient Temperature | -25 … 55 °C |
| Dimensions | 76 x 45 x 93 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093867 |
| Weight | 0,31 |
