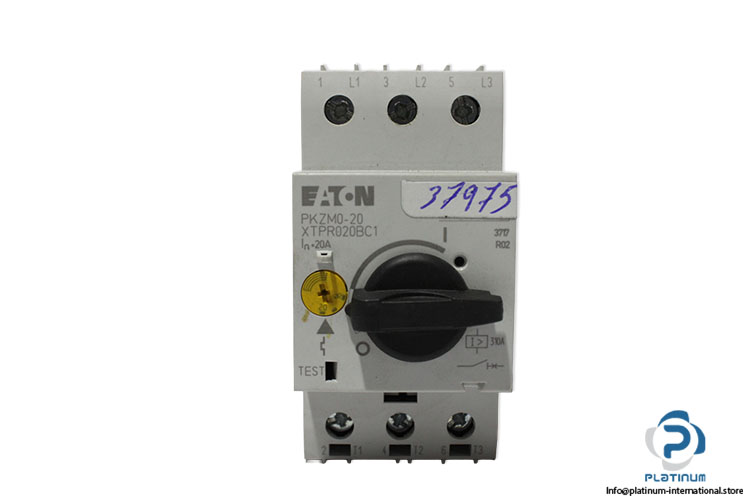

Eaton PKZM0-20 Transformer-Protective Circuit Breaker
Nuevo
En stock8 unidadesListo para enviar
Transformer-Protective Circuit Breaker EATON 3-pole circuit breaker rated at 20 A and 690 V, designed for reliable transformer protection and switching in industrial electrical applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Rated Operational Voltage (Ue) | 690 V |
| Rated Operational Current | 20 A |
| Frequency | 50 … 60 Hz |
| Rated Impulse withstand Voltage (Uimp) | 6000 V AC |
| Rated Operational Power AC-3 | (380/400 V: 9 kW) |
| Rated short-circuit breaking capacity (Ics) | (400V AC: 38 kA), (440V AC: 3 kA) |
| Breaking Switching Capacity (Icu) | (400V AC: 50 kA), (440V AC: 10 kA) |
| Power Loss | 5,82 W |
| No. of Poles | 3-Pole |
| Protection Class | IP20 |
| Connection | Screw terminals |
| Ambient Temperature | -25 … 55 °C |
| Dimensions | 76 x 45 x 93 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093904 |
| Weight | 0,29 |
