Eltra EL58B1024S5L10X6MR Incremental Encoder
Usado
En stock1 unidadListo para enviar
El codificador incremental ELTRA EL58B1024S5L10X6MR es un codificador incremental robusto con resolución de 1024 ppr, eje sólido de 10 mm, alimentación de 5 V CC y conector MIL, diseñado para aplicaciones de alta resistencia mecánica.
102410mmConnectorEL58B1024S5L10X6MREltraEncoderFlangeHighIncrementalIndustrialIP54MILOpticalPPRResistanceshaftSynchronous
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

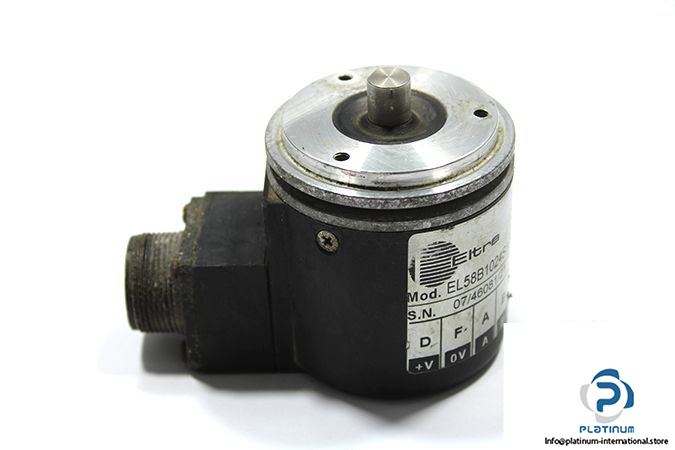

ELTRA EL58B1024S5L10X6MR INCREMENTAL ENCODER
The ELTRA EL58B1024S5L10X6MR is a high-resolution incremental encoder engineered for demanding industrial environments requiring strong mechanical resistance. Featuring optical sensing technology and a rugged construction, it delivers precise rotational feedback and reliable performance.
Manufacturer: ELTRA
Type: Incremental Encoder
Model: EL58B1024S5L10X6MR

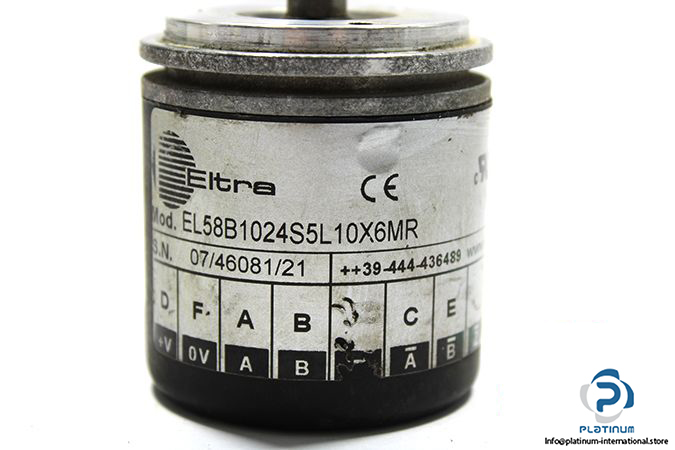

Serial No.: 07/46081/21
| Uses | For applications with height mechanical resistance requirements |
| Shaft Size | 10 mm |
| Shaft Type | Solid Shaft |
| Rotation Speed | Max. 6000 rpm |

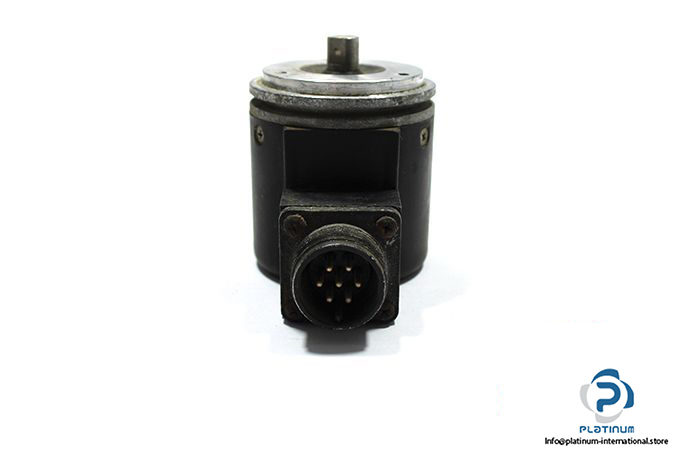

| Output Type | MIL Connector |
| Direction Type | Radial |
| Housing Diameter | 58 mm |
| Max Output Frequency | 300kHz |
| Operating Temperature | 0 / 60 °C |
| Type of Sensor | Optical |
| Mounting Type | Synchronous Flange |
| Resolution | 1024 ppr |
| Power Supply | 5 V DC |
| Protection Class | IP54 |
