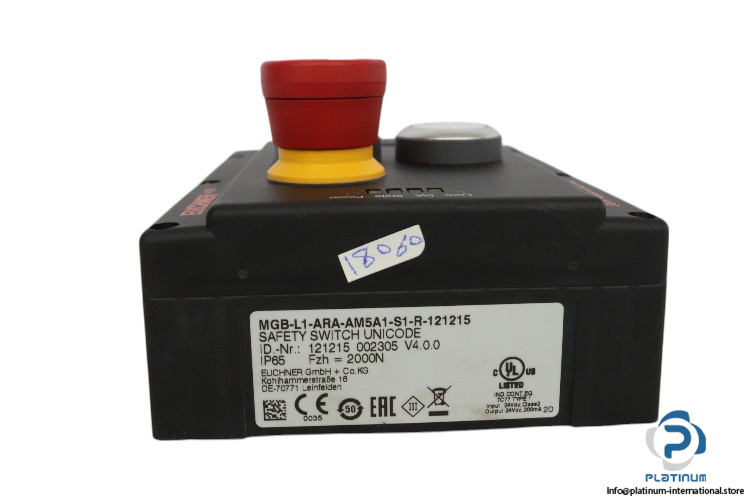

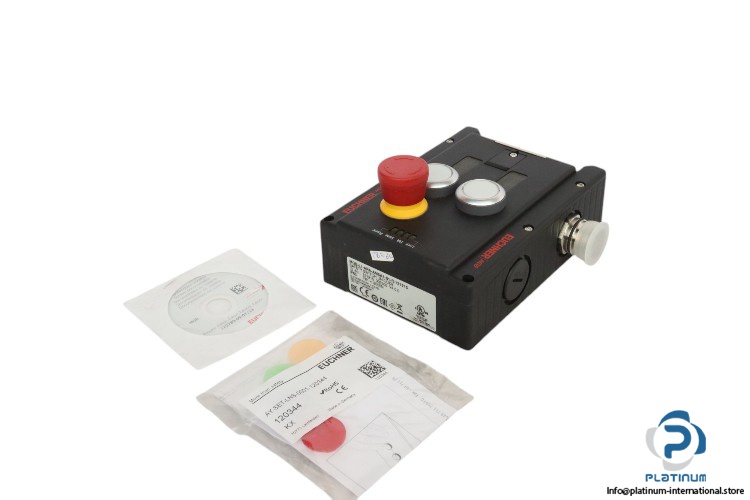

Euchner MGB-L1-ARA-AM5A1-S1-R-121215 Safety Switch Unicode

EUCHNER SAFETY SWITCH UNICODE

The Euchner Safety Switch Unicode (Model: MGB-L1-ARA-AM5A1-S1-R-121215, Order No. 121215) is designed to ensure maximum safety in industrial applications with features like guard locking with guard lock monitoring, emergency stop according to ISO 13850, and transponder coding for enhanced security. This device is ideal for applications requiring reliable monitoring and control, including safety-critical systems and emergency shutdown scenarios.

Manufacturer: Euchner

Type: Safety Switch Unicode

Model: MGB-L1-ARA-AM5A1-S1-R-121215

Order No.: 121215

Technical Specifications

• Guard Locking with Guard Lock Monitoring
• Series Connection: Can be connected in series with other AR devices (e.g., CES-AR and CET-AR)
• Emergency Stop: According to ISO 13850

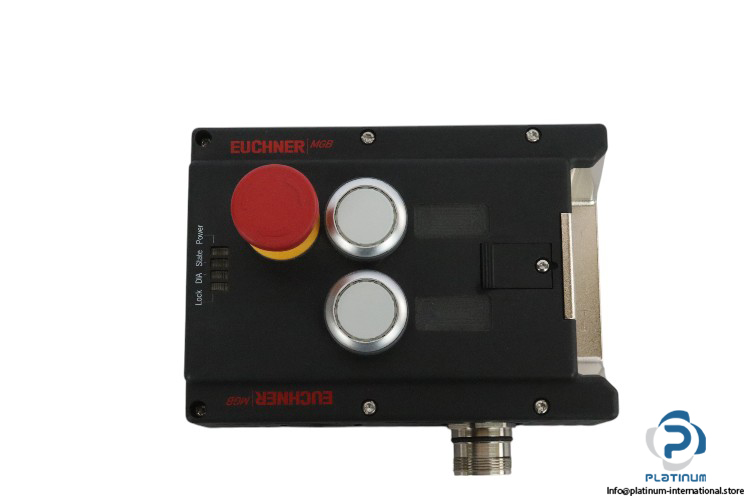

• Pushbuttons: 2 illuminated pushbuttons

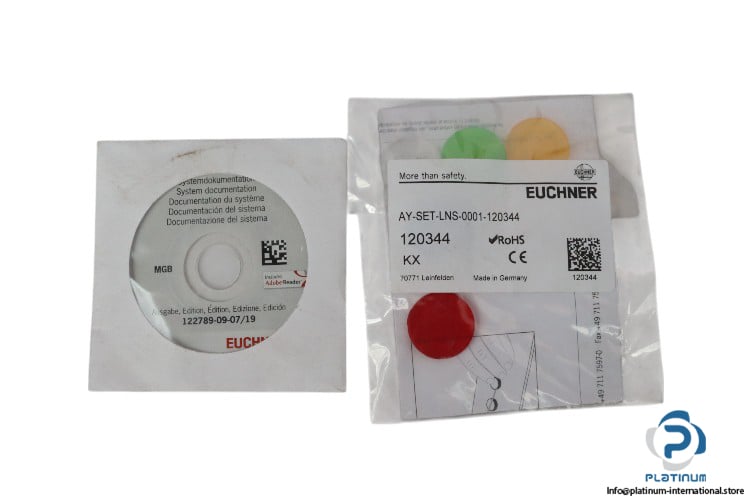

• Lens Set: 6 pcs included
• Adhesive Labels: Included
• Plug Connector: RC18 included
• Rated Insulation Voltage (Ui): 30 V
• Rated Impulse Withstand Voltage (Uimp): 1.5 kV
• Utilization Category DC-13: 24 V 200 mA
• Transponder Coding: Unicode
• Solenoid Control Input: IMP1, IMP2, IMM
• Test Pulse Duration (max.): 5 ms
• Test Pulse Interval (min.): 100 ms
• Breaking Capacity Max: 0.25 W
• Switching Current: 1 … 10 mA
• Power Supply: 24 V DC
• Emergency Stop:
  • Breaking Capacity Max: 0.25 W
  • Switching Voltage: 5 … 24 V
  • Switching Current: 1 … 100 mA
• Monitoring Outputs (OD, OT, OL, OI): Semiconductor outputs, p-switching, short-circuit-proof
• Output Voltage: UA-2V … UA V DC
• Output Current Max: 50 mA

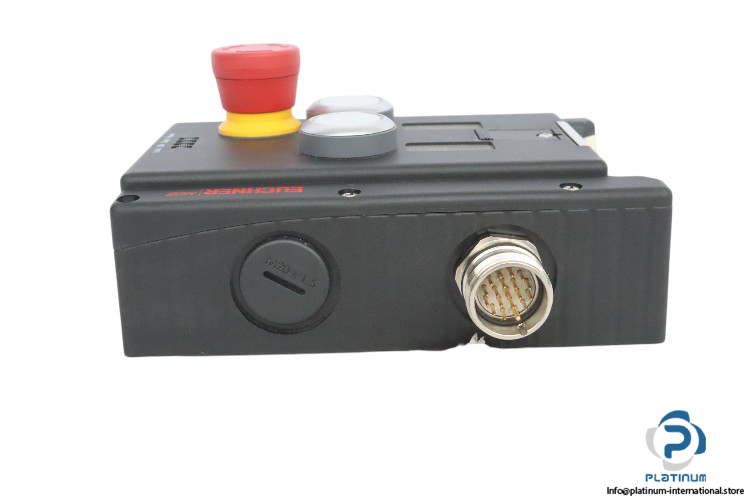

• Connection Type: Plug connector RC18
• Installation Orientation: Door hinge DIN right
• Switching Frequency: 0.25 Hz
• Locking Force (FZh): 2000 N
• Degree of Protection: IP65
• Housing Material: Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel
• Ambient Temperature: -20 to 55 °C
