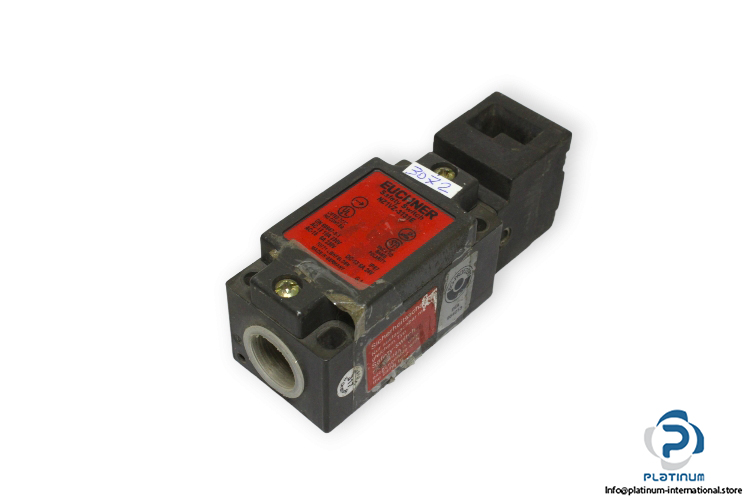

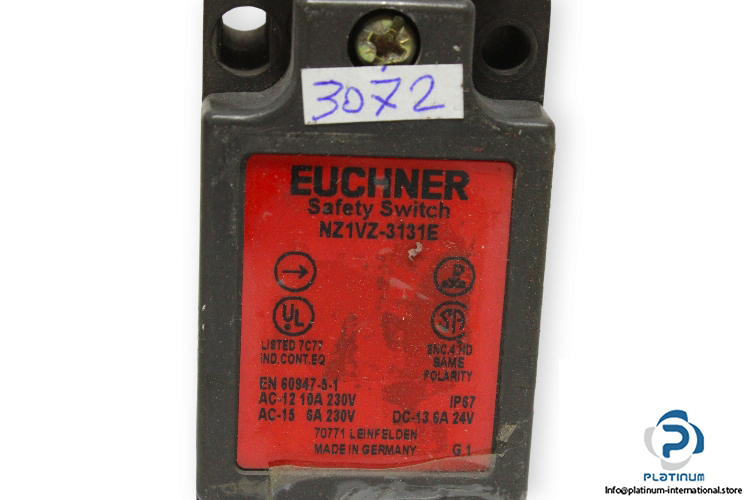

Euchner NZ1VZ-3131E Safety Switch
Manufacturer: EUCHNER
Type: Safety Switch
Model: NZ1VZ-3131E
Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Utilization category:
DC-13 6A 24V
AC-15 6A 230V
thermal rated current Ith: 4 A
Approach speed: max. 20 m/min
Connection: Cable
Extraction force: 35 N
Actuation frequency: max. 1200 1/h
Actuating force: 35 N
Switching principle: Slow-action
Ambient Temperature: -25 … +80 °C
Protection Class: IP67
