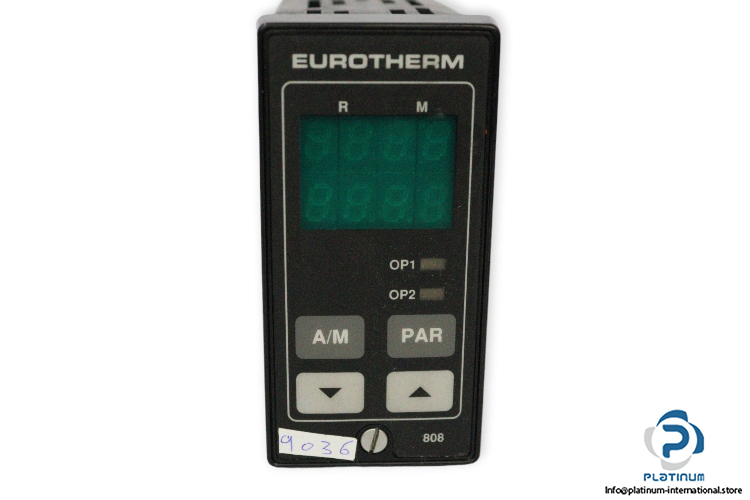

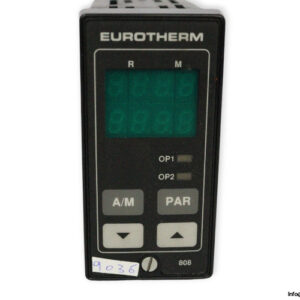

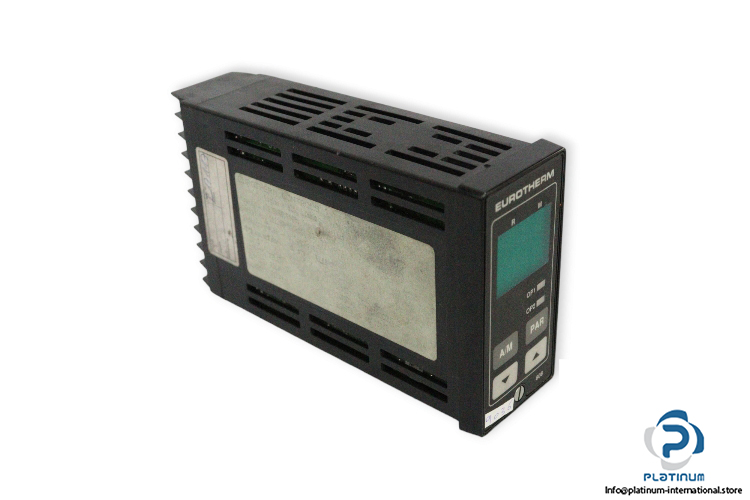

Eurotherm 808 Digital Controller

Manufacturer: Eurotherm
Type: Digital Controller
Model: 808

Supply voltage: 80 … 264 V AC
Frequency: 48 … 62 Hz
Power Consumption: 5 W
Customer Connections: Screw terminals
Mounting: Plug in with panel mounting sleeve – Panel cutout
Upper Display: 4 x 7 segment 7mm high LED indicator
Lower Display: 4 x 7 segment 7mm high LED indicator
Inputs (Thermocouple, RTD): Range – 10 … +50mV
Outputs: Relay (Maximum of 264 V,2A), Triac (Range 80 to 264V, 1A), Logic (18V ± 1V at 10 mA), DC (0 … 20 mA / 4 … 20mA)
Number of programs: One
Dimensions: 96 x 48 x 156 mm
