Festo 3737 Basic Valve Body With Vacuum Actuator
Usado
En stock12 unidadesListo para enviar
45,00$
Valve Body
FESTO LC-3-1/8 basic valve body with 3/2 way function, pneumatic actuation, and integrated VUV vacuum actuator for reliable air control in industrial systems.3/2ActuatedActuatorAirAutomatioBasicBodyControlDirectFestoG1/8IndustrialLC-3-1/8PneumaticPoppetvacuumValveVUVWay
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

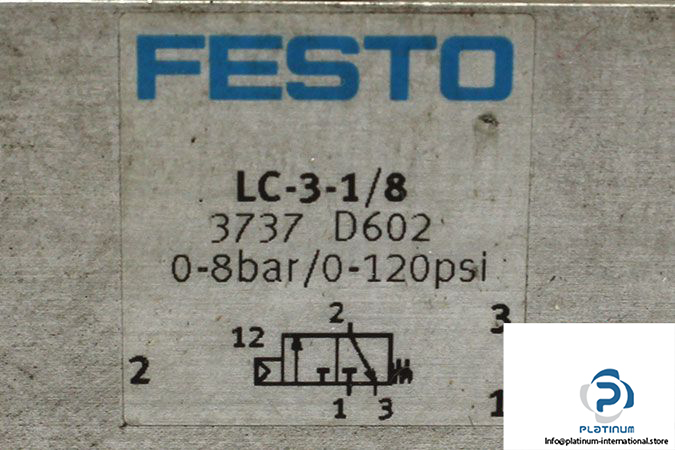

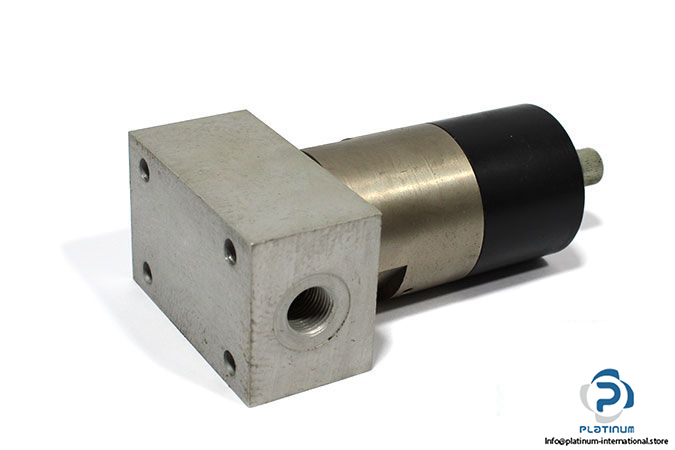

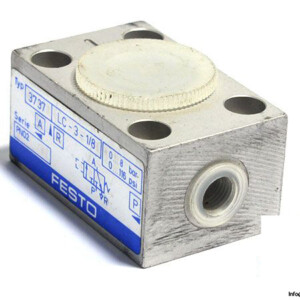

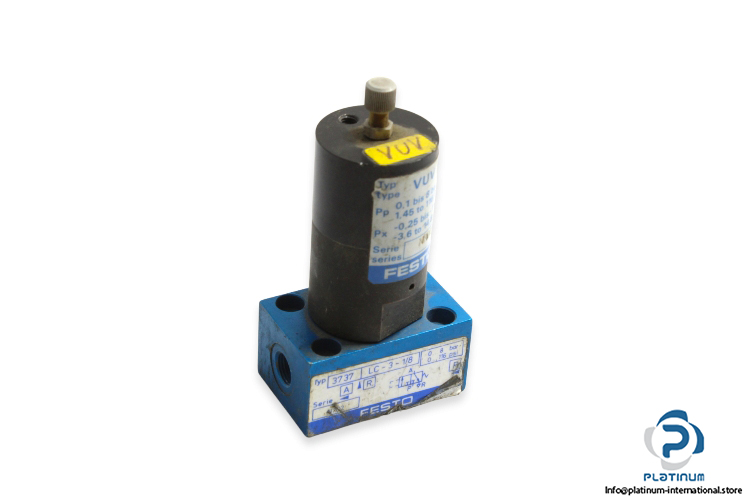

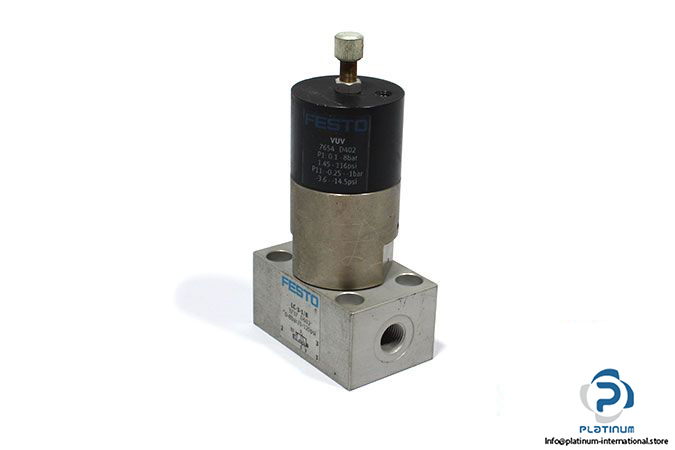

FESTO LC-3-1/8 Basic Valve Body with VUV Vacuum Actuator
The FESTO LC-3-1/8 basic valve body is a high-performance pneumatic component designed for precise air control in industrial automation systems. Combined with the FESTO VUV vacuum actuator, this unit delivers reliable switching performance, efficient airflow, and dependable operation in demanding environments.
Manufacturer: FESTO
Type: Basic Valve Body
Model: LC-3-1/8
Part No.: 3737
Attachment “ FESTO VUV Vacuum Actuator
Technical Information
| Fluid | Air |
| Design | Poppet Valve, Directly Actuated In One Direction, With Return Spring |
| Function | 3/2 Way |
| Type Of Actuation | Pneumatically |
| Operating Pressure | 0 / 8 Bar |
| Nominal Flow Rate | 80 L/Min |
| Pneumatic Connection | G1/8 |
| Part No. | 7654 |
| Fluid | Compressed Air |
| Operating Pressure | -0.25 / 1 Bar / -45 / 116 PSI |
| Pilot Pressure | 0.1 / 8 Bar / 3.6 / 14.5 PSI |
