Fuji Electric VFC500A-7W Ring Compressor
COMPRESOR DE ANILLO Compresor de anillo Fuji Electric con diseño de canal único, motor de 2,5 Hp y caudal de 154 m³/min, diseñado para un movimiento de aire robusto en sistemas industriales basados en vacío y presión.

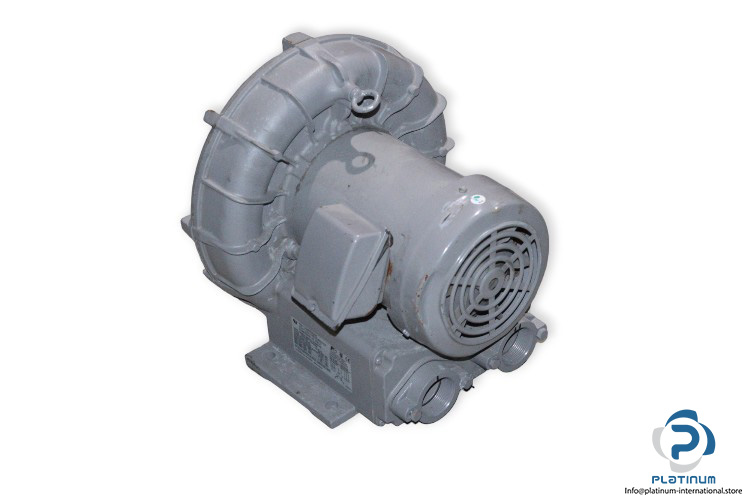

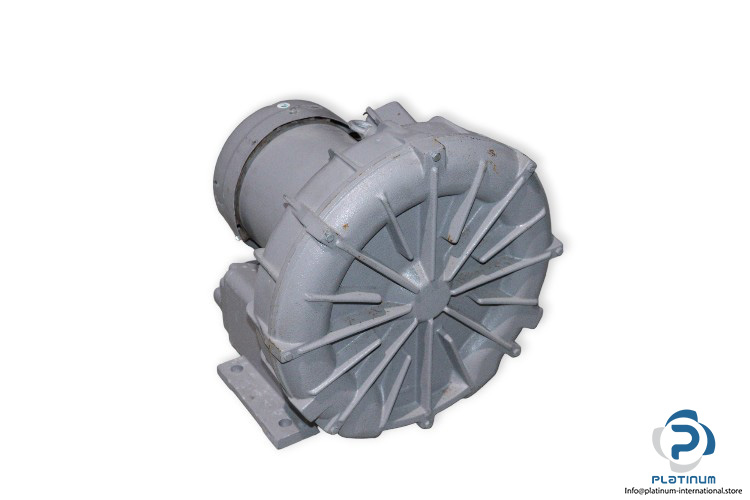

FUJI ELECTRIC VFC500A-7W RING COMPRESSOR
This high-performance ring compressor from Fuji Electric is designed for industrial air handling and vacuum applications. With a single-channel design, dual-frequency support, and a 2.5 Hp motor, it ensures consistent pressure and high flow output across a range of operating conditions.

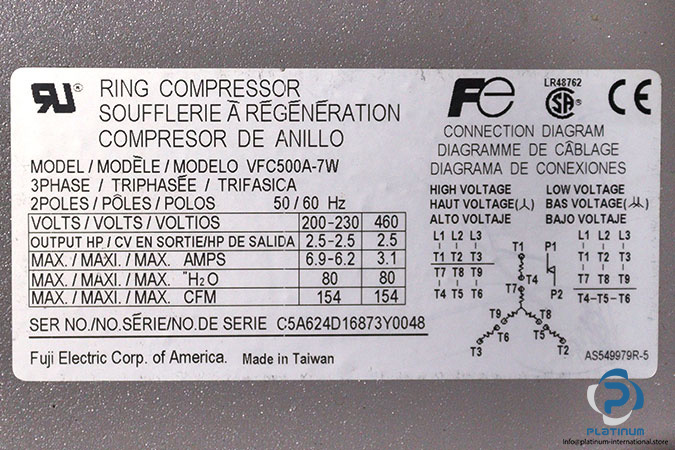

Manufacturer: Fuji Electric
Type: Ring Compressor
Model: VFC500A-7W
Serial No.: C5A624D16873Y0048
Channel Design: Single
Poles: 2
| Rated Pressure [mbar] | 80/80 |
| Supply Voltage [V] | 200 to 230/460 |
| Horsepower [Hp] | 2.5 to 2.5/2.5 |
| Max. Current [A] | 6.9 to 6.2/3.1 |
| Frequency [Hz] | 50/60 |
| Max. Flow Rate [m³/min] | 154/154 |
