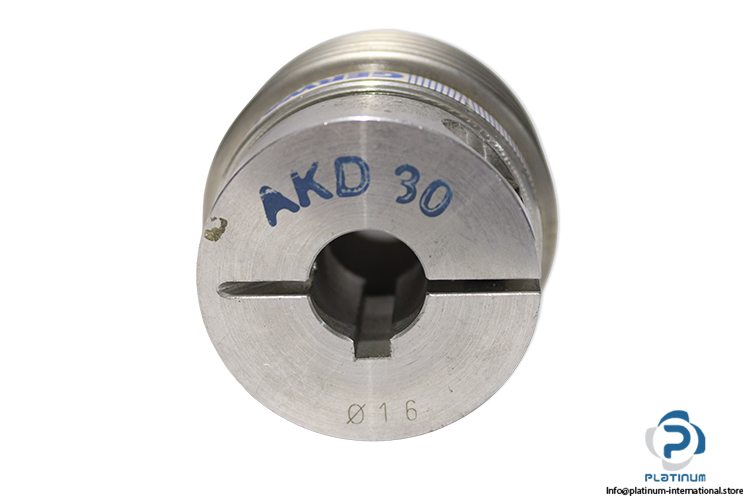

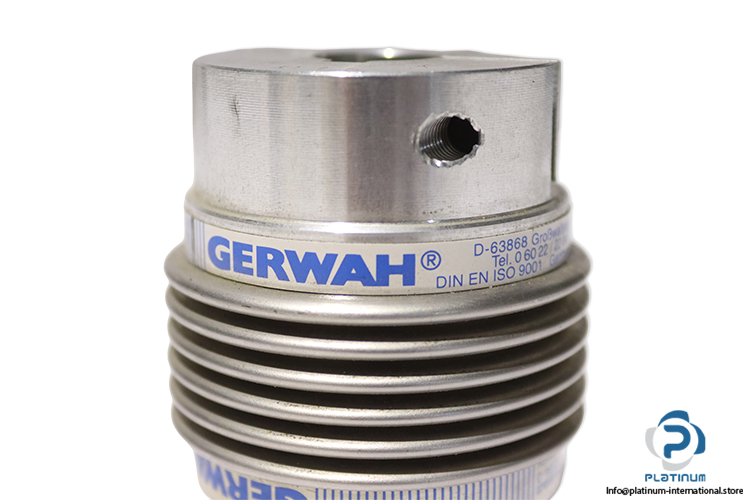

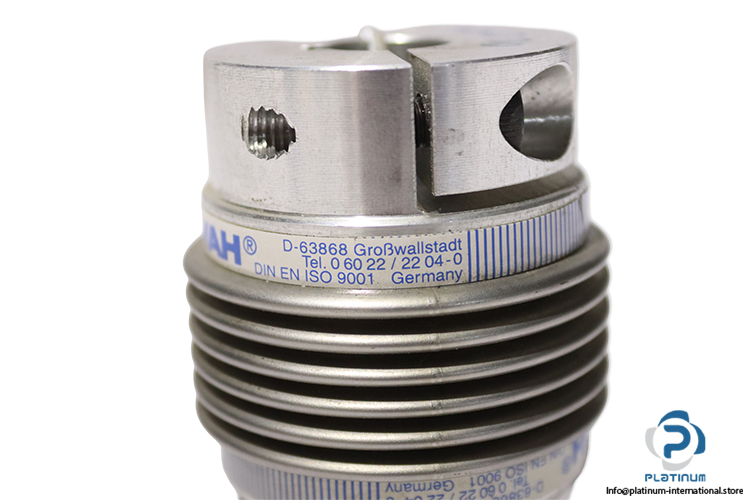

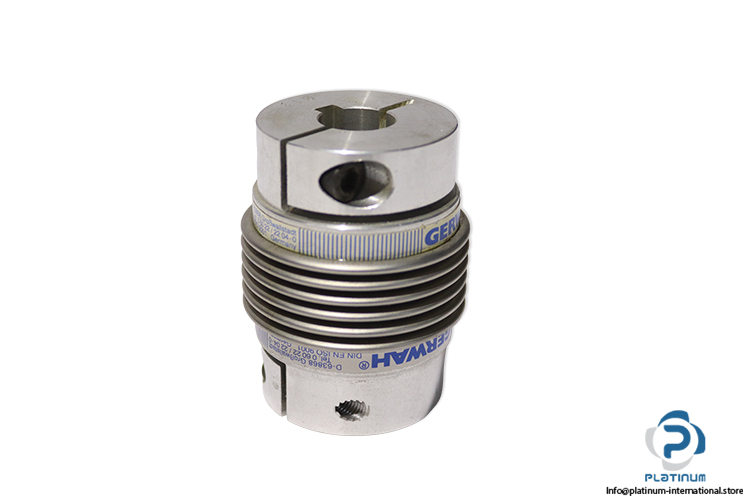

Gerwah AKD30-16-18 Bellows Coupling
Acoplamiento de fuelle metálico Gerwah AKD30-16-18 sin juego con orificios de 16/18 mm, capacidad de par de 36 Nm y alta rigidez torsional para sistemas de control de movimiento de precisión. Ideal para servomotores, máquinas CNC y aplicaciones de posicionamiento de alta precisión.
Gerwah AKD30-16-18 Backlash-Free Metal Bellows Coupling
The Gerwah AKD30-16-18 is a precision backlash-free metal bellows coupling designed for accurate torque transmission in servo-driven and motion control applications. Its compact construction and high torsional stiffness make it suitable for dynamic and positioning systems.
Manufacturer: Gerwah
Type: Backlash-Free Metal Bellows Coupling
Model: AKD30-16-18
Recommended for servo motors, precision positioning systems, CNC machinery, and automation equipment requiring zero-backlash torque transmission.

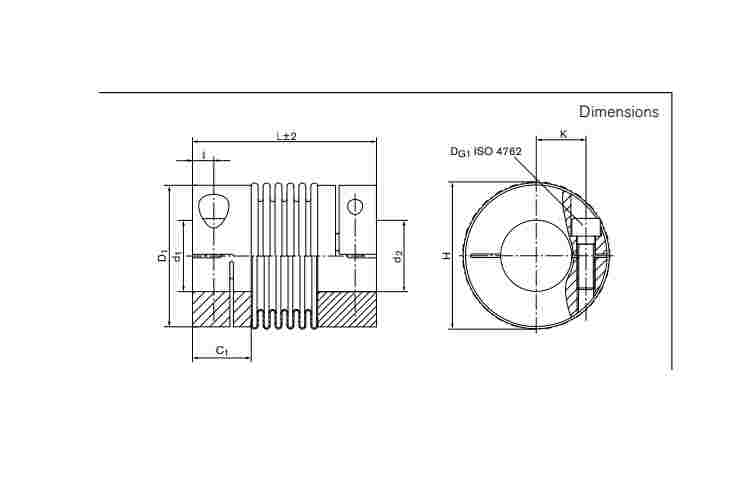

| Size | 30 |
| Bore Diameter d1/d2 | 16 mm / 18 mm |
| Outer Diameter | 47 mm |
| Total Length | 72 mm |
| Torque | 36 Nm |
| Max. Speed | 10200 rpm |
| Radial Spring Stiffness | 220 N/mm |
| Axial Spring Stiffness | 30 N/mm |
| Shaft Fastening Method | Clamping hubs to the shafts using radial clamping screws |
| Hub Material | Aluminum |
| Bellows Material | Stainless Steel |
| Working Temperature | -30 to +100 °C |
