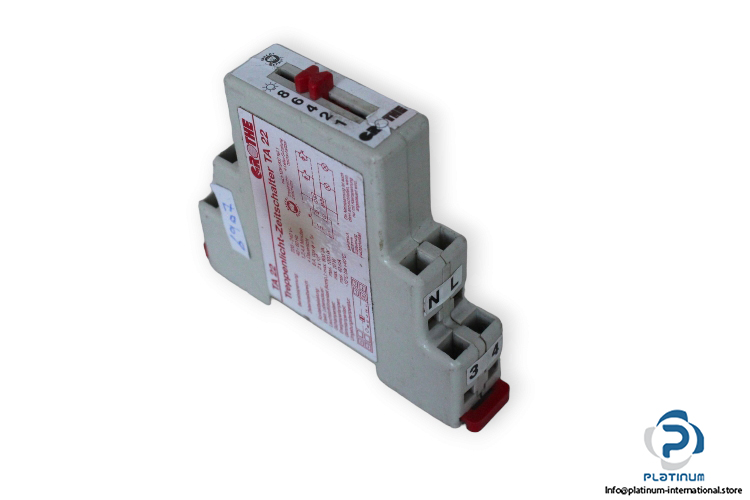

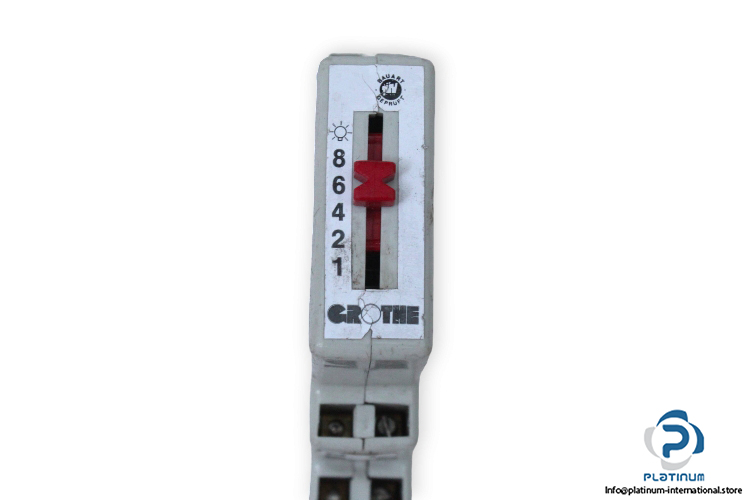

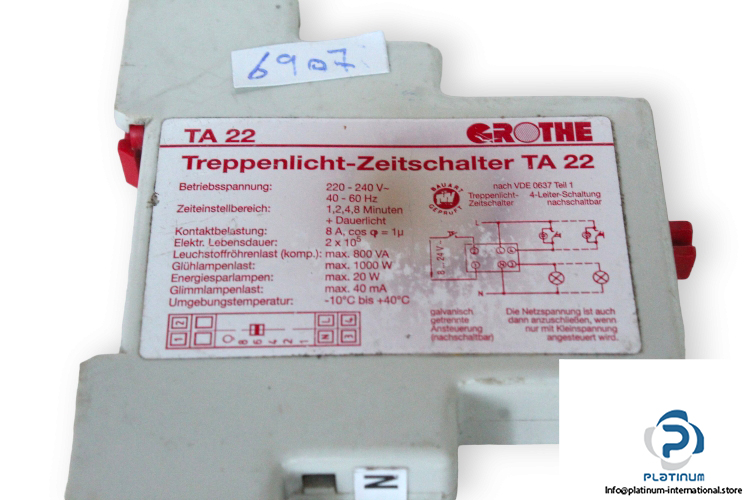

Grothe TA22 Lighting Timer Relay

Manufacture: Grothe
Type: Lighting Timer Relay
Model: TA22

Operating Voltage: 220 … 240 V AC
Frequency: 40 … 60 Hz
Time setting range: 1,2,4,8 minutes
Contact load: 8 A
Control voltage: 8 … 24 V
Bulb load: 1000 W max.
Energy saving lamp: 20 W max.
Glow lamp load: 40 mA max.
Contacts type: 2 N/O
Operation temperature: -10 … 40°C
