Hawe VHR1 E2/E2 Directional Seated Valve

Name: HAWE VHR1 E2/E2 DIRECTIONAL SEATED VALVE
SKU: 1095010
Availability: LimitedAvailability

hawe-vhr1-e2-e2-directional-seated-valve(used)

hawe-vhr1-e2-e2-directional-seated-valve(used)-1

Usado

En stock1 unidadListo para enviar

Directional Seated Valve

HAWE VHR1-E2/E2 manually actuated directional seated valve with 12 lpm flow rate and up to 700 bar operating pressure. Designed for high-pressure hydraulic applications with G1/4 pipe connection.

Fabricante

HAWE

SKU

1095010

Categoría

Directional Control Valves

Condición

Usado

Bank Directional G1/4 Hawe High Hydraulic Industrial Manual Pressure Seated Valve VHR1

Inventario Masivo

Envío global

Soporte experto

Calidad Garantizada

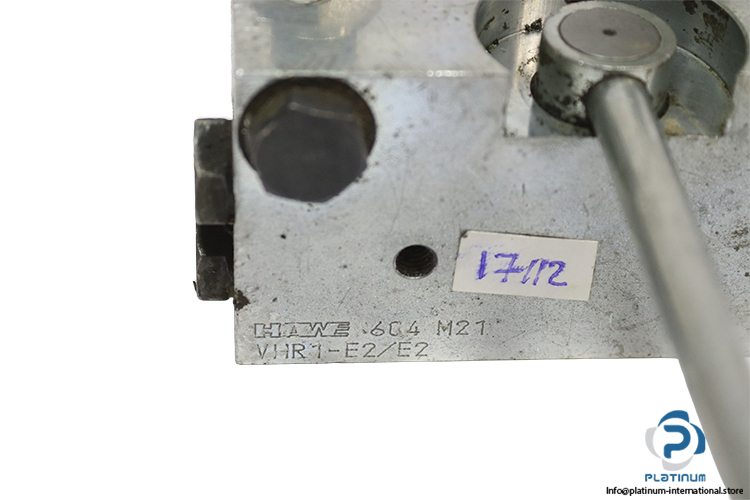

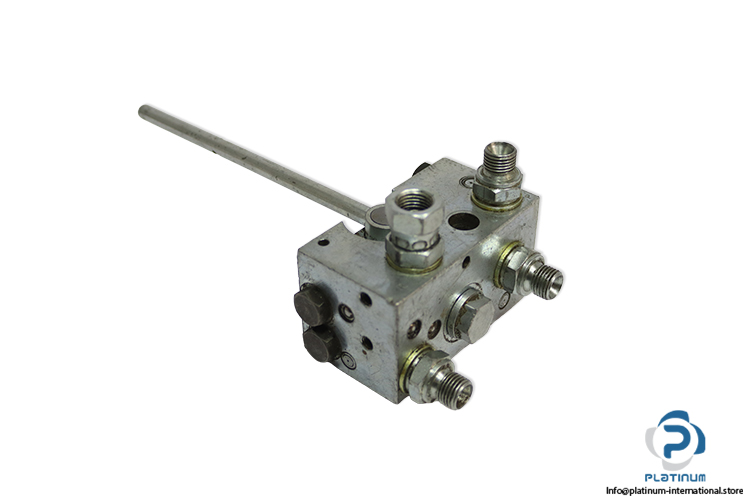

HAWE VHR1-E2/E2 Directional Seated Valve

The HAWE VHR1-E2/E2 is a high-pressure directional seated valve designed for hydraulic systems requiring precise manual control and exceptional pressure resistance. This valve bank configuration ensures reliable switching performance even under extreme operating conditions.

Manufacturer: HAWE

Type: Directional Seated Valve / Directional Valve Bank

Model: VHR1-E2/E2

Part No.: 604 M21

Type of Actuation	Manually
Size	1
Pressure Fluid	Hydraulic Fluid
Flow Qmax	12 lpm
Operating Pressure pmax	700 bar
Connection Size	Pipe Connection, G1/4
Ambient Temperature	-40 / +80 °C
Reference Code	1040471 (Edit cTa)
