HBM HLCB1C3 Load Cell
Nuevo
En stock1 unidadListo para enviar

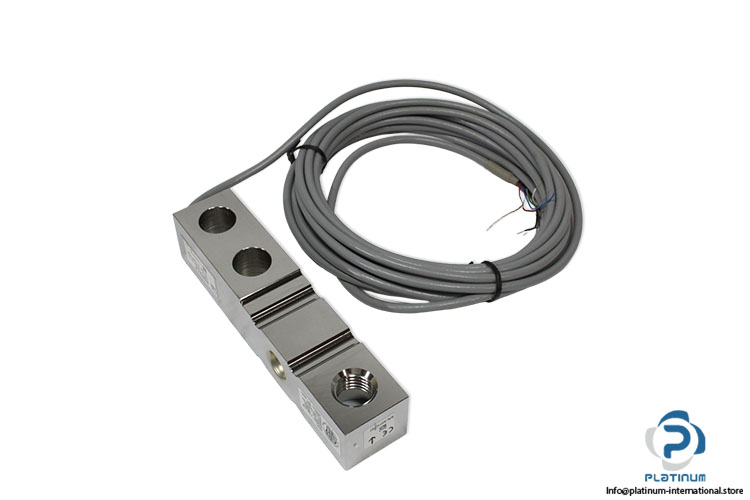

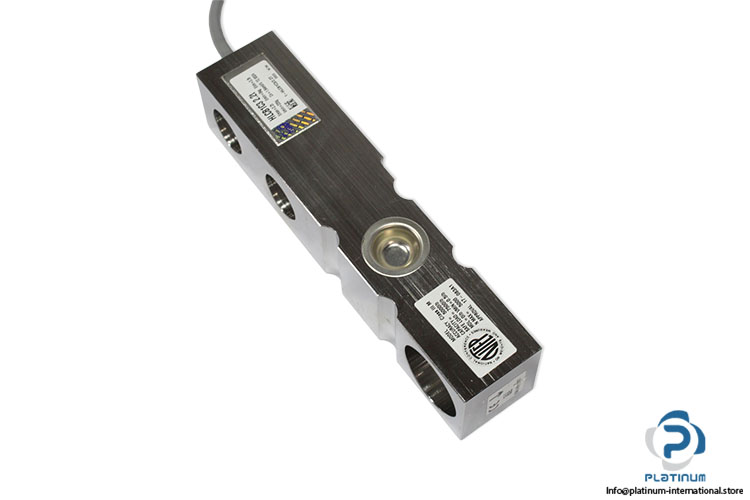

Load Cell HBM HLCB1C3 industrial load cell with 2.2 t maximum capacity, Class III M accuracy, NTEP certification, and high measurement precision for weighing and floor scale applications.
AccuracyCellClassElectronicFloorHBMHighIIIIndustrialLoadMMeasurementNtepScaleSensorSystemweighingweight
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| MNR | 1-HLCB1C3/2.2T |

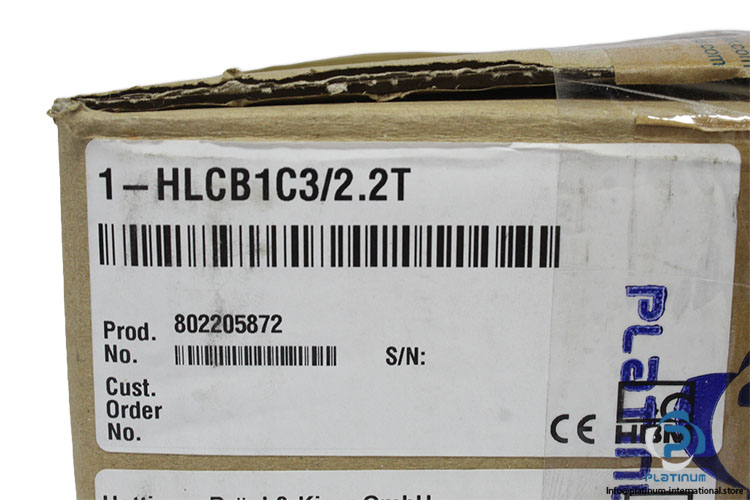

| Part No. | 802205872 |

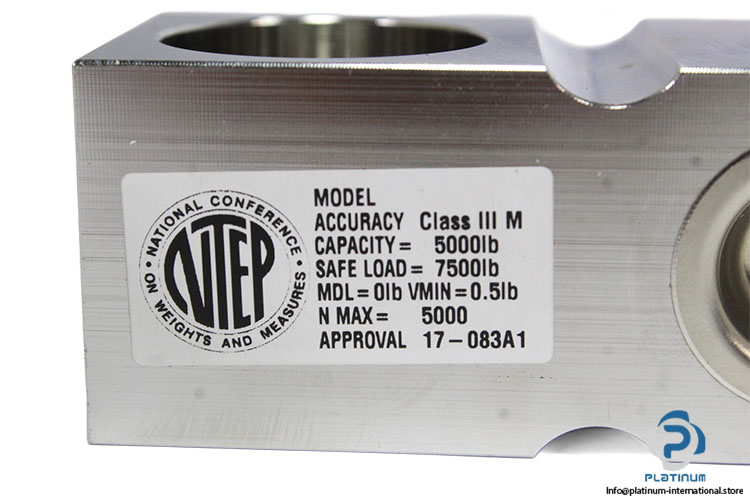

| Certification Body | National Conference on Weights and Measures (NTEP) |
| Accuracy Class | Class III M (intended for multiple load cell applications like floor scales) |
| Safe Overload Limit | 7,500 lbs |
| Minimum Dead Load (MDL) | 0 lbs |
| Minimum Verification Scale Interval | 0.5 lbs |
| Maximum No. of Scale Divisions | 5,000 divisions |
| NTEP Certificate of Conformance | 17-083A1 |

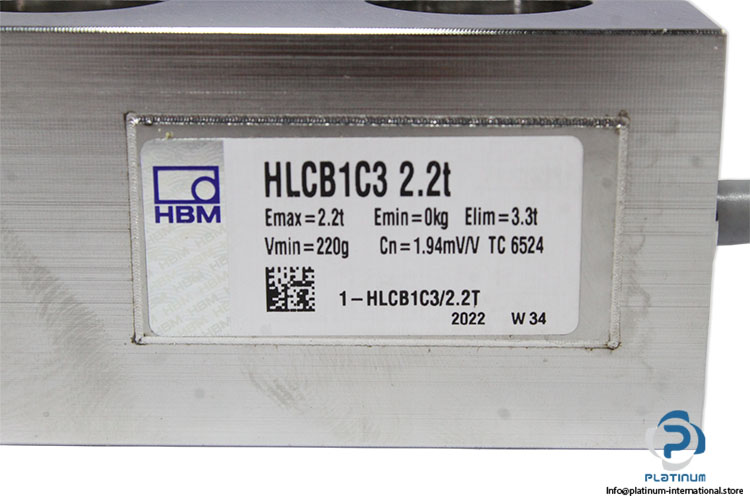

| Maximum capacity (Emax) | 2.2t |
| Minimum capacity (Emin) | 0 kg |
| Safe load limit (El) | 3.3t |
| load cell verification interval value | min. 220 g |
| Sensitivity | min. 1.94mV/V |
| Test certificate identifier | TC 6524 |
| Condition | New |
| Stock Key | COn-003 |
| SKU | 1097742 |
| Weight | 1,85 |
