Hiwin EGW15SA Linear Guideway Block
Nuevo
En stock24 unidadesListo para enviar
55,28$
Bloque de guía lineal compacto de Hiwin, tamaño 15 mm, tipo brida montada en la parte superior, soporta carga media con alta precisión y estabilidad para aplicaciones de movimiento lineal industrial.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

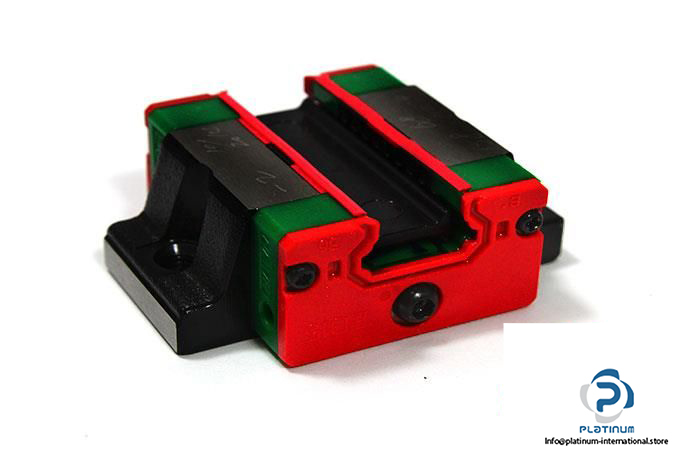

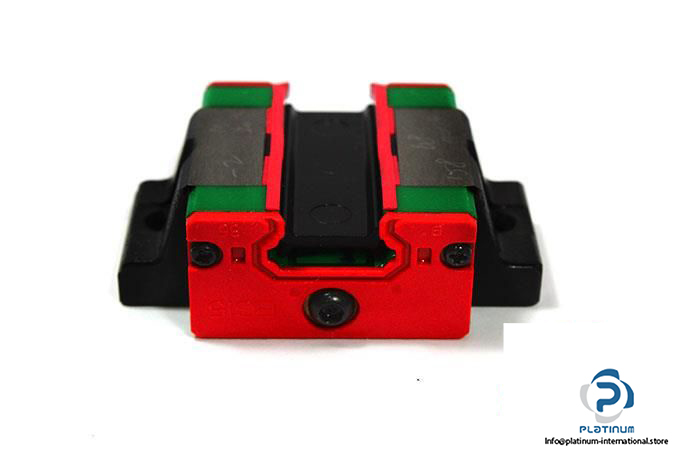

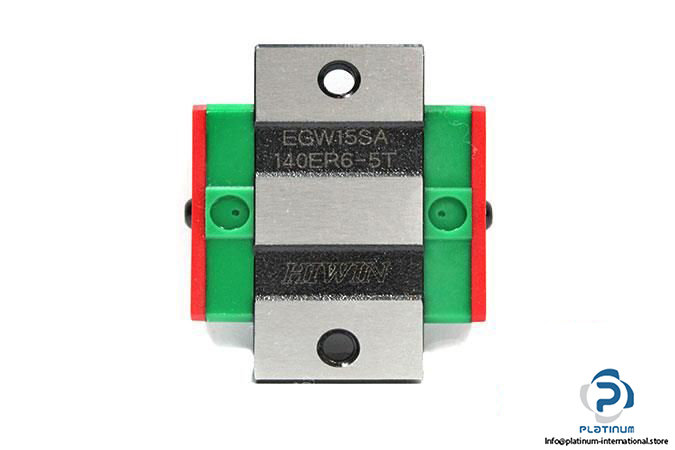

HIWIN EGW15SA 140ER6-5T LINEAR GUIDEWAY BLOCK
The Hiwin EGW15SA 140ER6-5T is a precision-engineered linear guideway block designed for medium load applications. With a compact 15 mm rail size and top mounting flange type, it ensures smooth linear motion and high rigidity, suitable for CNC systems, industrial automation, and machinery assembly.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW15SA 140ER6-5T
Size: 15 mm
| Block Height | 19.5 mm |
| System Height | 24 mm |
| Block Width (W) | 52 mm |
| Block Length (L) | 40.1 mm |
| Distance Between Holes | 41 mm |
| Thread Size | M3 × 16 |
| Rail Width | 15 mm |
| Rail Height | 12.5 mm |
| Block Type | Flange |
| Load Type | Medium Load |
| Block Mounting Type | From Top |
| Basic Dynamic Load Rating | 5.35 kN |
| Basic Static Load Rating | 9.40 kN |
