Hiwin EGW30CA Linear Guideway Block
Nuevo
En stock27 unidadesListo para enviar
98,59$
Bloque de guía lineal Hiwin para cargas pesadas con diseño de brida y tamaño de 30 mm, que ofrece alta durabilidad y capacidad de carga, ideal para sistemas de movimiento lineal precisos.
23700N3047460NBlockDynamicEGW30CAEGW30CCFlangeGuideGuidewayHeavyHiwinLinearLoadM6mmmountReplacementStaticThreadTop
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

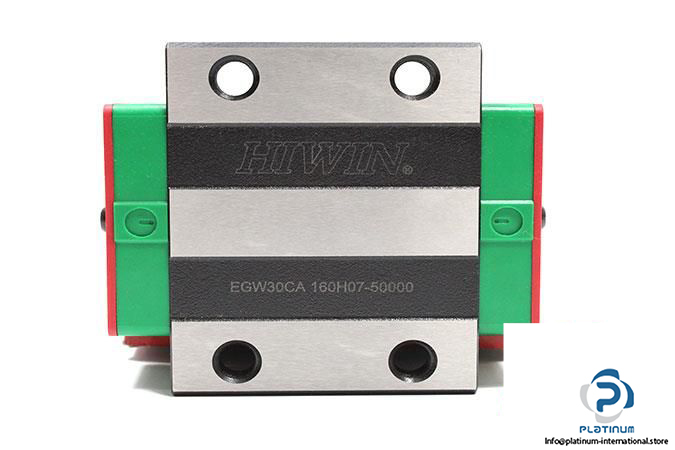

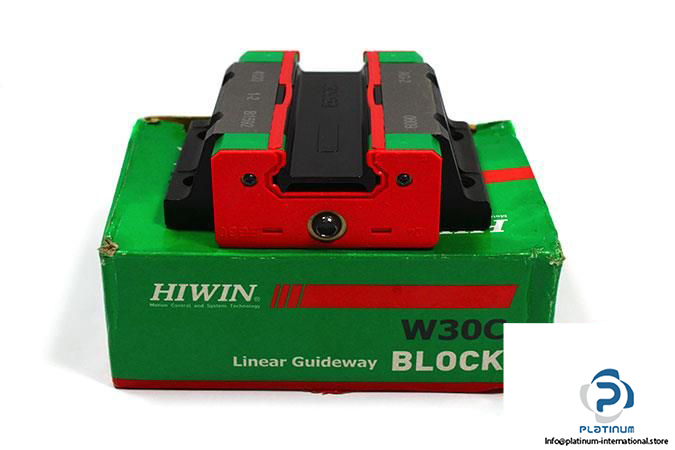

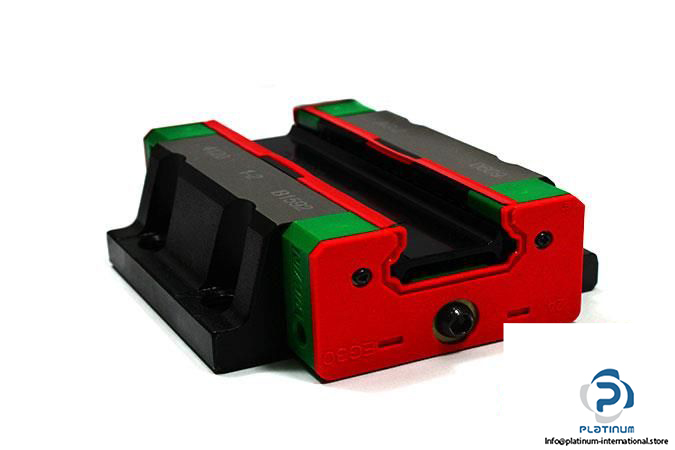

HIWIN EGW30CA LINEAR GUIDEWAY BLOCK
This heavy-duty linear guideway block by Hiwin is engineered for high-load, high-precision applications. With a robust flange design and large load capacities, it is ideal for demanding linear motion systems. The EGW30CA model has been replaced with the updated EGW30CC type for enhanced performance.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW30CA 160H07-50000
Replaced with: HIWIN EGW30CC LINEAR GUIDEWAY BLOCK
| Size | 30 mm |
| Block Height | 32 mm |
| System Height | 42 mm |
| Block Width (W) | 90 mm |
| Block Length (L) | 98.1 mm |
| Distances Between Holes | 72 mm, 40 mm |
| Thread Size | M6 × 25 |
| Rail Width | 28 mm |
| Rail Height | 23 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | From Top |
| Basic Dynamic Load Rating | 23700 N |
| Basic Static Load Rating | 47460 N |
