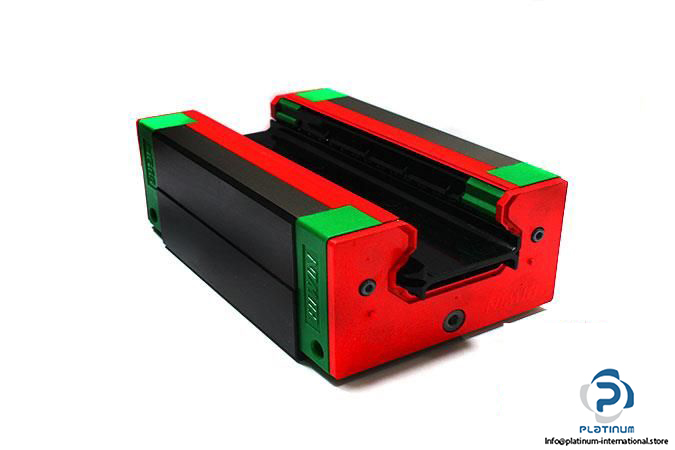

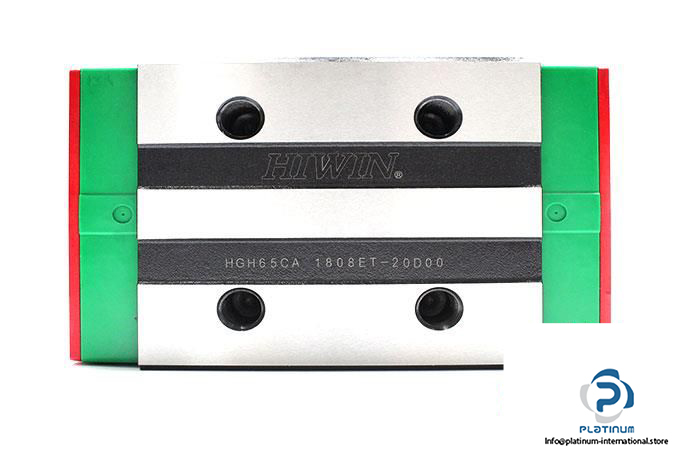

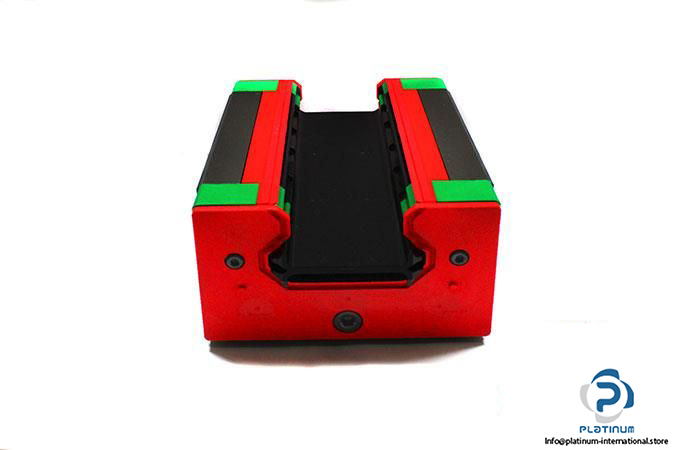

Hiwin HGH65CA Linear Guideway Block
Nuevo
En stock8 unidadesListo para enviar
355,00$
Bloque guía lineal Hiwin HGH65CA 1808T-20D00 bloque cuadrado de la serie HG, diseñado para sistemas de movimiento lineal de carga pesada con configuración de montaje superior y altas capacidades de carga.
65BlockCNCGuideGuidewayHeavyHGHGH65CAHighHiwinIndustrialLinearLoadM16mmMotionmountrailSeriesSquareTop
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
HIWIN HGH65CA 1808T-20D00 LINEAR GUIDEWAY BLOCK
The Hiwin HGH65CA 1808T-20D00 is a high-capacity linear guideway block from the HG Series, designed for demanding applications requiring precision guidance and heavy load support. Featuring a square block design and top mounting configuration, this block ensures optimal rigidity and performance in industrial automation and machinery systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH65CA 1808T-20D00
| Size | 65 mm |
| Block Height | 75 mm |
| System Height | 90 mm |
| Block Width (W) | 126 mm |
| Block Length (L) | 200.2 mm |
| Thread Size | M16 x 50 |
| Distances Between Holes | 76 mm, 70 mm |
| Rail Width | 63 mm |
| Rail Height | 53 mm |
| Block Type | Square |
| Load Type | Heavy Load |
| Block Mounting Type | From Top |
| Series | HG Series; Heavy Load Ball Type Linear Guideway |
| Basic Dynamic Load Rating | 213.2 kN |
| Basic Static Load Rating | 287.48 kN |
