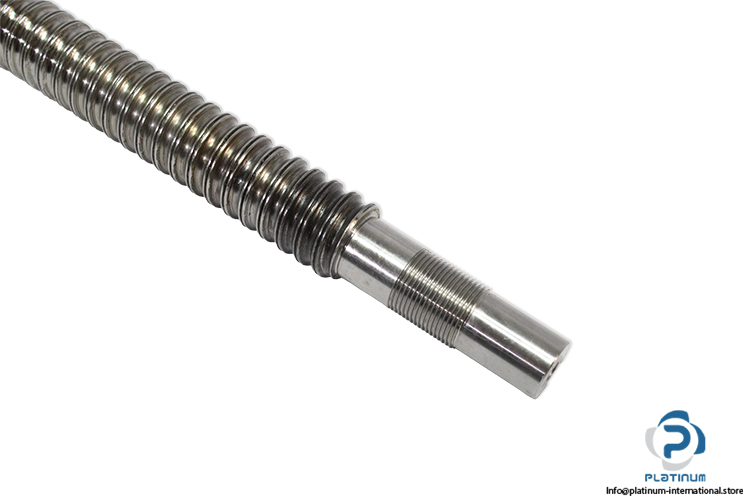

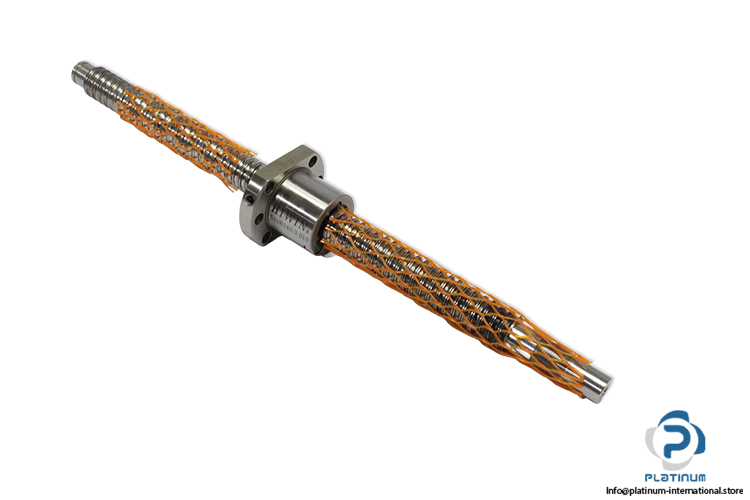

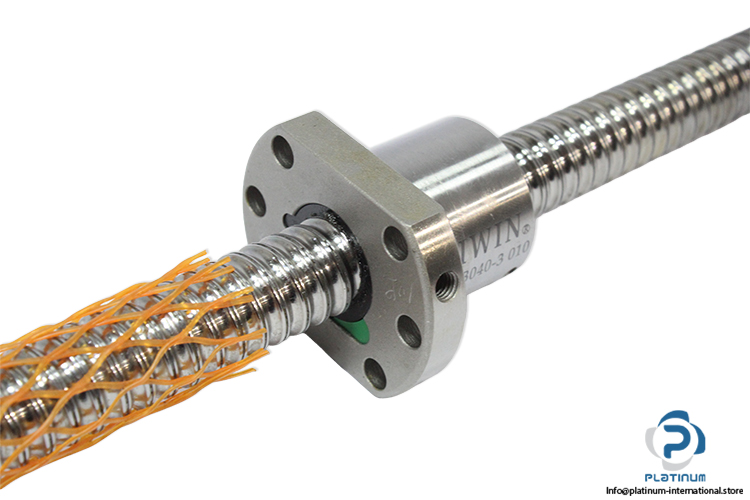

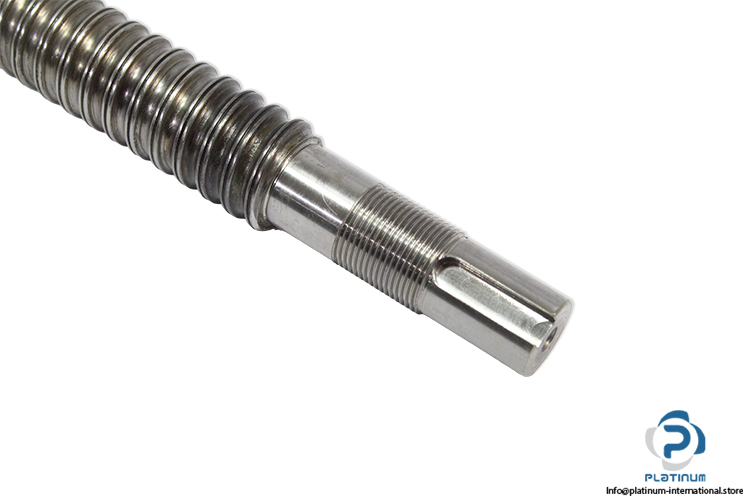

Hiwin R20-5K4-FSC Ball Screw
Nuevo
En stock4 unidadesListo para enviar
Ball Screw HIWIN precision ball screw with C5 accuracy, right-hand thread, and 20 mm nominal diameter, designed for linear motion, CNC machinery, and industrial automation systems.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| MNR | R20-5K4-FSC |

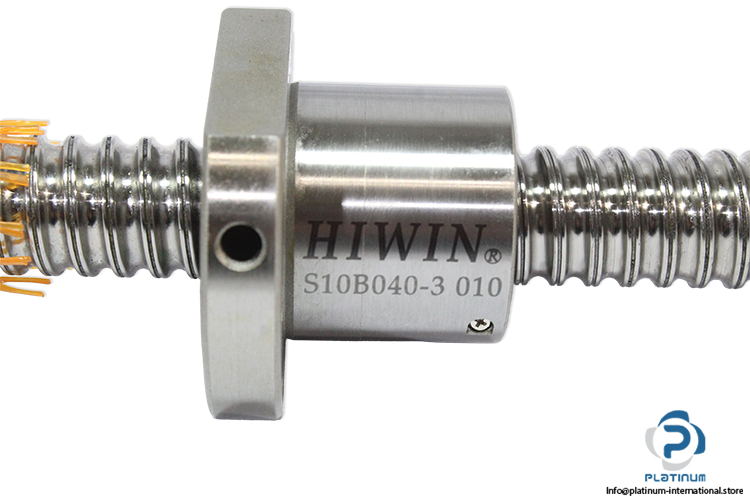

| Code | R20-5K4-FSC-PL-0295-0358-C5-RW-240B.01/S10B040-3 010 |
| Size | 20x5R |
| Nominal Diameter | 20 mm |
| Lead P | 5 |
| Ball Diameter | 3.175 mm |
| Direction of Lead | Right-Hand Thread |
| Nut outer diameter | 36 mm |
| Flange diameter | 58 mm |
| Flange thickness | 10 mm |
| Cutting Flange Width | 44 mm |
| Nut length | 40 mm |
| Threaded length | 295 mm |
| Total screw length | 358 mm |
| Dynamic Load Rating C | 1490 kfg |
| Static Load Rating C0 | 3640 kfg |
| Accuracy | C5 |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1100066 |
| Weight | 0,97 |
