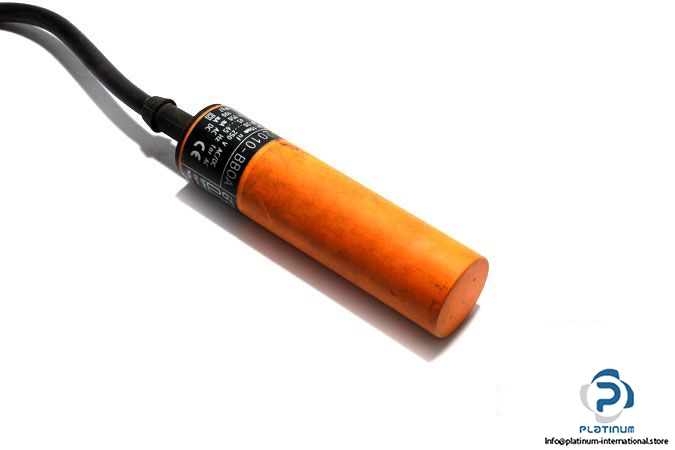

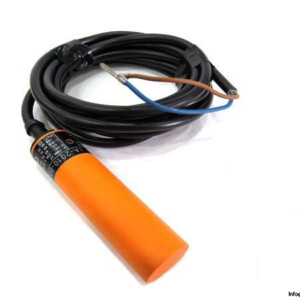

IFM IA0027 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IA0027

MRN: IA-2010-BBOA

Sensing Range: 10 mm

Real Sensing Range: 10 ± 10% mm

Operating Distance: 8.1 mm

Operating Voltage: 20 … 250 V AC/DC

Switching output current (AC, DC): 350 mA AC,100 mA DC

Switching frequency (AC, DC): 25, 70 Hz

Output Function: Normally Closed

Connector type: PVC Cable, 2m

Protection Class: II

Enclosure rating: IP67

Housing: Cylindrical

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 20, 77 mm

Material: PBT

Mounting: Non-flush mountable

Weight: 153 g
