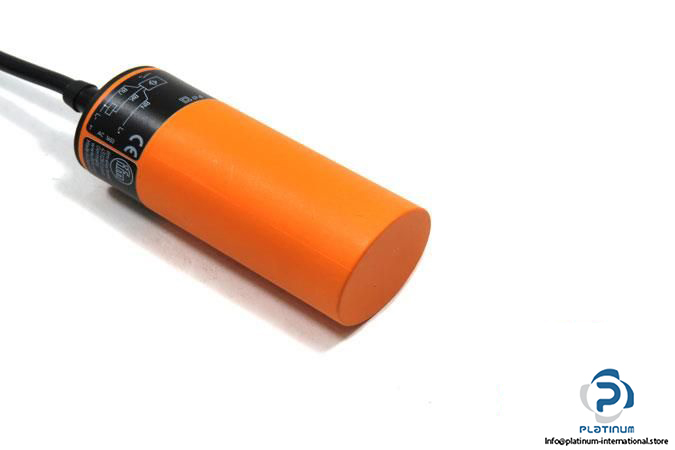

IFM IB5097 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

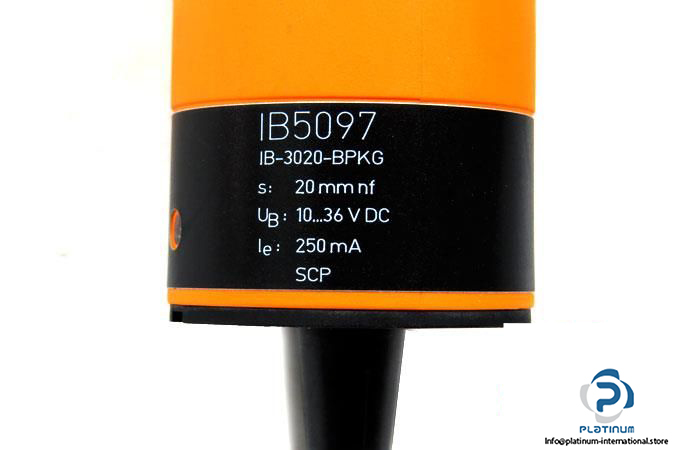

Part No.: IB5097

MRN: IB-3020-BPKG/6M

Sensing Range: 20 mm

Real Sensing Range: 20 ± 10% mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Current consumption: 15 mA (24V)

Switching frequency: 60 Hz

Electrical Design: PNP

Output Function: Normally open

Connector type: PVC Cable, 6 m

Protection Class: II

Enclosure rating: IP67

Housing: Cylindrical

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 34, 82 mm

Material: PBT

Mounting: Non-flush mountable

Weight: 454.5 g

Condition: New
