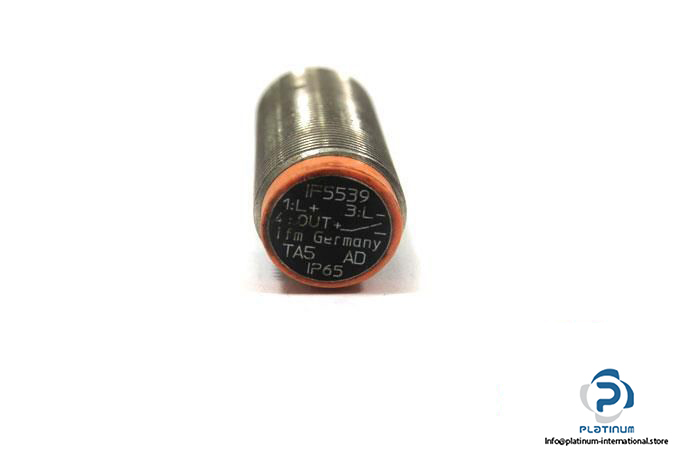

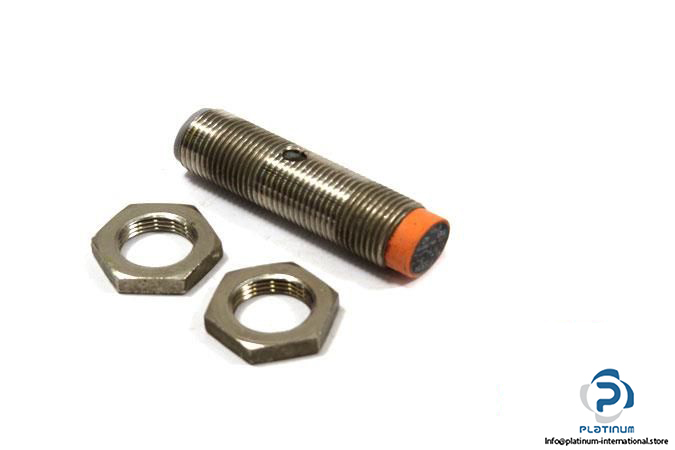

IFM IF5539 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IF5539

MRN: IFB3004-BPKG/US

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10% mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 150 mA DC

Switching frequency: 1500 Hz

Electrical design: PNP

Output Function: Normally open

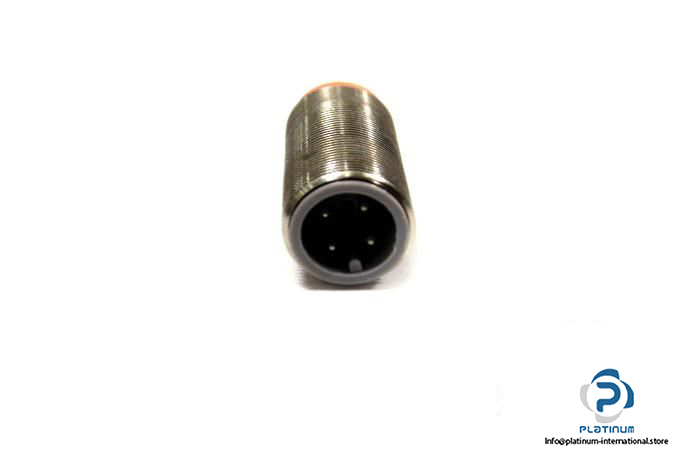

Connector type: M12 Connector

Protection Class: III

Enclosure rating: IP65

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 12, 43 mm

Material: Brass white bronze coated; sensing face: PC

Mounting: Non-flush mountable

Weight: 25.7 g

Condition: Used
